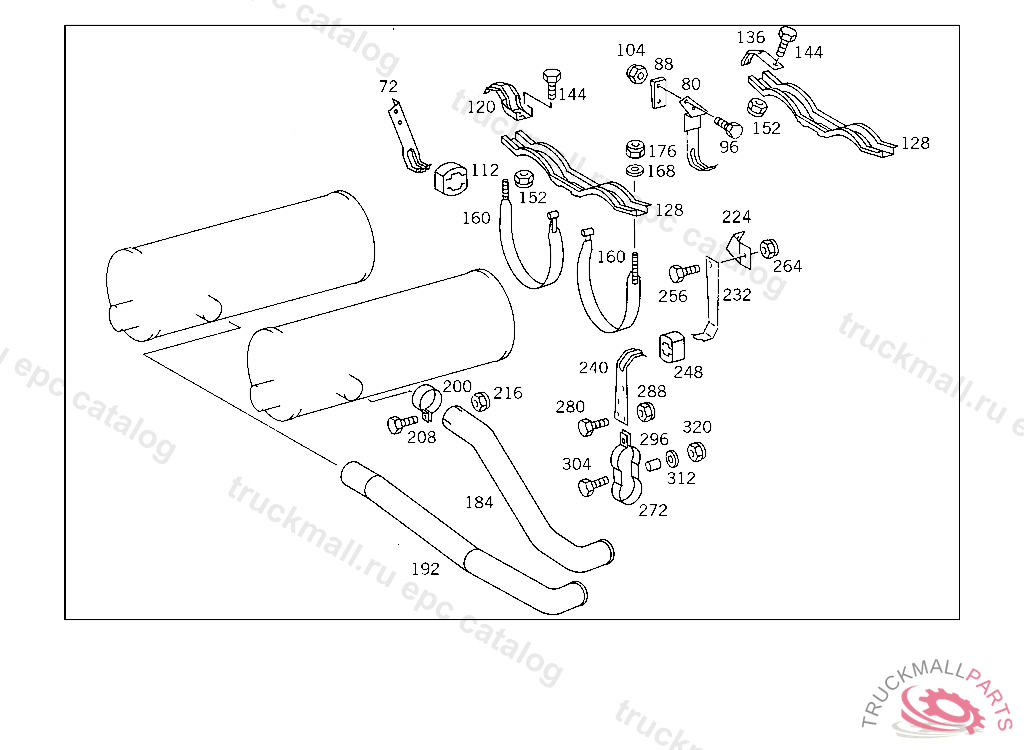

Поз.
Артикул
Описание
72
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
72
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
80
BRACKET LEFT REAR EXHAUST MUFFLER TO FRAME
80
BRACKET EXHAUST PIPE
88
PLATE MUFFLER BRACKET TO FRAME
88
PLATE MUFFLER BRACKET TO FRAME
96
SCREW , Replaced By: N304017010002
96
SCREW BRACKET TO SIDE MEMBER
104
NUT , Replaced By: N910113010000
104
NUT STRAP TO BRACKET
112
DAMPING PAD PARTICLE FILTER
120
BRACKET EXHAUST MUFFLER
128
SUPPORT EXHAUST MUFFLER
136
BRACKET EXHAUST MUFFLER
144
SCREW , Replaced By: N304017008021
144
SCREW PIPE CLAMP
152
NUT , Replaced By: N913004008001
152
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
160
STRAP , Replaced By: A6554900942
160
STRAP PARTICLE FILTER
160
STRAP , Replaced By: A6554900942
168
SPHERICAL WASHER STRAP TO BRACKET
176
NUT , Replaced By: N910113010000
176
NUT STRAP TO BRACKET
184
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
184
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
192
END PIECE EXHAUST MUFFLER,RIGHT
192
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
192
END PIECE EXHAUST MUFFLER,RIGHT
200
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
200
CLAMP , Replaced By: N071555090502
200
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
208
SCREW , Replaced By: N304017008027
208
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
216
NUT , Replaced By: N913004008001
216
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
224
BRACKET TAIL PIPE TO SIDE MEMBER
232
BRACKET TAIL PIPE ON THE RIGHT
240
BRACKET TAIL PIPE ON THE RIGHT
240
BRACKET TAIL PIPE TO APPARATUS SUPPORT
248
DAMPING PAD PARTICLE FILTER
256
SCREW , Replaced By: N304017008034
256
SCREW BRACKET TO CROSS CONNECTION STRUT
256
SCREW , Replaced By: N304017008027
256
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
264
NUT , Replaced By: N913004008001
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
272
CLAMP EXHAUST PIPE TO BRACKET
280
SCREW , Replaced By: N304017010002
280
SCREW BRACKET TO SIDE MEMBER
280
SCREW BRACKET TO SIDE MEMBER
288
NUT , Replaced By: N910113010000
288
NUT STRAP TO BRACKET
288
NUT STRAP TO BRACKET
296
SPACER TUBE EXHAUST PIPE TO BRACKET
304
SCREW , Replaced By: N304014010004
304
SCREW REAR EXHAUST PIPE TO CLAMP
312
WASHER RADIATOR TO RUBBER MOUNTING
320
NUT , Replaced By: N910113010000
320
NUT STRAP TO BRACKET
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
CLAMP , Replaced By: N071555094502
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,LEFT
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
999
BRACKET EXHAUST MUFFLER TO SUPPORT
