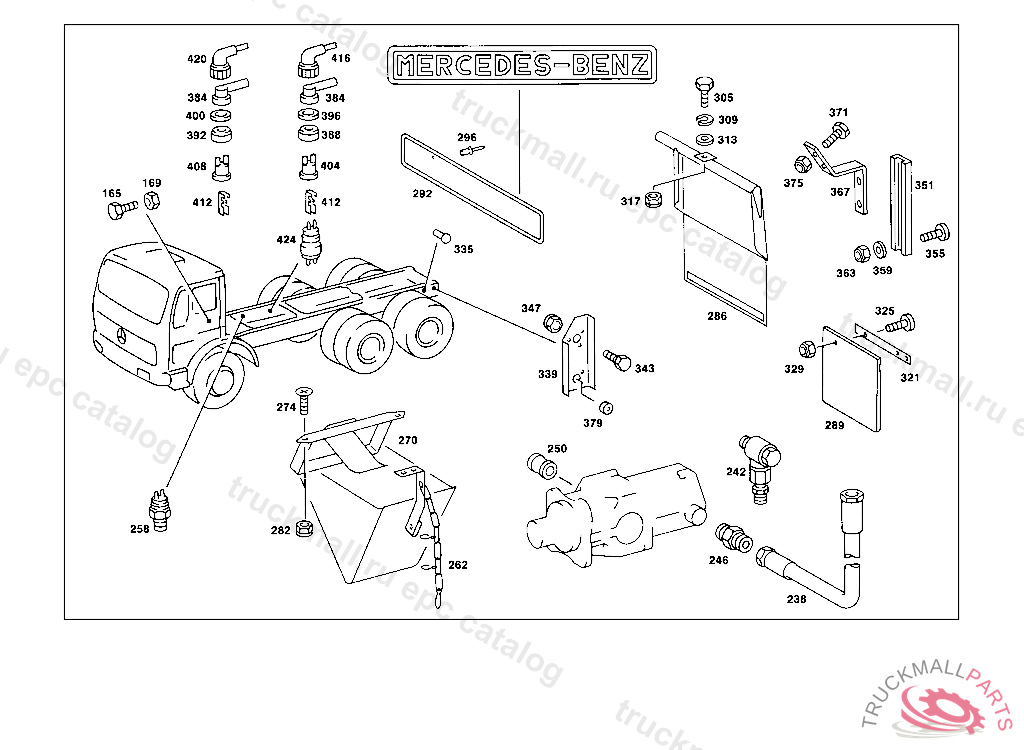

Поз.
Артикул
Описание
165
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
165
SCREW , Replaced By: N308676014020
169
NUT , Replaced By: N910113014001
169
NUT BRACKET TO SIDE MEMBER
238
HOSE HIGH PRESSURE
238
HOSE DELIVERY LINE TO PUMP
238
HOSE DELIVERY LINE TO PUMP,5 452682
242
CONNECTOR LINES TO PUMP AND TO OIL TANK, RESP.
246
FITTING , Replaced By: A0039970972
246
FITTING DELIVERY LINE TO PUMP
246
FITTING DELIVERY LINE TO PUMP
246
FITTING DELIVERY LINE TO PUMP,5 355986
246
FITTING HIGH PRESSURE HOSE M 27X2
246
FITTING LINES TO PUMP AND TO OIL TANK, RESP.,4 3943964 820889
246
FITTING DELIVERY LINE TO PUMP
250
CONNECTOR SUCTION LINE
250
CONNECTOR LINES TO PUMP AND TO OIL TANK, RESP.
250
FITTING , Replaced By: A0019909478
258
SWITCH DUMPER VALVE
262
BRACKET FOR CHOCK
262
BRACKET , Replaced By: A3355800290
270
CLAMP CHOCK FIXTURE
274
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
274
SCREW BRACKET AND CLAMP TO TROUGH-TYPE DUMPING PLATFORM M 8X25
282
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
282
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
282
NUT , Replaced By: N913004008001
286
MUD APRON , Replaced By: A6208800008
286
MUD APRON , Replaced By: A6208800108
286
MUD APRON , Replaced By: A3878802108
286
MUD APRON , Replaced By: A3878802208
286
MUD APRON , Replaced By: A3938800108
286
MUD APRON , Replaced By: A3938800208
286
MUD APRON LEFT
286
MUD APRON , Replaced By: A3878802108
286
MUD APRON RIGHT
286
MUD APRON LEFT
286
MUD APRON , Replaced By: A3878802208
286
MUD APRON RIGHT
289
SPLASH GUARD
292
NAME PLATE
296
RIVET EMBLEM TO MUD APRON
305
SCREW BRACKET TO TRANSMISSION
305
SCREW , Replaced By: N308676012038
305
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
309
LOCK WASHER FITTING TO BRACKET
313
WASHER
317
NUT STRAP TO SUPPORT
321
PLATE SPLASH GUARD
325
SCREW HOOK TO BRACKET
325
SCREW , Replaced By: N007985005175
329
NUT TWO-WAY VALVE TO BRACKET
335
RIVET FRAME TRUSS TO SIDE MEMBER
339
BRACKET RIGHT
339
BRACKET LEFT
343
SCREW , Replaced By: N304017010002
343
SCREW BRACKET TO SIDE MEMBER
347
NUT , Replaced By: N910113010000
347
NUT STRAP TO BRACKET
351
BRACKET REFLECTOR
355
SCREW LICENSE PLATE TO BRACKET
355
SCREW , Replaced By: N304017006020
359
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
359
WASHER COMPRESSED AIR LINE TO BRACKET
363
NUT , Replaced By: N913004006001
363
NUT PUMP TO BRACKET
367
BRACKET MUD APRON
371
SCREW COVER PLATE TO BRACKET
375
NUT PUMP TO BRACKET
375
NUT , Replaced By: N913004006001
379
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
384
BOOT CABLE HARNESS EXTENSION
388
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
392
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
396
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 27X1,5 129167
400
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
404
PLUG SOCKET A B S SENSOR CABLE SCREW-CONNECTION
408
PLUG SOCKET PRESSURE SWITCH SCREW-CONNECTION TO M 24X1
412
ROUND PIN BUSHING REAR "ENR" SOLENOID VALVE BRANCH-OFF 0.75-2.5MM2
416
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 27X1
416
PLUG SOCKET , Replaced By: A3805402281
420
PLUG SOCKET , Replaced By: A3805402181
420
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
424
PLUG
999
BRACKET REFLECTOR
999
SWITCH , Replaced By: A0005455909
999
PLATE , Replaced By: A0006190211
999
SCREW REFLECTOR BRACKET TO DUMPER PLATFORM SUBSTRUCTURE
999
CYLINDER TROUGH-TYPE DUMPING PLATFORM, DUMPER PLATFORM AND COMPONENTS THEREOF ARE TO BE ORDERED FROM THE PLATFORM MANUFACTURERS,MESSRS. F.X. MEILLER,MUNICH
999
CYLINDER TROUGH-TYPE DUMPING PLATFORM, DUMPER PLATFORM AND COMPONENTS THEREOF ARE TO BE ORDERED FROM THE PLATFORM MANUFACTURERS,MESSRS. F.X. MEILLER,MUNICH5 515436
999
HOSE LINES TO PUMP AND TO OIL TANK, RESP. 600 MM
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBER UP TO CHASSIS 4 231000, Replaced By: A3828900079
999
CLAMP AT FRAME,5 521212
999
SHACKLE AUXILIARY FRAME MOUNTING
999
SHIM MOUNTING TO CONSOLE
999
ELECTRIC CABLE IDLING SWITCH BRANCH-OFF EXTENSION
999
SHAFT AUXILIARY FRAME TO REAR DUMPER PLATFORM SUBSTRUCTURE,4 394395
999
CLAMP SPARE WHEEL CARRIER
999
CONSOLE , Replaced By: A3958910131
999
BUSHING BEARING BRACKET TO FRAME, NOT USED
999
BEARING BRACKET AUXILIARY FRAME, NOT USED
999
SUBSTRUCTURE (AUXILIARY FRAME), DUMPER PLATFORM AND COMPONENTS THEREOF ARE TO BE ORDERED FROM THE PLATFORM MANUFACTURERS,MESSRS. F.X. MEILLER,MUNICH
999
PIN STABILIZER MOUNTING
999
BRACKET PIN
999
CLAMP AUXILIARY FRAME MOUNTING
999
CONSOLE FRAME
999
SET COLLAR DUMPER SHAFT, PARTS TO BEORDERED FROM SUPPLIER,MESSRS F X MEILLER,MUNICH
999
GUIDE SIGN TAIL BOARD
999
BASE CLAMP TO FRAME,5 521213
999
CLAMP AUXILIARY FRAME MOUNTING 445 MM
999
BUSHING CONSOLE TO CONSOLE
999
CONSOLE AUXILIARY FRAME TO FRAME,5 515436
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW FRONT AXLE II SHOCK ABSORBER,BOTTOM
999
CLAMPING SLEEVE DUMPER SHAFT 16X120 MM
999
DISC SPRING CONSOLE TO CONSOLE
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
