Mercedes A6175401507 - Жгут эл.-проводки

3328/K,3528/K,3535/K 625.029

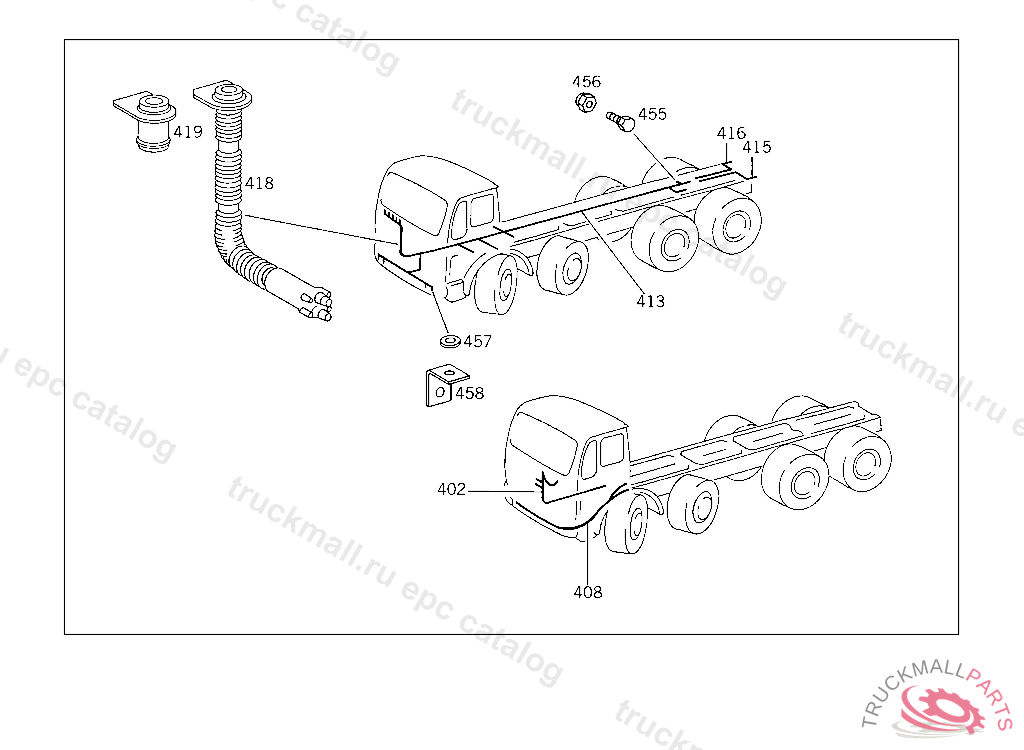

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS IL. 7

Поз.
Артикул
Описание
408
A3875409737
ELECTRIC CABLE FOR FRAME MOUNTED CABLE HARNESS LEADING TO ENGINE
413
A6255401408
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR
413
A6255401108
CABLE HARNESS , Replaced By: A6255401408
415
A6175400207
CABLE HARNESS , Replaced By: A6175401507
415
A6175401507
CABLE HARNESS TAIL LAMP
416
A6215402207
CABLE HARNESS RIGHT TAIL LAMP
418
A6205460230
INSULATING HOSE CABLE PASSAGE
419
A0005450155
GUIDE CABLE CONDUIT
457
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
457
N009021008205
WASHER , Replaced By: N009021008213
999
A6209970081
GROMMET BATTERY CASE
999
A6175450000
MARKING STRIP FUSE BOX
999
A6085450045
BOOT
999
A3879970481
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
A3149970481
GROMMET BATTERY CASE
999
A0005462343
BRACKET , Replaced By: A0005462243
999
A0005454919
SOCKETTO 003 542 46 16,99 16
999
A0005430140
PLUG HOUSING 4-POLE, MODULE "V"
999
A0005423394
DIAGRAM PAPER SET100 PIECES
