Mercedes A0009872627 - Трубка пластиковая 6 X 4

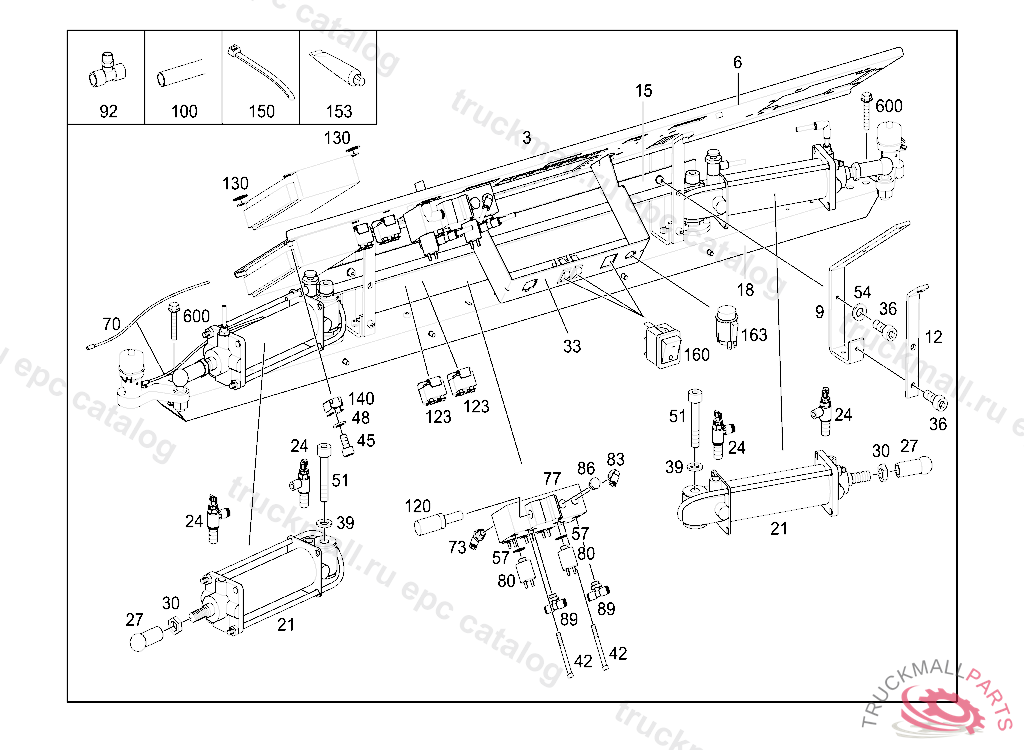

CITARO 12M 3-TUERER 628.032

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 3

Поз.
Артикул
Описание
3
A6287604137
SUPPORTING PLATE
3
A6287604037
SUPPORTING PLATE
6
A6287280018
FRAME
9
A6287280212
ANGLE
12
A6287280112
ANGLE
15
A6287280012
ANGLE
18
A6287200023
ANGLE
21
A0007602805
LOCK CYLINDER
24
A0007608878
THROTTLE VALVE
27
N071805019202
BALL SOCKET
30
N000000003418
HEXAGON NUT
33
A6287280114
BRACKET
36
A0079903504
SCREWM6X16MM
39
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
42
A0079903904
SCREWM5X50
45
A0079903704
SCREWM5X10MM
48
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
51
A0079904004
SCREW
54
N000000003737
WASHER
57
N007603012100
SEAL RING , NOT USED
70
A0007631561
HOSE , TO BE ADAPTED DURING ASSEMBLY
73
A0039904171
ELBOW FITTING
77
A0007607078
VALVE
80
A0005452710
SWITCH (DIAPHRAGM) 4.0 BAR
83
A0049900071
ELBOW FITTING
86
A0009970402
PLUG
89
A0049900670
T-FITTING
92
A0049907170
T-FITTING
100
A0007631661
HOSE GREEN, TO BE ADAPTED DURING ASSEMBLY
100
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
100
A0007631761
HOSE RED, ORDER BY THE METER
100
A0009875327
PLASTIC PIPE BLUE, ORDER BY THE METER
120
A0007630964
DAMPER
123
A0008214771
PRESSURE WAVE SWITCH , EXHAUST STOCK OF OLD PART NUMBER FIRST
123
A0008213371
PRESSURE WAVE SWITCH PRESSURE WAVE CONTROL, Replaced By: A0008214771
130
A0009970942
SEAL WASHER
140
A0009904056
NUT
150
A0029976890
LOOM TIE , Replaced By: A0019978390
153
A0009892851
MULTI-PURPOSE GREASE
160
A6277630010
WORKSHOP BUTTON(S)
160
A6277630110
SWITCH,AUTOMATIC. SWITCH
160
A0118201210
SWITCH. ROCKER SWITCH DOOR DRIVE MECHANISM 0/1
163
A3575450014
SWITCH TEST BUTTON
600
N910106008010
SCREW
