Mercedes A0015710201 - PUMPE

CITARO 12M 3-TUERER 628.032

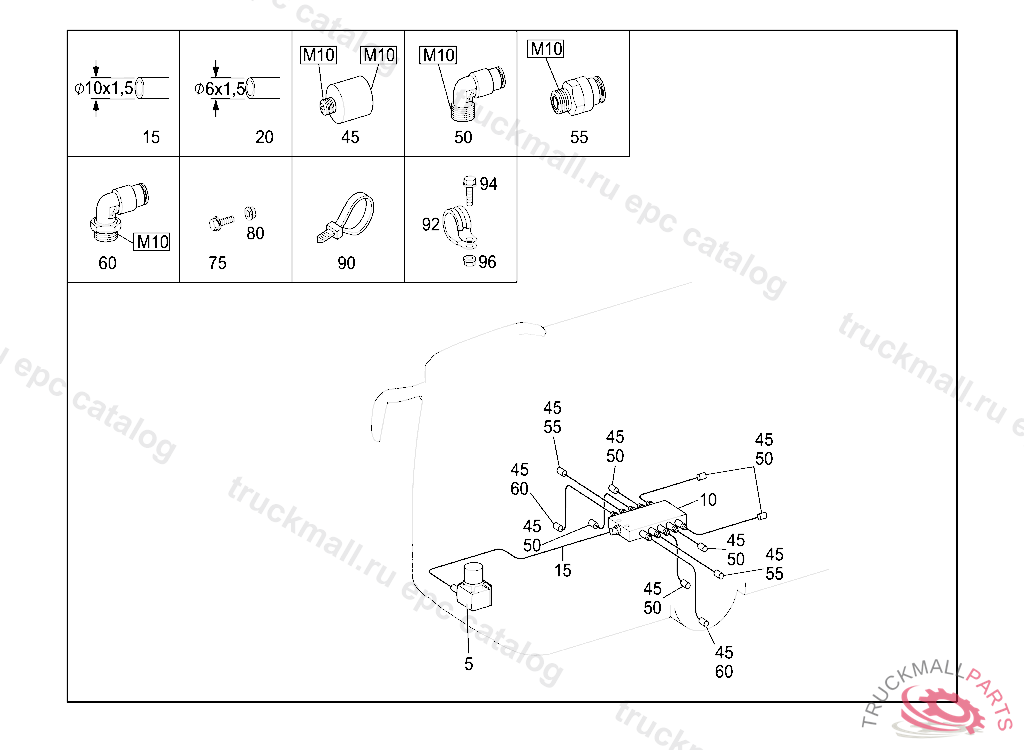

57 CENTRAL LUBRICATION - 001 CENTRAL LUBRICATION IL. 1

Поз.
Артикул
Описание
5
A0015710201
PUMPKFA1-S2+924
10
A0045731320
15
A0005732836
HOSE FROM DISTRIBUTOR ON RING MOUNT TO DISTRIBUTOR ON FRONT AXLE 9500 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
20
A0009970479
PLASTIC PIPE6X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
45
A0005732032
CONNECTOR LINE CONNECTION
50
A0059970989
COUPLING ELBOW FITTING M 10X1
55
A0005735632
CONNECTORM 10X1
60
A0019973673
SWIVEL FITTINGM10X1
75
N910105006012
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
80
N913023008003
NUT HORN TO BRACKET M8
80
N913023006002
NUT BRACKET TO FIRE WALL
90
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
92
N000000007509
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
94
N910105006008
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
96
N913023006002
NUT BRACKET TO FIRE WALL
