Mercedes N007603 012102 - ШАЙБА МЕТАЛЛИЧЕСКАЯ

CITARO 12M 3-TUERER 628.032

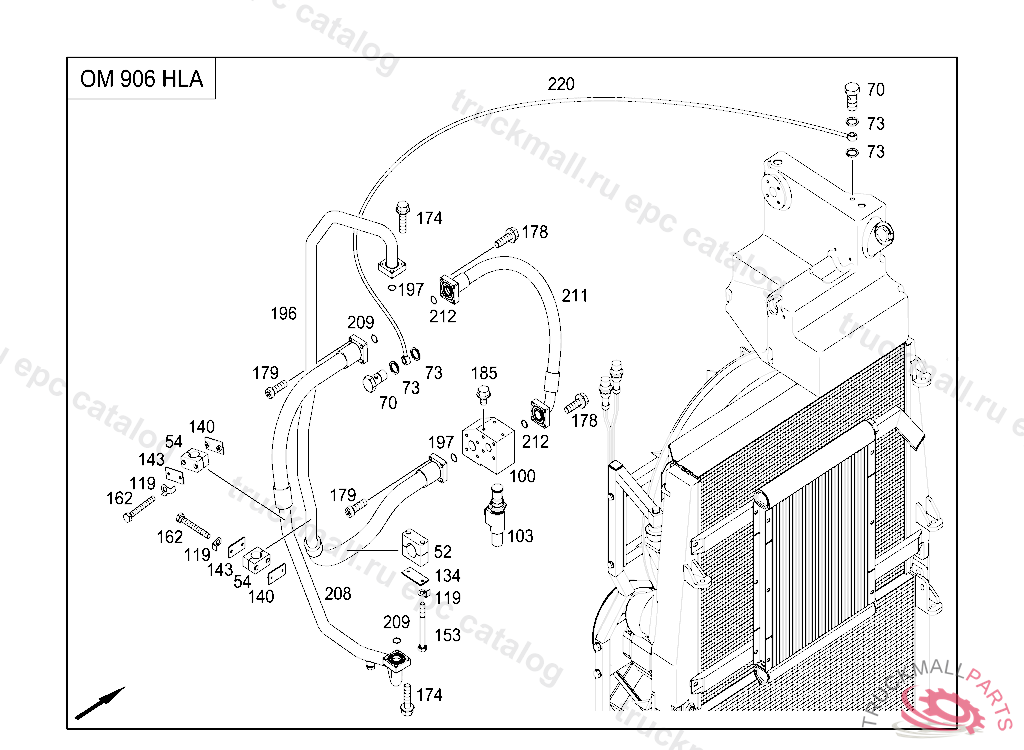

50 RADIATOR - 260 EXPANSION TANK

Поз.
Артикул
Описание
52
A0005531386
RUBBER MOUNTING
54
A0005531086
RUBBER MOUNTING MOUNTING FOR PRESSURE AND RETURN LINE 28MM
70
N915036008101
BANJO BOLT. HOLLOW SCREW
73
N007603012102
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
100
A6285500455
VALVE
103
A0005508455
VALVE
119
A0005530373
LOCK
134
A0005533841
PLATE
140
A0005534441
TRAY
143
A0005534541
PLATE30MM
153
N304014006001
SCREW PLATE TO VALVE M 6X60
162
N304017006028
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
174
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
178
N910105008039
SCREW , Replaced By: N910143008002
179
A0039909212
SCREW GRIP RAIL MOUNTING M8X25 TX45
185
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
196
A6285502456
PIPE LINE OIL RETURN
197
A6285510190
SEAL BLEED CONNECTION TO RESERVOIR 32X2MM
208
A6285505056
PIPE LINE OIL RETURN
209
A6285510190
SEAL BLEED CONNECTION TO RESERVOIR 32X2MM
211
A6285502256
PIPE LINE ON DELIVERY SIDE
212
A6285510190
SEAL BLEED CONNECTION TO RESERVOIR 32X2MM
220
A6285504956
PIPE LINE FUEL LEAK
