Главная
›
Mercedes
›
BUS
›
O 530 N3 EURO 3
›
628.050
›
47 FUEL SYSTEM
›

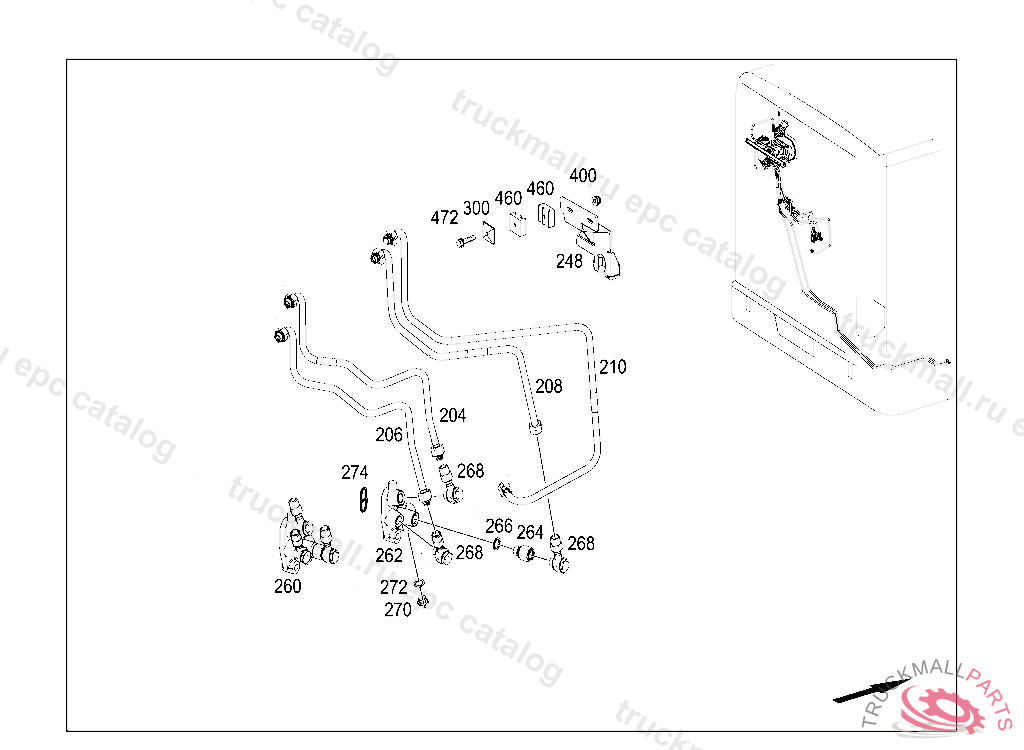

310 ENGINE COMPARTMENT FUEL LINE,BUCHAREST IL. 2
Mercedes A6284767536 - Halter
O 530 N3 EURO 3 628.050
47 FUEL SYSTEM - 310 ENGINE COMPARTMENT FUEL LINE,BUCHAREST IL. 2
Поз.
Артикул
Описание
204
A6284709668
LINE
206
A6284709768
LINE
208
A6284709868
LINE RETURN LINE TO ENGINE
210
A6284709968
LINE AT ENGINE
248
A6284703881
BRACKET AT ENGINE
248
A6284767536
BRACKET AT ENGINE, Replaced By: A6284703881
260
A9060700230
INTERMEDIATE PIECE AT ENGINE
262
A9060920241
INTERMEDIATE PIECE
264
A0089975172
FITTING ,*0591097
266
N000000001070
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
268
A5410980557
VALVE ON INTAKE RADIATOR-CONTROL MODULE, FROM ENG.559827
270
N000000005439
SCREW PLUG, FILLINGM14X1,5
270
N007604014110
SCREW PLUG FUEL TANK
272
N000000001069
SEALING RING
274
A0020941580
GASKET
300
A0009950403
COVER PLATE34X30 MM
400
N913023006002
NUT BRACKET TO FIRE WALL
460
A0009955102
DOUBLE PIPE CLAMP. CLAMP36X26X30 MM
472
N910105006006
SCREW BRACKET AND CLAMP M6X20
472
N910105006009
SCREW BATTERY CABLE TO BRACKET M6X45
