Mercedes
›
BUS
›
CITARO G BLUETEC-HYBRID
›
628.293
›
32 SPRINGS AND SUSPENSION
›

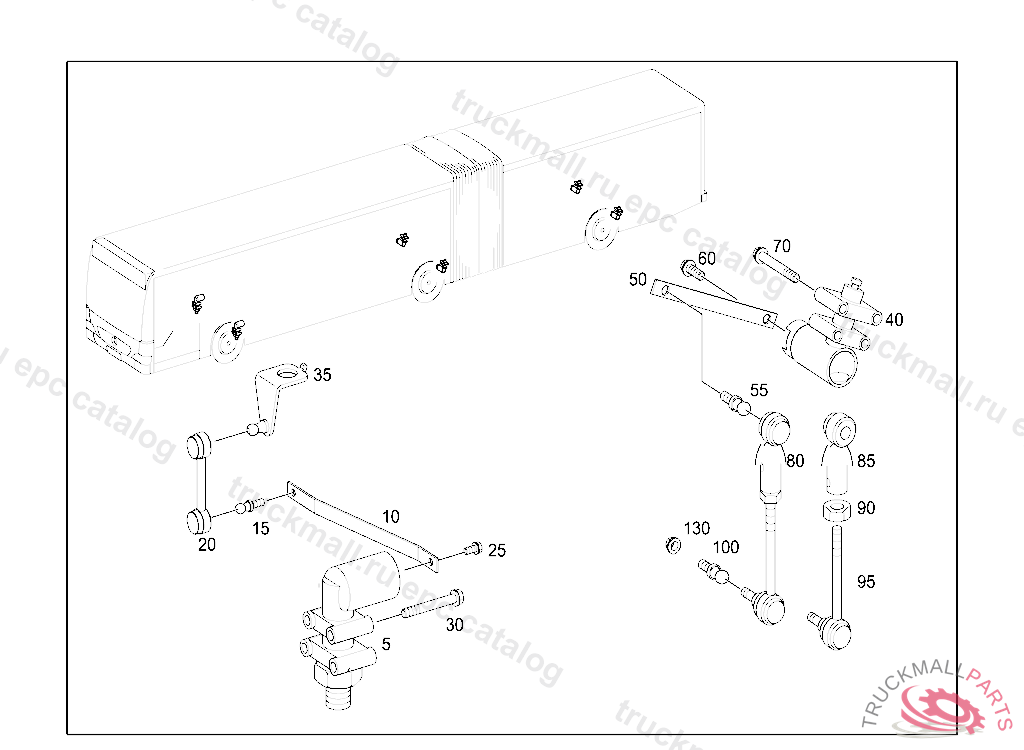

060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 1
Mercedes N304032008006 - ГАЙКА М8
CITARO G BLUETEC-HYBRID 628.293
32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 1
Поз.
Артикул
Описание
5
A0015420018
TRAVEL SENSOR SELF-LEVELLING DEVICE
10
A6283200127
LEVER FRONT RIGHT
15
N071803013208
BALL PIVOT BOTTOM B13X5 MM
20
A6283200489
ROD
25
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
30
N910143008019
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
35
A6283200943
BRACKET
40
A0015420018
TRAVEL SENSOR SELF-LEVELLING DEVICE
50
A6283200027
LEVER LEVER TO TRAVEL SENSOR
55
N071803013208
BALL PIVOT BOTTOM B13X5 MM
60
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
70
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
80
A3573200289
ROD AIR SPRING VALVE
85
A0009912522
BALL SOCKET , Replaced By: A3579910622
85
A3579910622
BALL SOCKET BRAKE POWER REGULATOR CONTROL,5 574483
90
N304032008006
NUT
95
A3579910122
BALL SOCKET R.H. THREAD 255 MM
100
N071803013102
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
130
N913023008002
NUT ENGINE MOUNTING M8
