Mercedes A6288220740 - ABDECKUNG

CITARO G BLUETEC-HYBRID 628.293

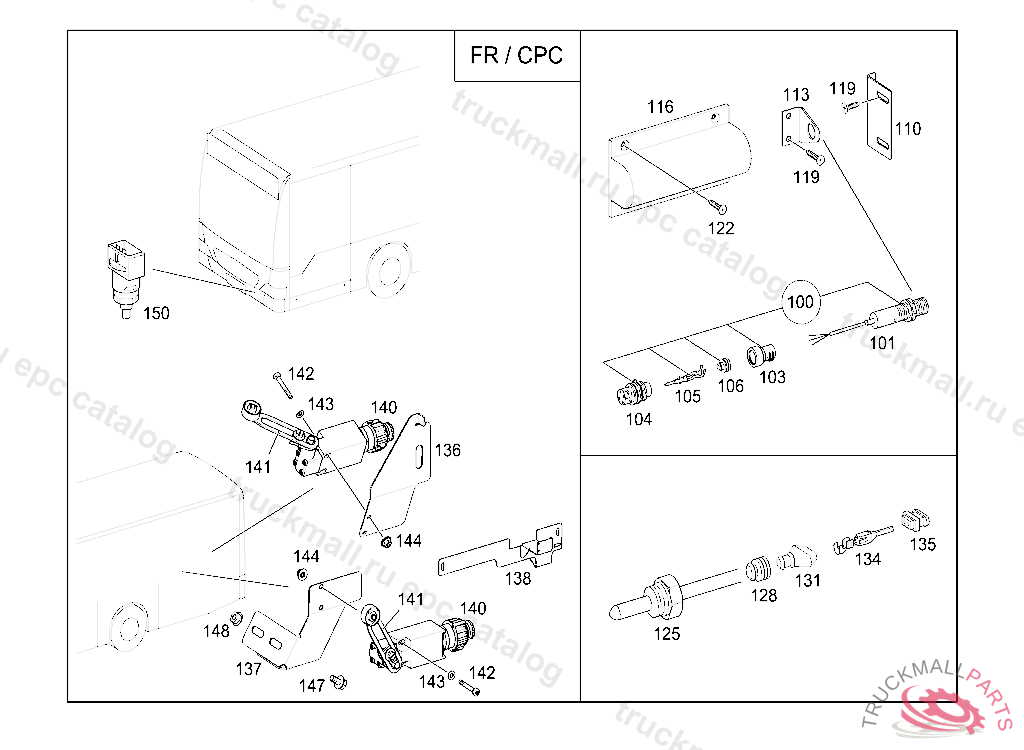

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
100
A0025403045
SWITCH AT DRIVER'S DOOR
101
A0025402945
PROXIMITY SWITCH MAINTENANCE FLAP
103
A0015460135
BOOT 180 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
104
A0335455528
PLUG HOUSING PRESSURE SENSOR
105
A0355454728
CONTACT PIN
106
A0005457280
WIRE SEAL GREY 0.5-1.0 MM2
110
A6288220611
CONTACT PLATE
113
A6288220312
ATTACHMENT ANGLE BRACKET
116
A6288220740
COVER
119
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
122
N000000000832
TAPPING SCREW3,5 X 13
125
A0078200710
128
A0005452839
WIRE SEAL
131
A0005458583
CAP. BOOT ,126372
134
A0355458228
FLAT PLUG2.8 , 0.5 - 1.0
135
A0305454428
PLUG HOUSING. PLUG BIPOLAR
136
A6285451848
137
A6285451948
138
A6285453148
140
A0065453414
LIMIT SWITCH DECLUTCHING START UNIT
141
A0005400684
LEVER
142
A0039908112
SCREWM4X30
142
N000000002590
HEXALOBULAR BOLT. SCREW DECLUTCHING START SWITCH TO BRACKET
142
N000000003882
SCREWM4X40
143
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
144
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
147
N910105006002
HEXAGON HEAD BOLT
148
N910105006001
HEXAGON HEAD BOLT , Replaced By: N910105006024
150
A0115429617
SENDER UNIT OUTBOARD TEMPERATURE FEELER,126372
