Главная
›
Mercedes
›
BUS
›
CITARO G BLUETEC-HYBRID
›
628.293
›
72 DOORS
›

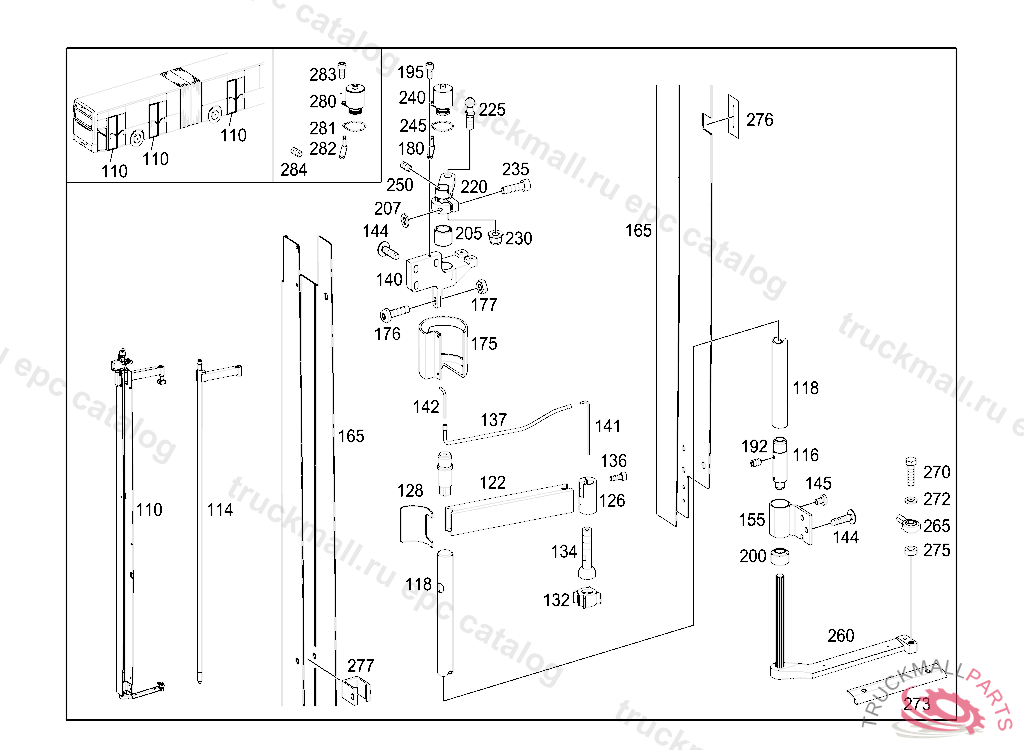

083 SWING-IN DOOR,FRONT IL. 3
Mercedes N304032004002 - Гайка
CITARO G BLUETEC-HYBRID 628.293
72 DOORS - 083 SWING-IN DOOR,FRONT IL. 3
Поз.
Артикул
Описание
110
A6287600064
PILLAR
114
A6287600264
PILLAR LEFT
116
A6287630369
TUBE
118
A6287630569
TUBE
122
A6287630337
SUPPORTING ARM LEFT
126
A6287660969
BRACKET LEFT
128
A6287660125
ESCUTCHEON
132
A0007661511
ESCUTCHEON
134
A6287660036
MOUNTING
136
A0079903504
SCREWM6X16MM
137
A0007631561
HOSE , TO BE ADAPTED DURING ASSEMBLY
140
A6287630208
BEARING TOP, ORDER ADDITIONALLY:A6289920203
141
A6287630437
SUPPORTING ARM TOP
142
A6287630037
SUPPORTING ARM TOP
144
A6289900029
SCREW
145
N000000005743
HEXALOBULAR BOLT
155
A6287630020
BEARING HOUSING
165
A6287630308
COVERING
175
A6287630008
COVERING
176
A0029901405
STUD
176
N000000001552
HEXALOBULAR BOLT MOUNTING PARTS M4X16
177
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
180
A6287600128
BRACKET
192
A0009901315
SCREW
195
A0079903404
SCREW
200
A0009924903
BUSHING
205
A6289920203
BUSHING
207
N000125008445
WASHER PUMP TO CONSOLE
220
A6287630137
SUPPORTING ARM
225
N000000003419
SCREW
230
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
235
A0079903304
SCREW
240
A0018204297
POTENTIOMETER
245
A0139972845
SEAL RING
250
A0009901415
SCREW
260
A6287600361
INTERIOR HANDLE ASSEMBLY
265
A0019961245
ARTICULATION PIECE
270
A0009902200
SCREW
272
N000000003737
WASHER
273
A6287600035
DOOR GUIDE
275
A6289920003
BUSHING
276
A6287660719
PLATE
277
A6287660717
MOUNTING
280
A0018204297
POTENTIOMETER
281
A0139972845
SEAL RING
282
A6287600128
BRACKET
283
A0079903404
SCREW
284
A0009901415
SCREW
999
A0039891771
ADHESIVE
