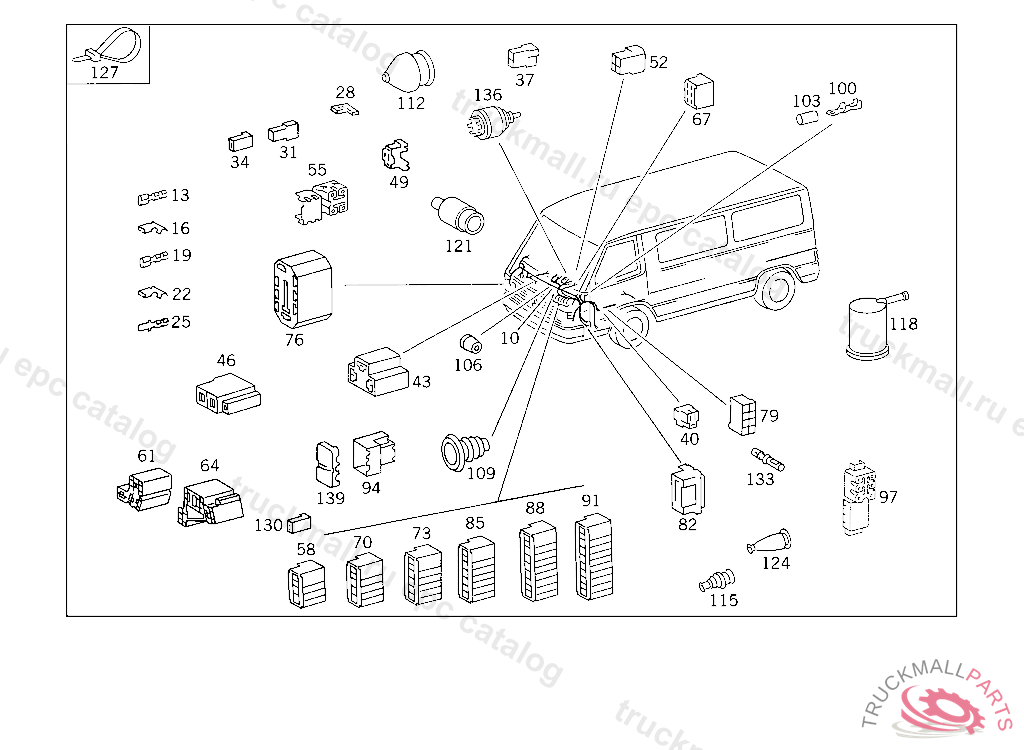

Поз.
Артикул
Описание
10
CABLE HARNESS
10
CABLE HARNESS
13
PLUG SOCKET
13
PLUG SOCKET
13
PLUG SOCKET
16
PLUG SOCKET
19
PIN BUSHING ,099540
19
PIN BUSHING
19
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
19
PIN BUSHING ,099540
19
PIN BUSHING , NOT USED
19
PIN BUSHING
19
PIN BUSHING BRAKE-LINING-WEAR-INDICATOR TELL-TALE LAMP CABLE
19
PIN BUSHING
22
PIN BUSHING
22
PIN BUSHING
22
PIN BUSHING
22
PIN BUSHING , UP TO IDENT NO. 076616 EXCEPT FOR 070057,072208,072212,072215,072216,072221,072224,072613,072614,072615.
22
PIN BUSHING
25
PLUG
28
SOCKET HOUSING. PIN BUSHING HOUSING
31
PLUG SOCKET UNIPOLAR
34
PIN BUSHING HOUSING BIPOLAR
37
PIN BUSHING HOUSING FROM TELL-TALE LAMP TO GROUNF,099540
37
PLUG BIPOLAR, FROM IDENT NO. 076617 ALSO INSTALLED ON 070057,072208,072212,072215,072216,072221,072224,072613,072614,072615.
40
PIN BUSHING HOUSING 3-POLE
43
PIN BUSHING HOUSING 3-POLE
46
PLUG 3-POLE
46
PIN BUSHING HOUSING 3-POLE
49
PIN BUSHING HOUSING 3-POLE, UP TO IDENT NO. 076616 EXCEPT FOR 070057,072208,072212,072215,072216,072221,072224,072613,072614,072615.
52
PIN BUSHING HOUSING 4-POLE, UP TO IDENT NO. 076616 EXCEPT FOR 070057,072208,072212,072215,072216,072221,072224,072613,072614,072615.099541
55
PLUG 4-POLE
55
PLUG 4-POLE, FROM IDENT NO. 076617 ALSO INSTALLED ON 070057,072208,072212,072215,072216,072221,072224,072613,072614,072615.099540
58
PIN BUSHING HOUSING 5-POLE
58
PIN BUSHING HOUSING 5-POLE
61
PLUG 5-POLE
64
PLUG 5-POLE
67
PIN BUSHING HOUSING 6-POLE
67
PIN BUSHING HOUSING , NOT USED
70
PIN BUSHING HOUSING 6-POLE
70
PLUG 5-POLE, FROM IDENT NO. 076617 ALSO INSTALLED ON 070057,072208,072212,072215,072216,072221,072224,072613,072614,072615.
73
PIN BUSHING HOUSING 7-POLE
76
PIN BUSHING HOUSING 8-POLE
79
PIN BUSHING HOUSING 8-POLE
82
PIN BUSHING HOUSING 8-POLE
85
PIN BUSHING HOUSING 8-POLE
88
PIN BUSHING HOUSING 10-POLE
91
PIN BUSHING HOUSING 11-POLE
94
PLUG HOUSING 3-POLE
94
PLUG 3-POLE
97
PIN BUSHING HOUSING HEADREST/BACKREST/SEAT-FORE-&-AFT ADJUSTMENT SWITCH, 6-POLE
97
PIN BUSHING HOUSING 4-POLE
100
CABLE SHOE
100
CABLE SHOE
100
CABLE SHOEA 5-2.5 MM
100
CABLE SHOE
100
CABLE SHOE
103
GROMMET5.0 MM
103
GROMMET3.0 MM
106
GROMMET
109
GROMMET
112
BOOT , FROM CHASSIS: 010 057200 ALSO INSTALLED ON: 056657,056772,057093,057094,057102,057104-057106,057115,057118,057119,057122-057124,057127,057129- 057131,057133,057134,057136,057137,057140-057158,057160-057162,057164,057165,057167,057186,057188- 057198.
115
GROMMET
118
GROMMET
121
GROMMET BLINKER LAMP BRANCH-OFF
124
GROMMET
127
LOOM TIE LINE MOUNTING
127
LOOM TIE OIL LINES,019394
130
BOOT PIN BUSHING
133
ROUND PIN BUSHING2.5 MM2
136
LIGHT SWITCH
139
PIN BUSHING HOUSING 3-POLE
139
CAP , Replaced By: A0055450228
