Поз.
Артикул
Описание

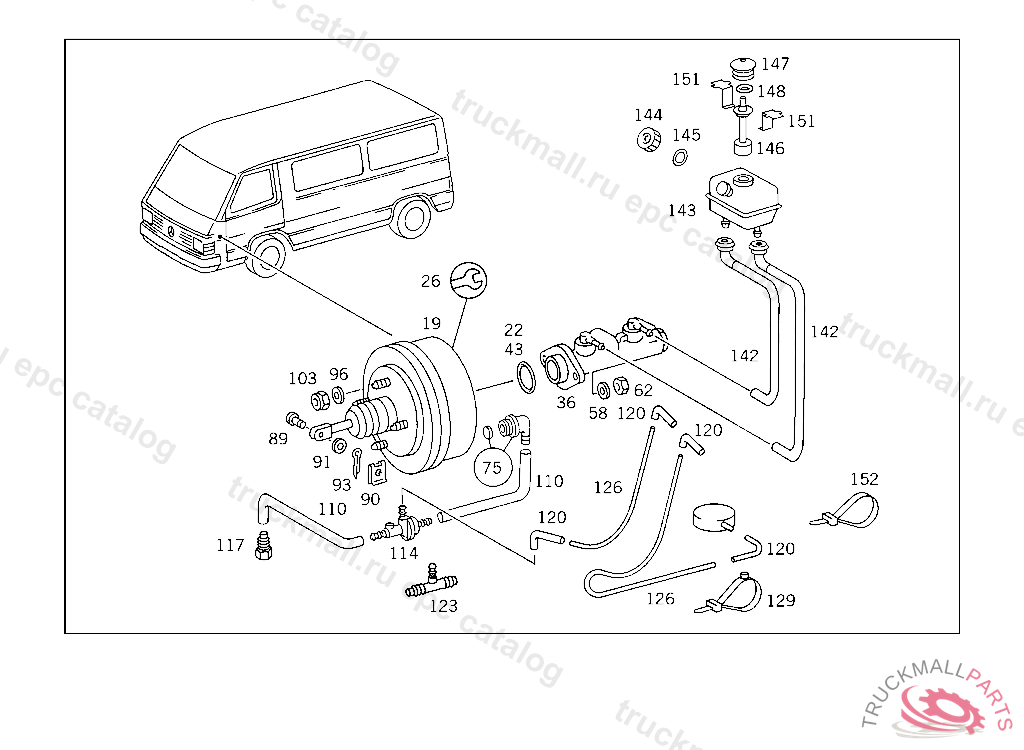

19
BRAKE BOOSTER
22
SEAL RING MASTER CYLINDER TO BRAKE BOOSTER
26
REPAIR KIT BRAKE BOOSTER
36
BRAKE MASTER CYLINDER , UP TO IDENT NO.: 004194 WITH 10-MM-THREAD-CONNECTION BRAKE LINE FROM IDENT NO.: 004195 WITH 12-MM-THREAD-CONNECTION BRAKE LINE021971
36
BRAKE MASTER CYLINDER ,021972
43
SEAL RING MASTER CYLINDER TO BRAKE BOOSTER
58
WASHER , Replaced By: N000125008443
62
NUT , Replaced By: N304032008006
75
VALVE PARTS KIT
89
PIN BRAKE BOOSTER ASSEMBLY TO PEDAL
89
PIN ,005399, Replaced By: A6312920374, +001N000094002058, +001N000125008418
90
CLIP , Replaced By: N000000002965
91
WASHER , Replaced By: N000125008443
93
COTTER PIN ROD TO BRAKE PEDAL
96
WASHER , Replaced By: N000125008443
103
NUT
110
HOSE FEED LINE AND RETURN LINE 10,5X13 MM, ORDER BY THE METER
110
LINE , Replaced By: A0139971282
114
DISTRIBUTOR VACUUM LINE
114
VALVE (CHECK VALVE)
117
CONNECTOR , EXCHANGEABLE FOR 115 435 02 25 TOGETHER WITH 915017 010200
117
CONNECTOR , Replaced By: A3774307029
120
HOSE , Replaced By: A1170780281
120
HOSE
120
HOSE ,047132
123
DISTRIBUTOR ,047132
126
PLASTIC PIPE RISING PIPE 4X6 MM
126
LINE VACUUM LINE TO BRAKE BOOSTER 1290 MM
126
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
129
LOOM TIE
142
GROMMET ,021972
142
GROMMET ,099541
142
GROMMET ,021972
142
GROMMET ,021971
142
GROMMET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 007296, Replaced By: A6319973281
142
GROMMET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 007296, Replaced By: A6319973281
142
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 007296, Replaced By: A6319973281
143
RESERVOIR ,021971, Replaced By: A6314300002, +001A6314301101
143
RESERVOIR RESERVOIR
143
RESERVOIR RESERVOIR,099541
144
SCREW PLUG FILLER NECK TO 631 430 00 02
144
FILLER CAP FILLER NECK TO 631 431 01 02
145
SEAL RINGTO 631 431 00 33
145
GASKET FILLER NECK TO 631 430 00 02
146
VALVETO 631 431 01 02
147
VALVE SEATTO 631 431 01 02
148
GASKETTO 631 431 01 02
148
GASKET SENDER UNIT TO 631 430 00 02
151
CABLE SHOETO 631 430 00 02
152
LOOM TIE LINE MOUNTING
152
LOOM TIE OIL LINES, FOR USE WITH POWER STEERING019395
152
LOOM TIE , Replaced By: A0019978490
152
LOOM TIE LINE MOUNTING
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
NUT L.H. THREAD
999
NUT BALL PIVOT TO LEVER
999
ADHESIVE FOILTO 631 430 01 02
999
SENDER UNITTO 631 430 00 02
999
SCREW PLUGTO 631 430 00 02/01 02
999
VALVE
999
REPAIR KIT TANDEM BRAKE MASTER CYLINDER
999
JOINT
999
JOINT
999
GASKET PEDAL ASSEMBLY
999
GASKET PEDAL ASSEMBLY
999
ROD LESS JOINT TO 123 320 14 89
