Mercedes A0007580103 - Клин запорный люка багажного отсека правый

TRAVEGO 15 SHD 2 - ACHSER 632.285

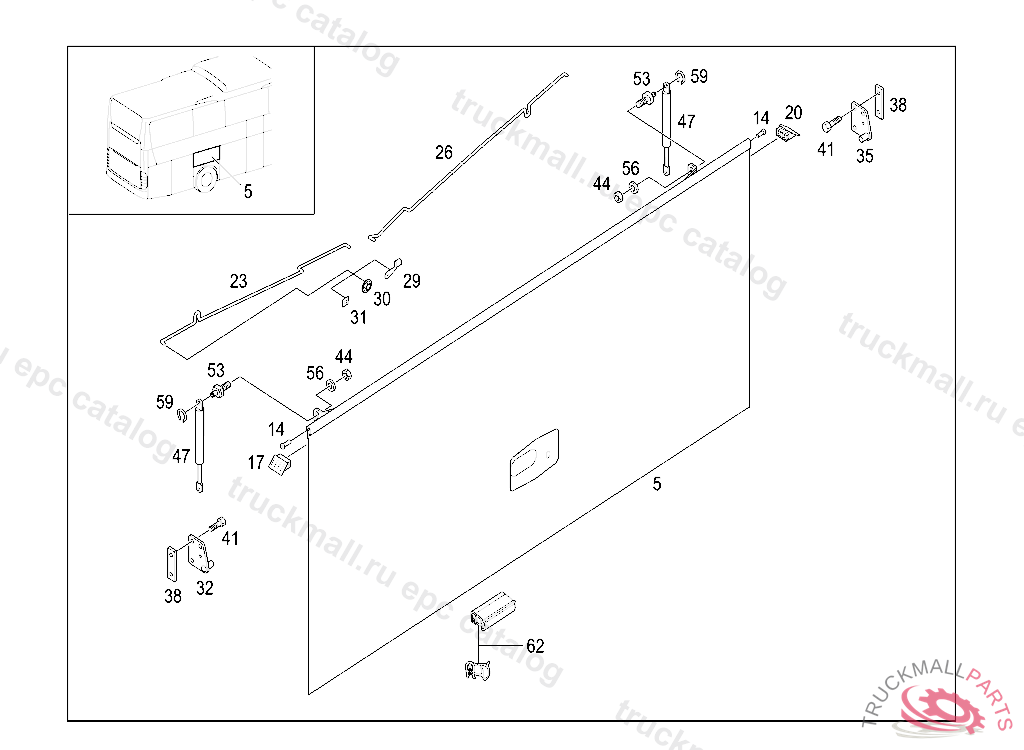

75 OUTSIDE FLAPS - 050 SIDE FLAPS,WHEEL COVERING IL. 2

Поз.
Артикул
Описание
5
A6297502005
FLAPL1340 MM
5
A6327500270
HINGED DOOR WITHOUT DISENGAGEMENT SHIFT TUBE L1340MM
14
A0009926205
BUSHING
17
A0009878945
LOCKING CAP
20
A0009879045
LOCKING CAP
23
A6297548219
STRUTL513MM
26
A6297548319
RODL564MM
29
A0007580042
LOCK
30
A0049945945
LOCK
31
A0009940145
LOCK
32
A0007580003
STRIKER
35
A0007580103
STRIKER
38
A6297550111
PLATE
41
N910105008041
SCREW , Replaced By: N910143008000
44
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
47
A0039803664
GAS PRESSURE STRUT400N
47
A6297501536
SPRING200 N
53
A6297540020
MOUNTING
53
A6297540120
MOUNTING
56
N000125008441
WASHER
59
N000471008000
LOCK RING
62
A0007570474
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
62
A0007570274
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
