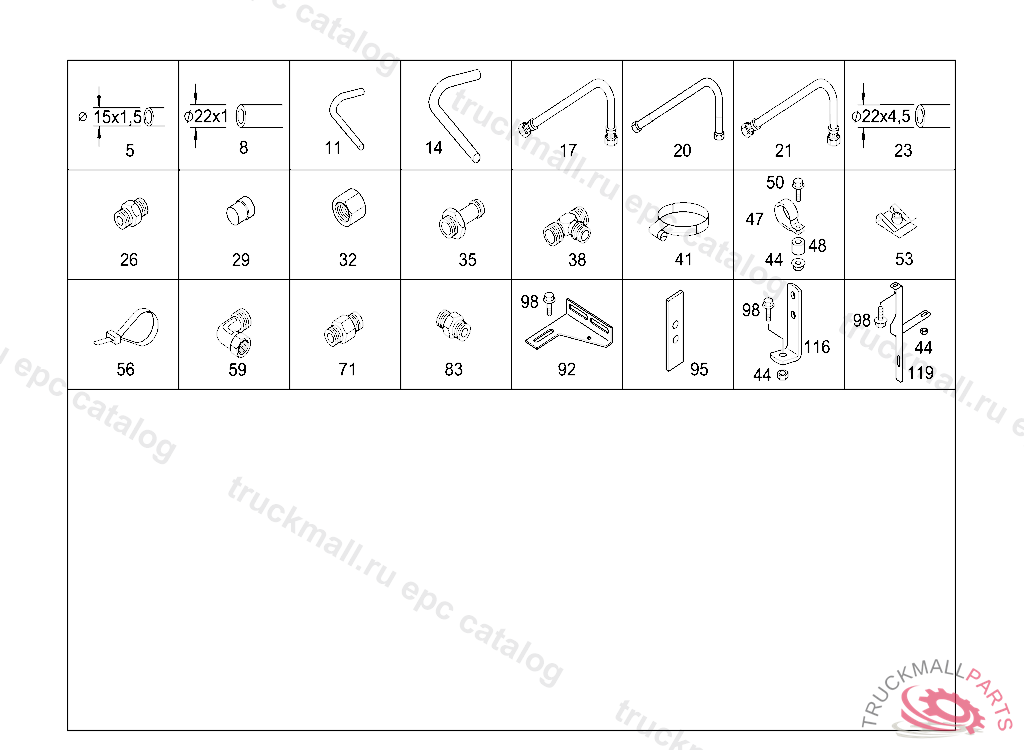

Поз.
Артикул
Описание
11
HOSE 90-DEGREE ARC NW15
14
HOSE
17
LINE. HOSE
20
LINE
21
LINE
23
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
26
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
26
FITTING
29
GLAND (DELIVERY AND SUCTION LINE) BL15
32
NUT LINE CONNECTIONS AL 15
35
CONNECTOR (THROTTLE VALVE)
38
FITTING
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
44
NUT HORN TO BRACKET M8
44
NUT BRACKET TO FIRE WALL
47
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
47
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
47
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
47
CLAMP22/15, Replaced By: A0019951442
47
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
47
MOUNTING CLAMP22/15
50
SCREW , Replaced By: N914146006102
50
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
53
LOCK. NUT , Replaced By: A0039941745
59
FITTING OIL LINE CONNECTION
59
FITTINGL15
71
SCREW-IN FITTING , Replaced By: N003901015005
92
BRACKET
95
BRACKET
98
SCREW , Replaced By: N910143008000
116
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 17. 02.2012
116
BRACKET
119
BRACKET
