Mercedes A6296870319 - AUFLAGE VORNE

TRAVEGO 15 SHD 2 - ACHSER 632.285

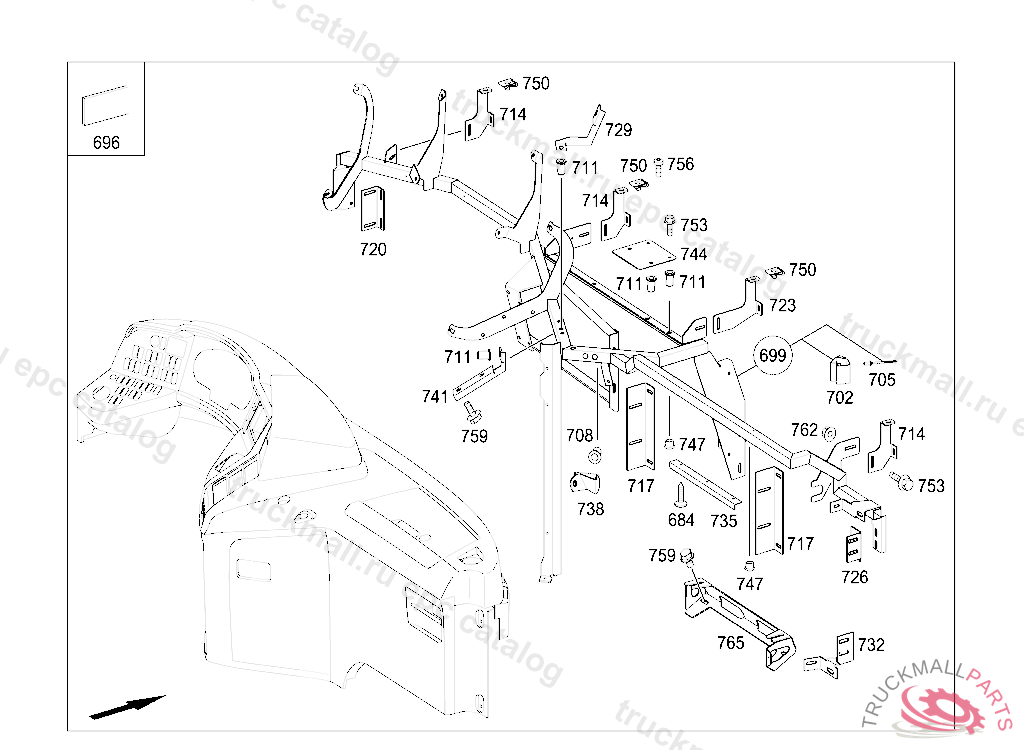

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 11

Поз.
Артикул
Описание
684
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
696
A0019835610
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
699
A6326801514
MOUNT
702
A3568840353
SPRING BRACKET MOUNTING
705
A0039903497
BLIND RIVET MOUNTING OF CARRIER 4X8
708
N913024008100
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
711
N913024006100
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
714
A6296870319
REST FRONT
717
A6296870712
ATTACHMENT ANGLE BRACKET RIGHT BULKHEAD
720
A6296871312
ATTACHMENT ANGLE BRACKET
723
A6326870319
REST
726
A6326871112
ATTACHMENT ANGLE BRACKET
729
A6326875214
BRACKET
732
A6326875414
BRACKET
735
A6326875512
ANGLE
738
A6326875714
BRACKET
741
A6326876514
BRACKET
744
A6326876614
BRACKET
747
A0009878745
LOCKING CAP
747
A0009879645
COVER CAPD12,7MM
750
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
753
N910105006004
SCREW , Replaced By: N914146006102
756
N000000001146
SCREW CLAMP MOUNTING M 6X16
759
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
759
N910105008041
SCREW , Replaced By: N910143008000
762
N910112006001
NUT , Replaced By: N913023006001
765
A6296830032
CONSOLE DEEP FREEZER
