TRAVEGO 15 SHD 2 - ACHSER
›
632.285
›
69 COVERING AND LINING
›
030 INTERIOR PANELLING IL. 3

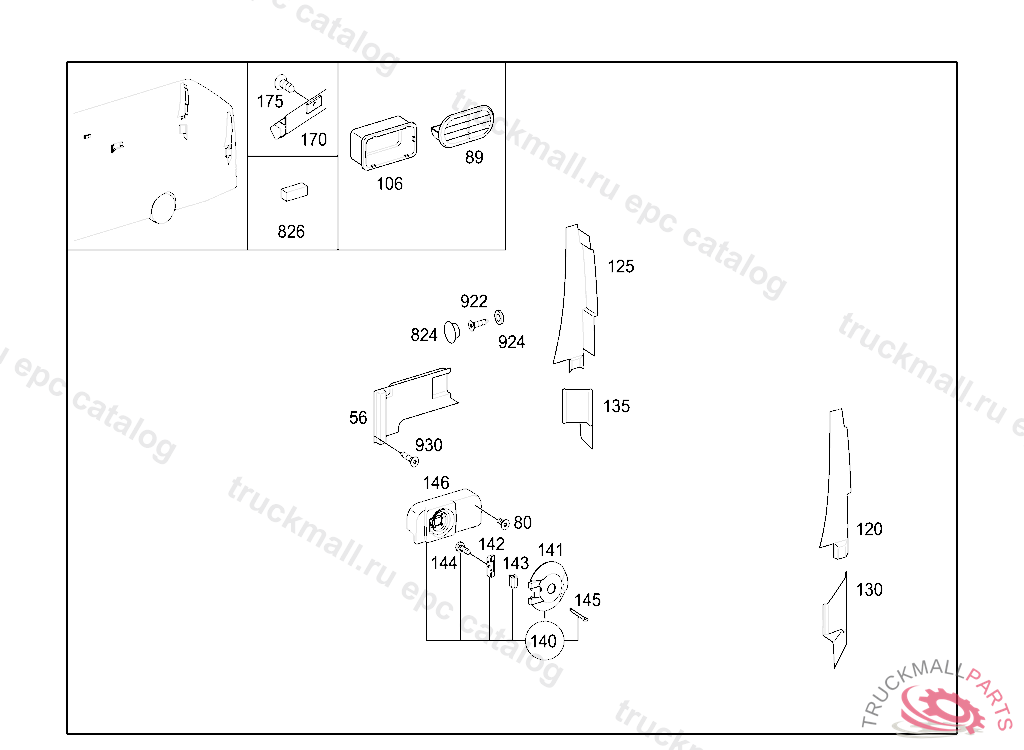

Mercedes A6326941325 - VERKLEIDUNG RUECKWAN
TRAVEGO 15 SHD 2 - ACHSER 632.285
69 COVERING AND LINING - 030 INTERIOR PANELLING IL. 3
Поз.
Артикул
Описание
56
A6296920022
COVERING
120
A6326901541
PANELLING REAR END,TOP LEFT
125
A6326941125
PANELLING REAR END,TOP RIGHT
130
A6326941225
PANELLING REAR END,BOTTOM LEFT
135
A6326941325
PANELLING REAR END,BOTTOM RIGHT
140
A6296901340
PANELLING , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
140
A6326900248
COVER , AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
141
A3566910027
COVER
142
A3016910335
SPRING
143
A3016910021
MOUNTING
144
N000000000447
TAPPING SCREW BRACKET MOUNTING
145
N000094002064
COTTER PIN ROD TO INTERMEDIATE LEVER
146
A6296926601
PANELLING
170
A6326901100
COVER
175
N000000002027
TAPPING SCREW2,9X9,5
824
A0009877045
LOCKING CAP
826
A3576160190
SPACERTO 613 640 11 09/12 09
922
A0019904936
SHEET METAL SCREW3.5X22 T20
924
N000000003738
WASHER4MM
930
N000000000478
TAPPING SCREW3.5X19
