TRAVEGO 15 SHD 2 - ACHSER
632.285
67 WINDOWS
022 DRIVER'S WINDOW

Mercedes A6327250223 - ABDICHTUNG IN

TRAVEGO 15 SHD 2 - ACHSER 632.285

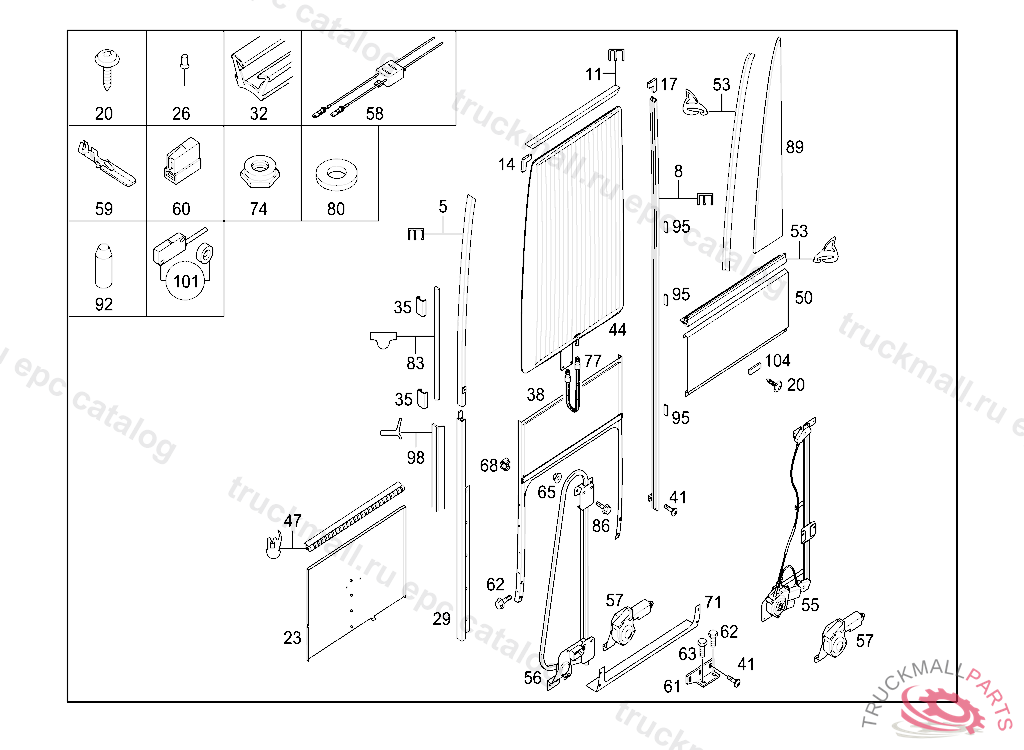

67 WINDOWS - 022 DRIVER'S WINDOW

Поз.
Артикул
Описание
5
A6327200815
GUIDE RAIL A-PILLAR,TOP
8
A6327203415
GUIDE RAIL B-PILLAR
11
A6327250930
WINDOW GUIDE TOP
14
A6327251012
ANGLE A-PILLAR
17
A6327250112
ANGLE
20
N000000000515
TAPPING SCREW RAIL
20
N000000000514
TAPPING SCREW MOUNTING PLATE 3.5X9.5
20
N000000000477
TAPPING SCREW3,5X16MM
23
A6327201548
COVERING INSIDE
26
N000000000848
BLIND RIVET
29
A6327201015
GUIDE RAIL
32
A0009876655
WINDOW RUBBER RUNL4300MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
35
A6297250132
GUIDE JAW , Replaced By: A4107250029
38
A6327202978
SEALING FRAME
41
N000000002925
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
41
N000000002757
HEXALOBULAR BOLT. SCREW
44
A6327200720
GLASS PANE CABLE GUIDE
47
A6327250223
SEAL INSIDE
50
A6327201348
COVERING OUTSIDE
53
A0029874233
RUBBER SECTION848LG, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
55
A0007251102
WINDOW REGULATOR ELECTRIC
57
A0068209342
ELECTRIC MOTORTO A 000 725 11 02
61
A6327250035
RETAINING RAIL
62
N910105006002
HEXAGON HEAD BOLT
63
N910105006006
SCREW BRACKET AND CLAMP M6X20
65
N910112006001
NUT , Replaced By: N913023006001
71
A6327251865
SEALING RAIL BOTTOM
74
A0009901559
NUTM4
77
A0008211997
HOSE
80
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
83
A0009877414
RUBBER STRIPL5200MM
86
N000000002757
HEXALOBULAR BOLT. SCREW
89
A6327201248
COVERING
92
A0009981101
SHAPED GROMMET
95
A0009872942
SPACER35X12X2
98
A6329870251
PROFILE SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
101
A0088204610
SOLENOID SWITCH
104
A0009873042
SPACER35X12X4MM
