Mercedes N910001004105 - Клипса

TRAVEGO 15 SHD 2 - ACHSER 632.285

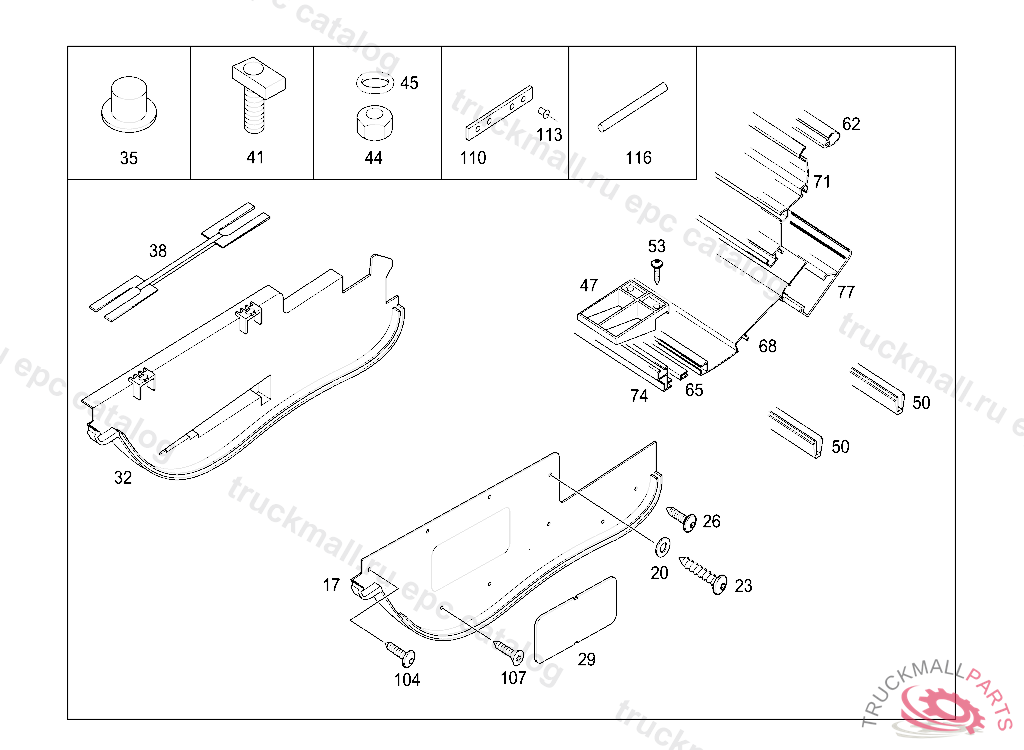

69 COVERING AND LINING - 060 SIDE WALL INTERIOR PANELLING

Поз.
Артикул
Описание
17
A6328302514
BRACKET REAR LEFT
17
A6328302614
BRACKET REAR RIGHT
20
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
23
N000000002349
HEXALOBULAR BOLT SPLASH GUARD M6X16,V 207570
26
A0009590171
SCREW ASHTRAY MOUNTING
29
A6328365902
COVERING
32
A6328302314
BRACKET FRONT RIGHT
32
A6328302214
BRACKET FRONT LEFT
35
A6298361302
COVERING
38
A6328360097
PAD
41
A0029908922
SCREW F CRANKCASEM8X30
44
N913023008003
NUT HORN TO BRACKET M8
45
A6328360216
REINFORCEMENT WASHER
47
A6298360097
PAD
50
A6298360620
RAIL
53
A0009904310
SCREW
62
A6329870052
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
A6328360698
SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
68
A6328366620
RAIL REAR 4747MM
68
A6329850149
RETAINING RAIL FRONT
68
A6328360824
RAIL FRONT LEFT 5272MM
71
A6328366720
RAIL REAR
71
A6329850249
RETAINING RAIL FRONT
74
A6329850349
RETAINING RAIL
77
A6326955027
ROOFLINER FRONT AND REAR, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
77
A6328361751
LEDGE FRONT AND REAR 6055MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6326955027
104
N000000000514
TAPPING SCREW MOUNTING PLATE 3.5X9.5
107
N000000001589
HEXALOBULAR BOLT. SCREW SUPPORT WITH HANDBRAKE VALVE ON SEAT FRAME M 8X16
110
A6326950297
PAD15X70MM
113
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
116
A6326950197
PAD6X70MM
