Mercedes A0009872627 - Трубка пластиковая 6 X 4

TRAVEGO 15 SHD 2 - ACHSER 632.285

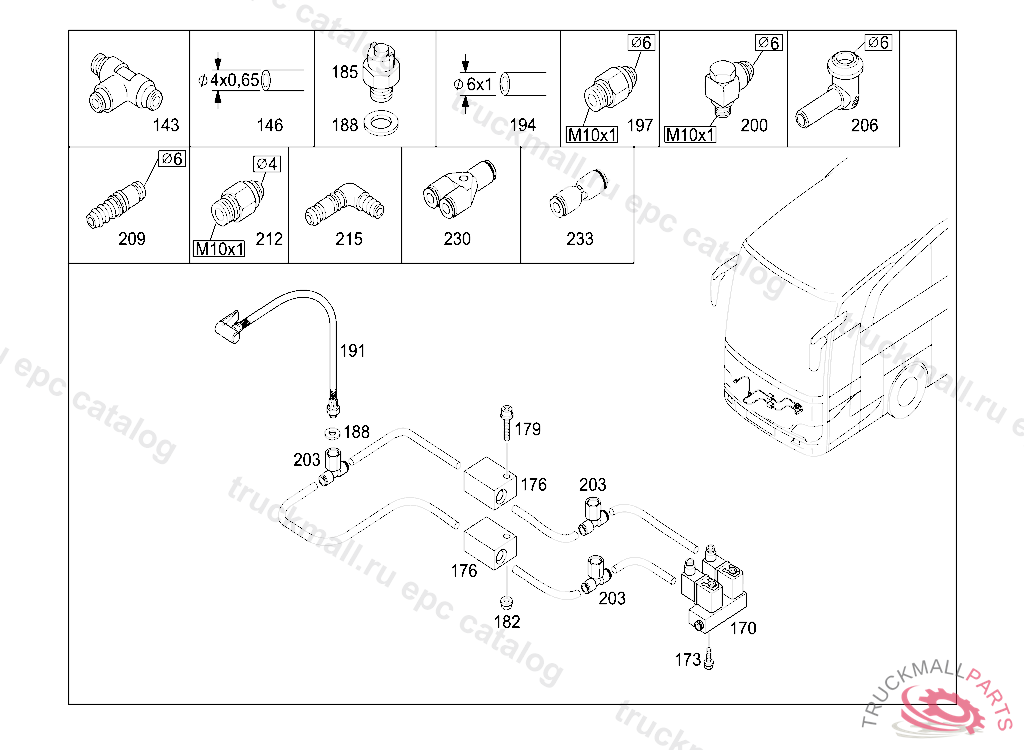

42 BRAKES - 010 COMPRESSED AIR LINES IL. 1

Поз.
Артикул
Описание
143
A0049907270
T-FITTING
146
A0009873427
PLASTIC PIPE4X0,65MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
170
A0009972012
VALVE
173
N910105006002
HEXAGON HEAD BOLT
176
A0008050078
VALVE SHUTTLE VALVE
179
A0039909312
SCREWM 4 X 50
182
N000000006148
NUT-AND-WASHER ASSEMBLY. NUTM4
185
A0007633810
SWITCH3 BAR
188
A0059976140
SEAL RING
191
A0008000082
LINE
194
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
200
A0039906768
FITTING
203
A0059978789
COUPLING
206
A0049904271
ELBOW FITTING
209
A0039974989
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
209
A0059977889
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
212
A0039906668
FITTINGM 10 X 1
215
A0039976589
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
230
A0008050022
PIPE BRANCHING Y-PIECE
233
A0059974189
QUICK CONNECTOR
