Mercedes A0018355998 - ABDICHTRING

TRAVEGO 15 SHD 2 - ACHSER 632.285

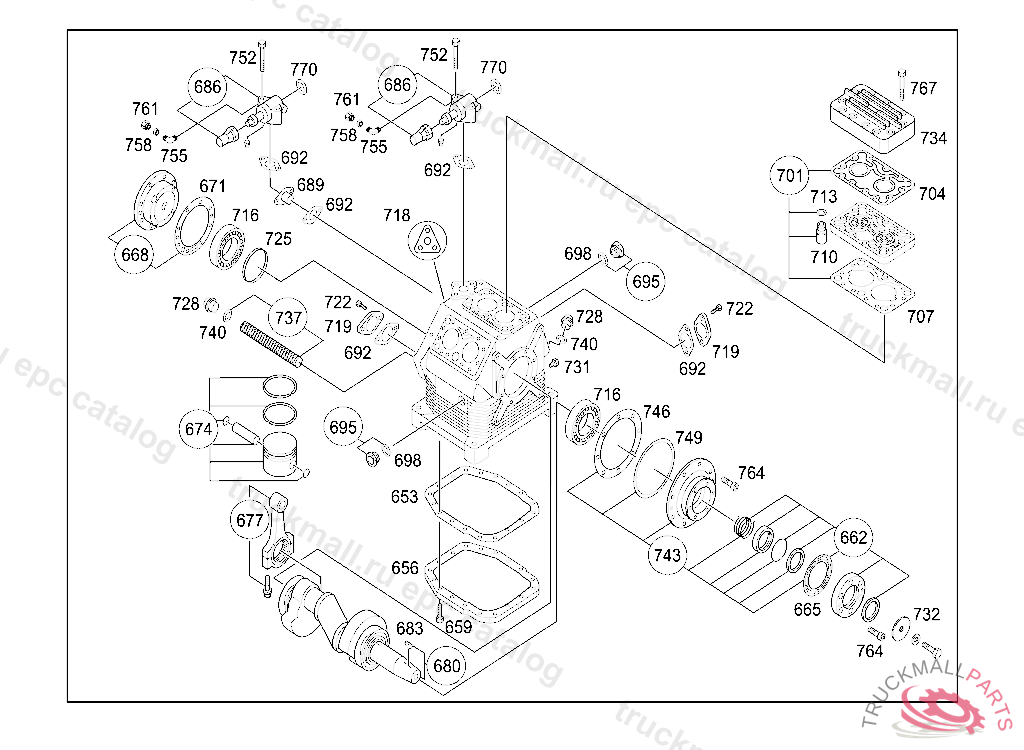

83 HEATING AND VENTILATION - 440 REFRIGERANT COMPRESSOR IL. 4

Поз.
Артикул
Описание
653
A0008351823
WEATHERSTRIP
656
A0008351411
PLATE
662
A0001300832
BEARING CAP REPAIR KIT
665
A0011313780
GASKET
668
A0001310465
OIL PUMP (PARTS KIT),OIL PUMP
671
A0011319980
GASKET
674
A0001304517
PISTON DIA., 60 MM FKX 40/560K
677
A0001312817
CONNECTING RODTO A 002 830 58 60
680
A0001300814
CRANKSHAFTTO FKX50/660K,TO A 002 830 58 60
683
A0001314108
SPRING
686
A0009970222
VALVE BODY
689
A0001310834
STRAINER ON SUCTION SIDE
692
A0008312998
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
695
A0008351361
SIGHT GLASS22MM, TO A 629 830 94 60
698
A0018357098
SEAL28.3X1.8MM
701
A0001315531
VALVE DISC PARTS KIT
704
A0021310480
GASKET
707
A0008330998
GASKET
710
A0038304384
VALVE
713
A0018355998
SEAL
716
A0109814301
CYLINDR. ROLLER BEARING
718
A0008330598
GASKET KIT
719
A0008320768
FLANGE15MM
725
A0009810978
TOLERANCE RING
728
A0009908017
SCREW SRREW PLUG M22X1,5
731
A0008350878
FASTENER SRREW PLUG 1/4"
731
A0009905217
SCREW SRREW PLUG 1/8"
732
A0001311776
WASHER CRANKSHAFT 50X12,5X8MM
734
A0008350556
COVER
737
A0008330149
STRAINER
740
A0018356098
SEAL27X22X2MM
743
A0008310320
MOUNTING
746
A0021310080
GASKET FRONT
749
A0149973145
SEAL RING101.19X3.53MM
999
A0008351088
GUIDE SIGNDEA SE 55
999
A0008351188
GUIDE SIGNR134A
999
A0009880409
OIL SCRAPER RINGFKX 40/560K
999
A0009880509
TAPER-FACED RINGFKX 40/560K
999
A0009915415
PISTON PIN15X10X50MM
999
A0009941503
PISTON RINGFKX 40/655K
999
A0009941603
PISTON RINGFKX 40/655K
