Mercedes A0019951910 - ХОМУТ

TRAVEGO 15 SHD 2 - ACHSER 632.285

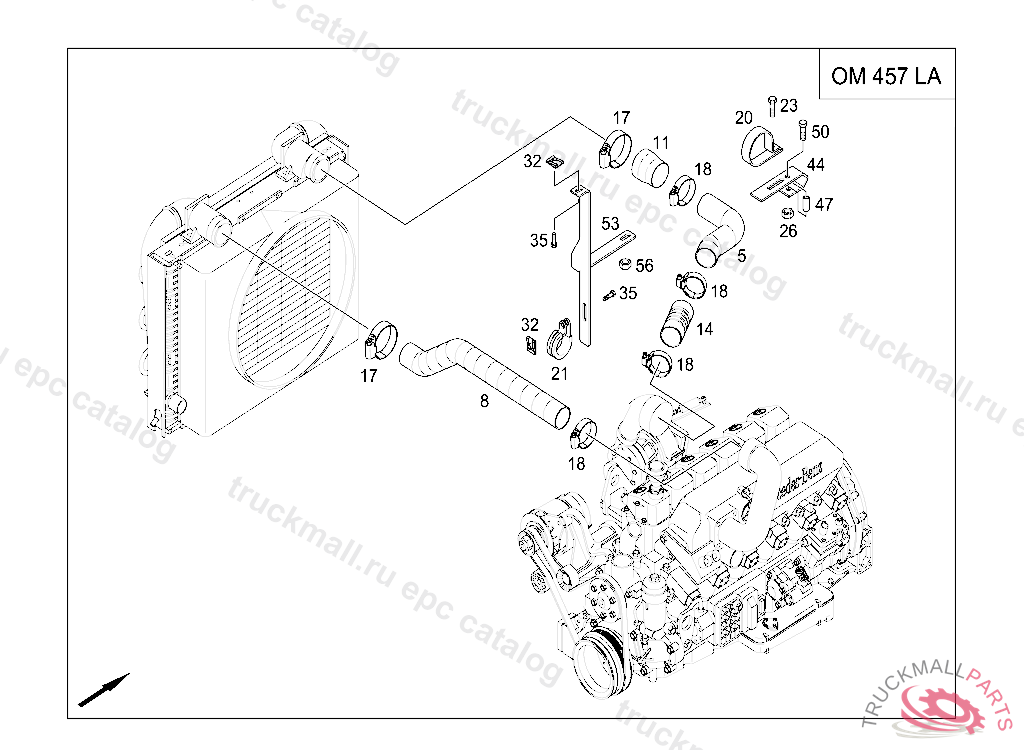

50 RADIATOR - 490 CHARGING AIR LINE IL. 1

Поз.
Артикул
Описание
17
A0019951910
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
17
A0059971490
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
18
A0059970690
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
18
A0019950710
HOSE CLAMP
20
A6295040233
FASTENING CLAMP100MM, FROM IDENT NO. WEB 629011 13 520031 ALSO INSTALLED ON WEB 629011 13 520024 , WEB 629011 13 520025 , WEB 629011 13 520027 , WEB 629011 13 520029
23
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
26
N910112010001
NUT , Replaced By: N913023010002
32
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
47
A6295040150
BUSHING
50
N910105010021
SCREW , Replaced By: N910105010017
