Главная
›
Mercedes
›
BUS
›
TRAVEGO 15 SHD 2 - ACHSER
›
632.285
›
61 SUBSTRUCTURE
›

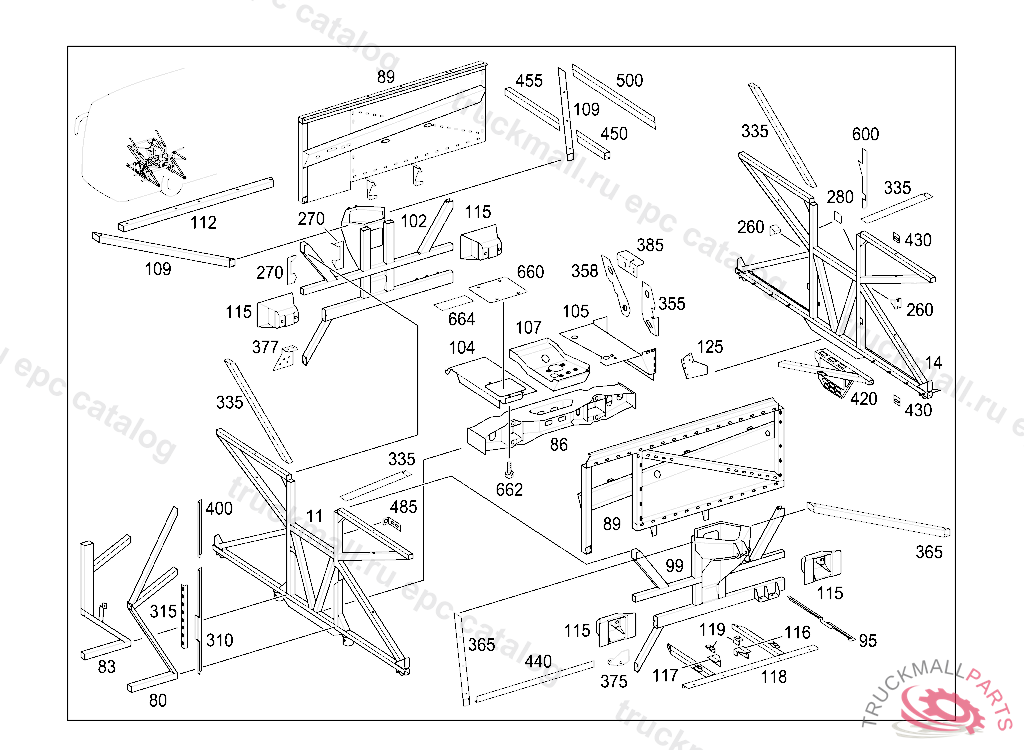

120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 6
Mercedes A3056148014 - Halter
TRAVEGO 15 SHD 2 - ACHSER 632.285
61 SUBSTRUCTURE - 120 SUBSTRUCTURE FRAMEWORK,FRONT IL. 6
Поз.
Артикул
Описание
11
A6326102917
CROSS MEMBERQT 3
14
A6296107317
CROSS MEMBERQT 4
86
A6326100220
CROSS MEMBER
89
A6326105909
LONGITUDINAL MEMBER RIGHT
95
A6296163812
ANGLE
99
A6326100710
SIDE MEMBER ABOVE FRONT AXLE,LEFT
102
A6326100510
SIDE MEMBER ABOVE FRONT AXLE,RIGHT
104
A6296104408
COVERING FRONT
104
A6326106508
COVERING
105
A6326112808
COVERING AT CROSS MEMBER 4
107
A6296100920
CROSS MEMBER
109
A6296110465
SUPPORT1038MM
112
A6296114865
SUPPORT1287MM
115
A6296115027
BEARING FORMED PART
116
A6296104300
BRACKET RIGHT
117
A6296104200
BRACKET LEFT
118
A6296105110
SIDE MEMBER
119
A6296101812
ANGLE
125
A6296105100
BRACKET
260
A6296120925
REINFORCEMENT
270
A6276114114
BRACKET IN FRONT OF REAR AXLE,LEFT
280
A6276125211
PLATE18X25MM
335
A6296124450
STRUT
358
A6296110816
REINFORCEMENT RIGHT
365
A6296110565
SUPPORT
375
A6296124724
BRACKET
377
A6326112710
BRACKET
385
A6326112310
BRACKET
420
A6326100910
BEAM
430
A6296113914
BRACKET
440
A6326112612
REST ANGLE
485
A3056148014
BRACKET
600
A6326120511
SUPPORT PLATE
660
A6296110808
COVERING272X320MM
662
N910105006004
SCREW , Replaced By: N914146006102
664
A0009870922
SEALING TAPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
