Mercedes A6328150614 - HALTER / 19 ZOLL MO

TRAVEGO 15 SHD 2 - ACHSER 632.285

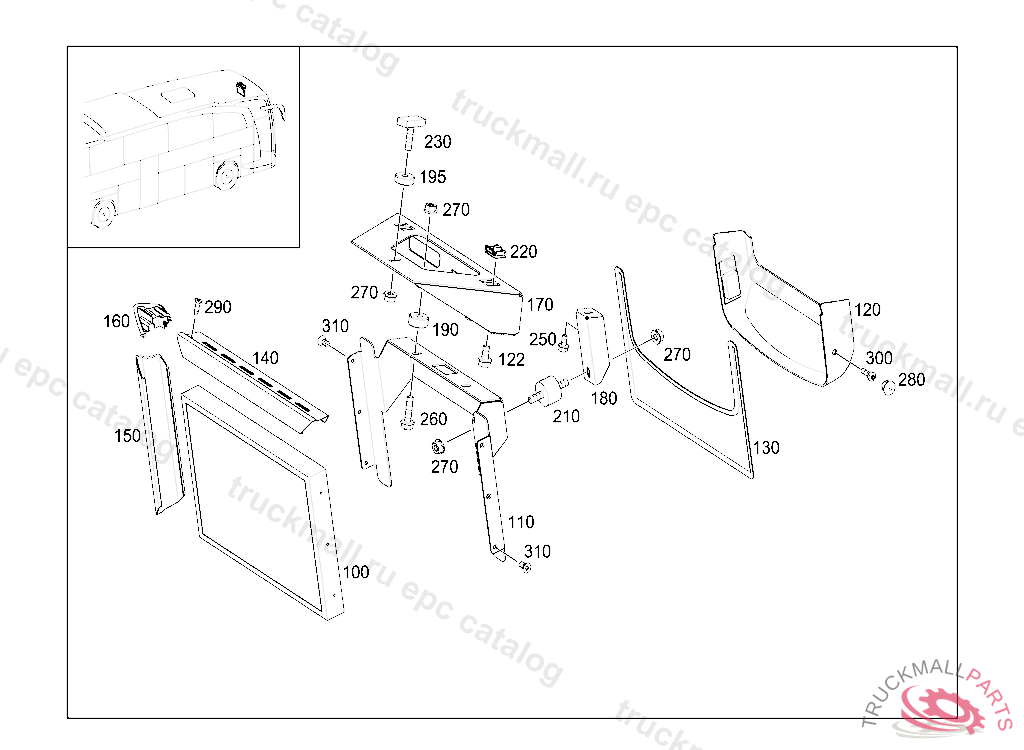

81 APPOINTMENTS - 090 INTERIOR APPOINTMENTS IL. 3

Поз.
Артикул
Описание
100
A0058206289
MONITOR
110
A6328150614
BRACKET
120
A6328102164
PANELLING
122
N910105008041
SCREW , Replaced By: N910143008000
130
A6328142526
PANELLING
140
A4108270024
FRAME
150
A4108270124
FRAME
160
A4108250075
ORNAMENTAL COVER
170
A6328141714
BRACKET , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 05.03.2009
170
A6328104214
BRACKET , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 06.03.2009
180
A6328150414
BRACKET MONITOR
190
A6329920001
BUSHING
195
A6329920201
BUSHING
210
A0008111036
BEARING BRACKET
220
A0049946845
LOCK
220
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
230
A0029908922
SCREW F CRANKCASEM8X30
250
N910105006002
HEXAGON HEAD BOLT
260
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
270
N913023008003
NUT HORN TO BRACKET M8
280
A0009878745
LOCKING CAP
290
N000000002696
SCREW MOUNTING, SUPPORT PLATE 3X10
300
N000000000454
TAPPING SCREW SIDE REFLECTORS,K 057592
310
A0029901020
SCREW
310
N000000007000
SCREW RELAY SOCKET TO APPARATUS PLATE M5X10
