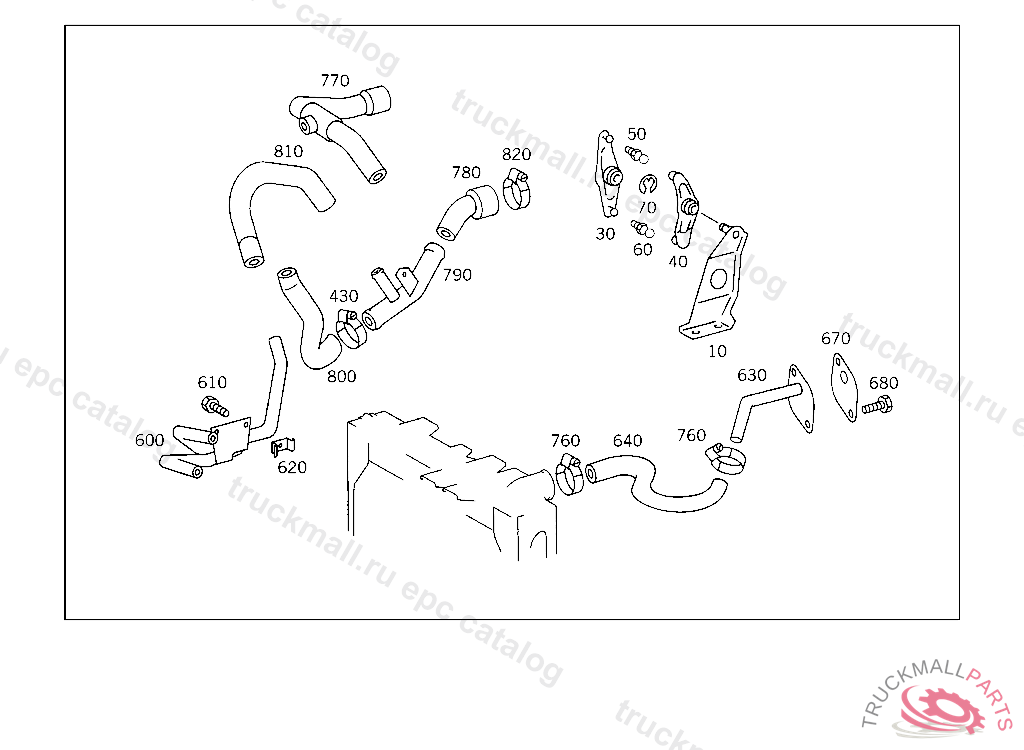

Поз.
Артикул
Описание
10
BEARING BRACKET INTERMEDIATE BEARING
30
LEVER INTERMEDIATE BEARING
40
LEVER (INTERMEDIATE LEVER)
50
BALL STUD. BALL PIVOT TOP B10X4,5 MM
60
BALL PIVOT BOTTOM B13X5 MM
70
LOCK PLATE INTERMEDIATE BEARING
430
HOSE FROM RADIATOR TO THERMOSTAT
430
HOSE FROM RADIATOR TO THERMOSTAT
600
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
600
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
610
SCREW DE-AERATION LINE TO RADIATOR
610
SCREW PUMP TO BRACKET
610
SCREW , Replaced By: N304017006016
610
SCREW , Replaced By: A6739900032
620
NUT RETAINER LICENSE PLATE TO BRACKET
620
NUT RETAINER , Replaced By: A0019906791
630
BREATHER PIPE ENGINE BREATHING
640
HOSE DE-AERATION PIPE TO EXPANSION TANK
670
GASKET. SEAL DE-AERATION PIPE TO ENGINE
680
SCREW END PIECE TO EXHAUST PIPE M 10X25
760
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
760
CLAMP HOSE TO FITTING AND TO OIL TANK
770
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
780
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
780
HOSE , Replaced By: A3875011082
790
INTERMEDIATE PIECE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,5 942996
790
INTERMEDIATE PIECE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
800
HOSE , Replaced By: A6555013382
800
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
810
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
810
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
820
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
820
CLAMP , Replaced By: N000000000667
820
CLAMP , Replaced By: N000000000670
820
CLAMP
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
BRACKET FEED LINE TO THERMOSTAT
999
PIPE ELBOW , Replaced By: A6555010756
999
PLATE FROM EXPANSION TANK TO RADIATOR 48X40 MM
999
FAN SHROUD RADIATOR
999
FAN SHROUD RADIATOR
999
SUPPORT RADIATOR,RIGHT,K 096750
999
SUPPORT RADIATOR,LEFT,K 096750
999
SUPPORT RADIATOR,RIGHT,K 096750
999
SUPPORT RADIATOR,LEFT,K 096750
999
RADIATOR WITH SCREW FITTING,5 501912
999
HOSE FROM EXPANSION TANK TO RADIATOR
999
HOSE FROM EXPANSION TANK TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
RADIATOR , Replaced By: A6505010701
999
HOSE FROM RADIATOR TO THERMOSTAT
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE DE-AERATION PIPE TO EXPANSION TANK
999
RADIATOR ,5 523342
999
HOSE FROM RADIATOR TO THERMOSTAT
999
RADIATOR , Replaced By: A6525010301
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
LINE HEATING AND BREATHING
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
BOOT FAN SHROUD TO FAN RING
999
RUBBER MOUNTING RADIATOR
999
CLAMP FEED LINE TO THERMOSTAT
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
