Поз.
Артикул
Описание

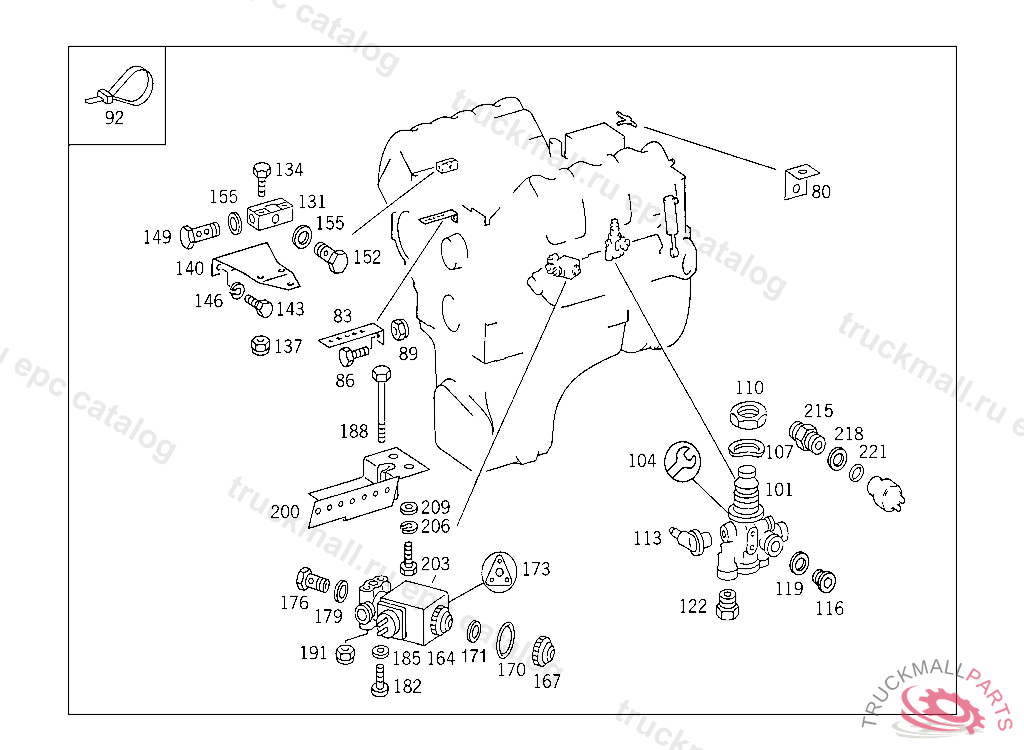

80
ANGLE LINE MOUNTING
83
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
86
SCREW REDUCTION VALVE TO BRACKET
86
SCREW , Replaced By: A0079900801
89
NUT , Replaced By: N913004008001
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
LOOM TIE LINE MOUNTING
92
LOOM TIE LINE MOUNTING 280 MM
101
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
101
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
104
REPAIR KIT 3/2-WAY VALVE WABCO
104
REPAIR KIT 3/2-WAY VALVE BOSCH
107
SPRING WASHER AT CAB FLOOR
110
NUT SUCTION LINE TO OIL PUMP
113
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
113
BREATHER , Replaced By: A3933280065
116
SCREW PLUG , Replaced By: N000908012009
116
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
119
SEAL RING LINE CONNECTION
122
SCREW. UNION SCREW LINE CONNECTION
122
SCREW. UNION SCREW , Replaced By: A0009973734
131
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
134
SCREW TWO-WAY VALVE TO BRACKET
137
NUT TWO-WAY VALVE TO BRACKET
140
BRACKET LINE MOUNTING
143
SCREW END PIECE TO EXHAUST PIPE M 10X25
146
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
149
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
152
HOLLOW SCREW FUEL LINE TO FEED PUMP
152
HOLLOW SCREW , Replaced By: N915036010108
155
SEAL RING FUEL LINE TO FEED PUMP
164
VALVE , Replaced By: A0049975736
164
VALVE (3/2-WAY SOLENOID VALVE) EKS
167
PROTECTIVE CAPWABCO
170
SEAL RINGWABCO
170
SEAL RINGBOSCH
171
SEAL RINGBOSCH
173
GASKET KITKNORR
176
HOLLOW SCREW HEATING CONNECTION
179
SEAL RING LINE CONNECTION
182
SCREW TO PLUG THE FREE CONNECTIONS
185
SEAL RINGBOSCH
188
SCREW VALVE TO BRACKET M 8X55
188
SCREW , Replaced By: N304017008043
191
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
191
NUT , Replaced By: N913004008001
191
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
200
BRACKET 3/2-WAY SOLENOID VALVE
200
BRACKET 3/2-WAY SOLENOID VALVE
203
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
203
SCREW , Replaced By: N304017008016
206
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
209
WASHER EXHAUST MUFFLER TO STRAP
209
WASHER , Replaced By: N000125008443
215
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
215
FITTING CONNECTION TO STOP LIGHT SWITCH
218
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
218
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
221
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
