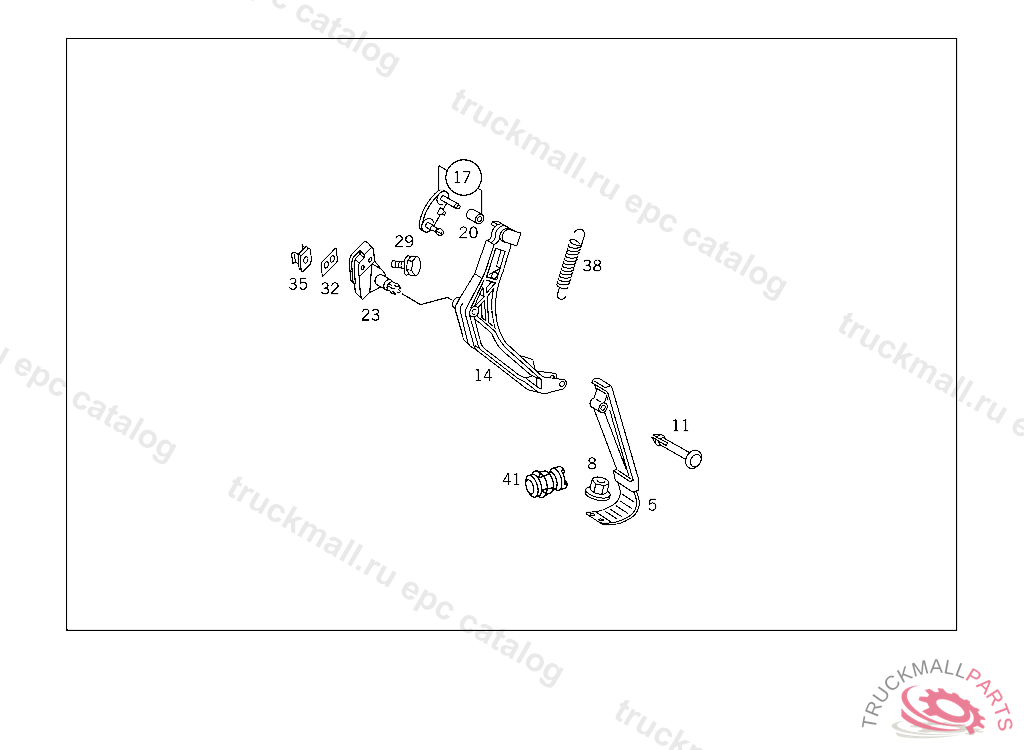

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL , Replaced By: A2203000204
8
NUT ACCELERATOR PEDAL TO FIRE WALL
11
PIN ACCELERATOR PEDAL TO LEVER
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
14
LEVER ACCELERATOR PEDAL, A 450374 F 505054
14
LEVER ACCELERATOR PEDAL,F 505054
17
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
20
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
23
BEARING ACCELERATOR PEDAL BEARING,A 346276
29
COMBINATION BOLT , Replaced By: N304017006019, +001N000137006204
29
SCREW , WITH DIESEL ENGINE
29
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
32
GASKET BEARING TO FIRE WALL
35
NUT RETAINER LICENSE PLATE TO BRACKET
38
SPRING ACCELERATOR PEDAL
38
SPRING ACCELERATOR PEDAL
41
STOP ACCELERATOR PEDAL,A 907056
