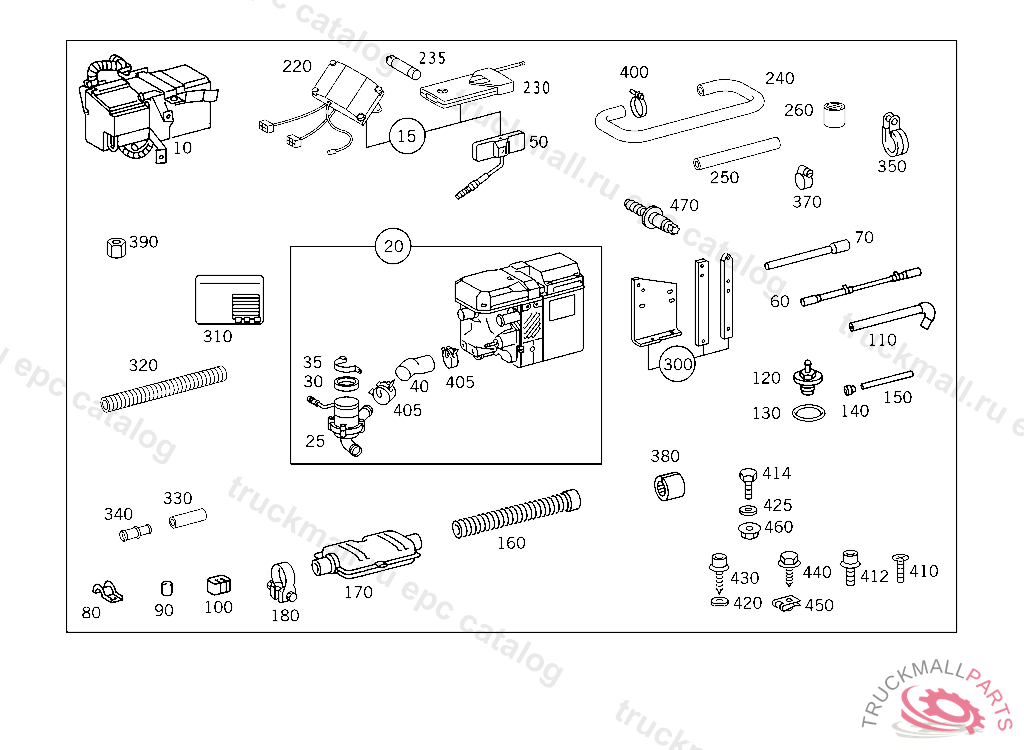

Поз.
Артикул
Описание
10
INDEPENDENT HEATING
15
TELESTART
20
HEATER UNITBENZIN
25
RECIRCULATING PUMP , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
30
HOSE CIRCULATION PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
35
SPRING CIRCULATION PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
40
HOSE CIRCULATION PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
50
ANTENNA
60
LINE (FUEL LINE)
70
HOSETO 000 470 76 94
80
CLAMP FORKED SUPPORT,TOP
90
BUFFER
100
DAMPING STRIP LINES UNDER CROSS MEMBER
110
HOSE FUEL HOSE
120
CONNECTOR
130
SEAL RING
140
GROMMET
150
HOSE
160
PIPELINE , TO BE ADAPTED DURING ASSEMBLY
170
MUFFLER
170
MUFFLER
180
CLAMP EXHAUST PIPE
220
RECEIVER , NO LONGER AVAILABLE
230
TRANSMITTER
235
BATTERY , ONLY FOR THERMO TOP C HEATER WITH PLASTIC CIRCULATION PUMP
240
HOSE20 MM
250
HOSE (INTAKE HOSE)
260
CAP (INTAKE HOSE)
300
BRACKET
310
STICKERBENZIN
320
HOSE
330
HOSE
340
CONNECTING PIPE18 X 20
340
CONNECTING PIPE17 X 20
340
CONNECTING PIPE20 X 20
350
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
350
CLAMP LINE MOUNTING
350
CLAMP CABLE HARNESS MOUNTING 48/20
350
CLAMP HOSE TO FLANGE AND TO VALVE
350
CLAMP LINE MOUNTING
370
CLAMP , Replaced By: N916026020001
380
RUBBER MOUNTING BETWEEN HEATER UNIT AND EXHAUST MUFFLER,B 377200
390
NUT
400
CLAMP LINE MOUNTING
405
LOOM TIE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
410
SCREW FUSE BOX TO BRACKET
412
SCREW PANELLING TO BUMPER
414
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
414
SCREW CABLE HARNESS MOUNTING
414
SCREW LICENSE PLATE TO BRACKET
420
SPRING WASHER ALTERNATOR CONNECTION D+
425
WASHER COMPRESSED AIR LINE TO BRACKET
425
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
425
WASHER COMPRESSED AIR LINE TO BRACKET
430
TAPPING SCREW BRACKET TO SUPPORT
440
COMBINATION BOLT BRACKET TO FRAME
450
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
460
NUT COVERING TO CAB FIRE WALL
460
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
470
STUD30 MM
470
STUD45 MM
