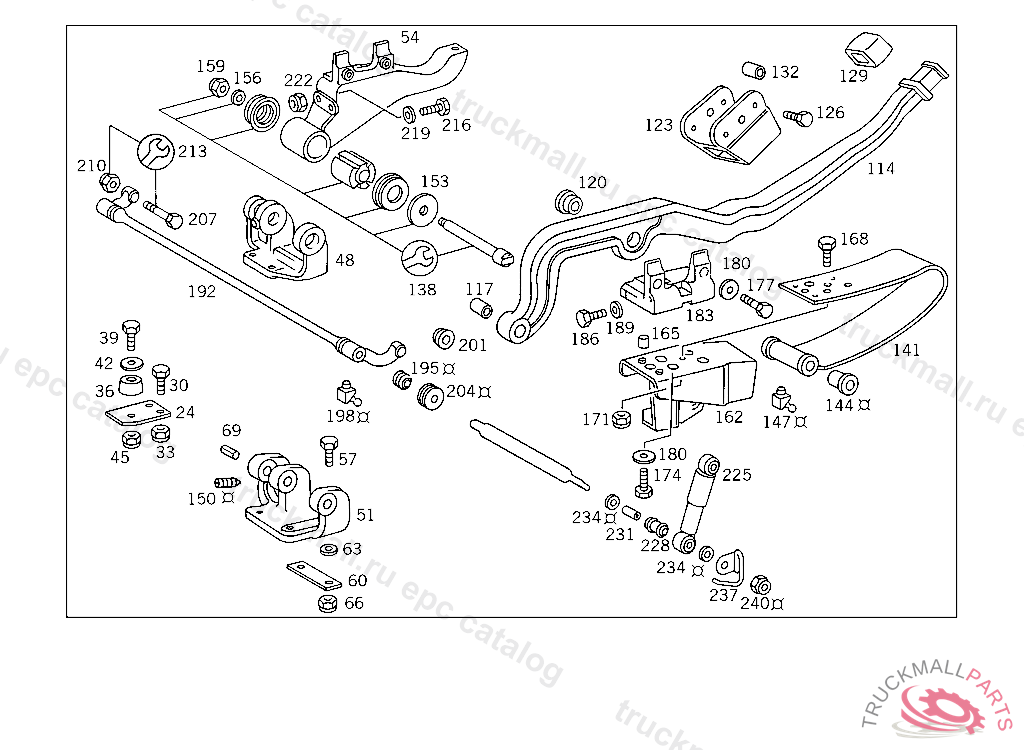

Поз.
Артикул
Описание
24
BRACKET BUFFER
30
SCREW , Replaced By: N308676012026
30
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
30
SCREW CONSOLE TO SIDE MEMBER
33
NUT SUPPORT TO SIDE MEMBER
36
MOUNTING (RUBBER BUFFER)
39
SCREW BRACKET TO CROSS CONNECTION STRUT
39
SCREW , Replaced By: N304017008034
42
WASHER , Replaced By: N009021008213
42
WASHER BRACKET TO LEFT SIDE MEMBER
45
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
45
NUT , Replaced By: N913004008001
48
MOUNTING , Replaced By: A6558910420
48
MOUNTING , Replaced By: A6558910320
48
MOUNTING RIGHT SIDE MEMBER
48
MOUNTING LEFT SIDE MEMBER
48
MOUNTING RIGHT SIDE MEMBER
48
MOUNTING LEFT SIDE MEMBER
48
MOUNTING CAB,LEFT
51
MOUNTING CAB,LEFT
51
MOUNTING LEFT SIDE MEMBER
51
MOUNTING CAB,LEFT
51
MOUNTING CAB, RIGHT
51
MOUNTING CAB, RIGHT
54
MOUNTING CAB,LEFT
54
MOUNTING LEFT SIDE MEMBER
54
MOUNTING CAB, RIGHT
54
MOUNTING RIGHT SIDE MEMBER
57
SCREW MOUNTING TO CONSOLE M 14X35
57
SCREW CONSOLE TO FRAME
57
SCREW MOUNTING TO CONSOLE M 14X55
57
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
57
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
57
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
57
SCREW , Replaced By: N308676016020
57
SCREW , Replaced By: N308676014008
57
SCREW , Replaced By: N308676014003
57
SCREW BRACKET TO SUPPORT
60
SHIM MOUNTING TO CONSOLE
63
WASHER SPARE WHEEL CARRIER
66
NUT STEERING SUPPORT TO FRAME
66
SCREW STRAP TO BRACKET
66
NUT , Replaced By: N910113014000
69
DOWEL PIN MOUNTING TO CONSOLE
114
LEVER (TILTING LEVER),CAB
114
LEVER (TILTING LEVER),CAB
114
LEVER (TILTING LEVER),CAB
117
BUSHING TILTING LEVER
117
BUSHING TILTING LEVER
120
BUSHING ON TOGGLE LEVER,FOR HYDRAULIC CYLINDER
123
MOUNTING CAB TILTING LEVER
123
MOUNTING CAB TILTING LEVER
126
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
126
SCREW , Replaced By: N308676012012
129
BUFFER TILTING LEVER
132
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
132
BUSHING TILTING LEVER
138
REPAIR KIT CAB SUSPENSION,FRONT
141
SPRING CAB SUSPENSION,FRONT
144
BUSHING SPRING
147
GREASE NIPPLE FOR SPRING
150
HEADLESS SETSCREW FOR SPRING
153
WASHER BEARING BRACKET
156
WASHER TORSION BAR TO BEARING BRACKET
156
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
159
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
159
NUT COMBINATION CYLINDER TO BEARING BRACKET
162
MOUNTING SPRING AND STABILIZER,LEFT
162
MOUNTING SPRING AND STABILIZER,RIGHT
165
PIN
168
SCREW BRACKET TO CROSS CONNECTION STRUT
168
SCREW , Replaced By: N304017008034
171
NUT , Replaced By: N913004008001
171
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
174
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
177
SCREW MOUNTING TO CAB
180
WASHER SPARE WHEEL CARRIER
183
CONSOLE CAB SUSPENSION,FRONT RIGHT
183
CONSOLE CAB SUSPENSION,FRONT LEFT
186
SCREW LEFT AND RIGHT CONSOLES TO CAB
186
SCREW , Replaced By: N308676014020
186
SCREW , Replaced By: N308676012015
186
SCREW LEFT AND RIGHT CONSOLES TO CAB
186
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
189
WASHER LEFT AND RIGHT CONSOLES TO CAB
192
STABILIZER CAB SUSPENSION,FRONT
192
STABILIZER , Replaced By: A6528900104
195
JOINT BEARING
195
JOINT BEARING
198
GREASE NIPPLE FOR SPRING
201
SCREW PLUG STABILIZER
204
WASHER STABILIZER TO BEARING
207
SCREW STABILIZER TO BEARING
210
NUT BRACKET TO SIDE MEMBER
210
NUT , Replaced By: N910113014001
213
REPAIR KIT CAB FRONT SUSPENSION STABILIZER
216
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
216
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
216
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB M 14X45
216
SCREW , Replaced By: N308676012011
216
SCREW , Replaced By: N000961014064
216
SCREW , Replaced By: N308676012031
216
SCREW BRACKET TO SIDE MEMBER
219
WASHER , Replaced By: N000125015019
219
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
219
WASHER BRACKET TO SIDE MEMBER,5 703114
222
NUT , Replaced By: N910113014001
222
NUT BRACKET TO SIDE MEMBER
225
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
228
RUBBER MOUNTING
231
BUSHING
234
WASHER
234
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
237
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
240
NUT SUPPORT TO SIDE MEMBER
