Поз.
Артикул
Описание

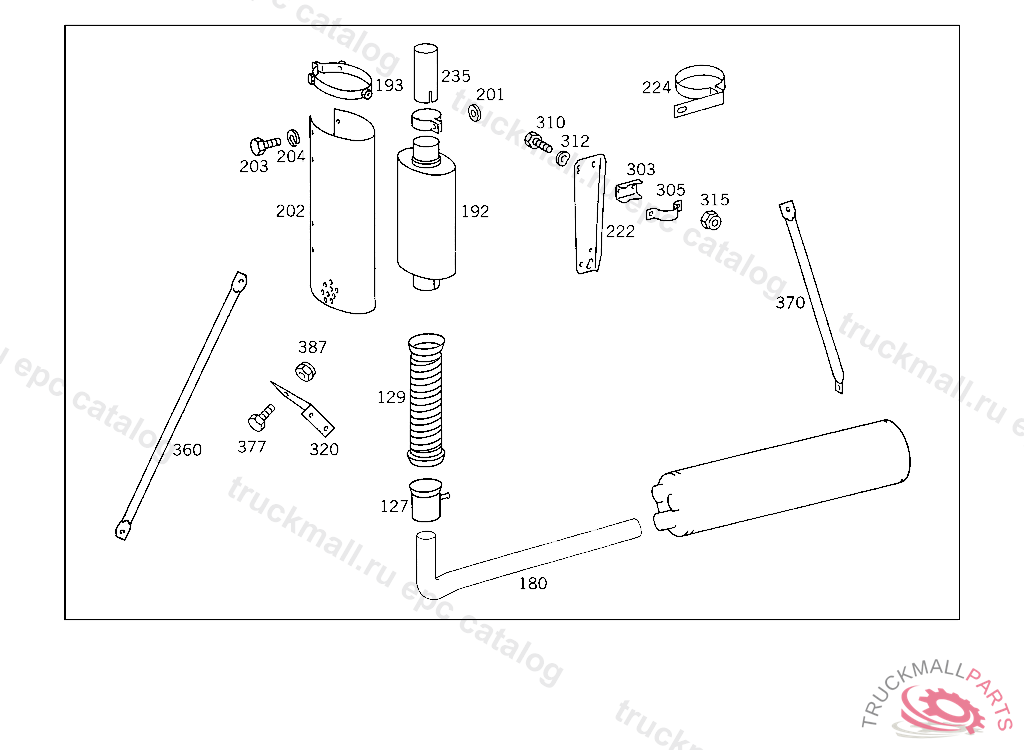

127
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
129
FLEXIBLE METAL TUBE CONNECTOR
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
180
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
180
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,K 035523
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL
180
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,K 035522
180
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
180
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
180
CONNECTOR FROM CONNECTION FITTING TO CAB REAR PANEL,5 741049
180
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
192
EXHAUST MUFFLER (POSTERIOR MUFFLER)
192
EXHAUST MUFFLER (POSTERIOR MUFFLER)
193
CLAMP HEAT SHIELD TO TAILPIPE
201
WASHER , Replaced By: N000125010532
201
WASHER RADIATOR TO RUBBER MOUNTING
202
PROTECTIVE PLATE (HEAT SHIELD)
202
PROTECTIVE PLATE , Replaced By: A6504920030
203
SCREW , Replaced By: N304017008008
203
SCREW CLAMP TO BRACKET AND TO PIPE
203
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
203
SCREW PROTECTIVE PLATE TO CLAMP
204
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
222
BRACKET BRACKET TO CROSS CONNECTION STRUT
224
BRACKET , Replaced By: A6524903440
224
BRACKET BRACKET TO CROSS CONNECTION STRUT
224
BRACKET BRACKET TO CAB CONSOLE
235
END PIECE (TAIL PIPE)
235
END PIECE BEHIND CAB,UPWARD
235
END PIECE , Replaced By: A6524929214
303
BASE PLATE , Replaced By: A6524920118
303
BASE PLATE BRACKET TO SIDE MEMBER
305
CLAMP EXHAUST PIPE TO BRACKET
305
CLAMP HEAT SHIELD TO TAILPIPE
305
CLAMP EXHAUST PIPE TO BRACKET
305
CLAMP , Replaced By: A4374920440
310
SCREW , Replaced By: N304017008034
310
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
310
SCREW BRACKET TO CROSS CONNECTION STRUT
312
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
312
SPRING WASHER , Replaced By: N000137008212
315
NUT , Replaced By: N913004008001
315
NUT , Replaced By: N910113014001
315
NUT BRACKET TO SIDE MEMBER
315
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
320
BRACKET TAIL PIPE
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
370
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
377
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
377
SCREW , Replaced By: N304017008027
387
NUT STRAP TO BRACKET
999
PROTECTIVE PLATE FUEL TANK
999
REAR EXHAUST PIPE
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
SUPPORT TAIL PIPE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE BEHIND CAB,UPWARD
999
END PIECE ,5 193595
999
END PIECE REAR EXHAUST PIPE,5 298310
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET FRONT EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
CONNECTOR BOTTOM,5 193595
999
BRACKET , Replaced By: A6164920241
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE , Replaced By: A6524926914
999
END PIECE BEHIND CAB,UPWARD
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE
999
BRACKET
999
END PIECE
999
BRACKET TAIL PIPE
999
BRACKET , Replaced By: A6524921441
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
BRACKET HEAT SHIELD TO FRAME
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
EXHAUST PIPE ,5 953233
999
END PIECE LEFT
999
END PIECE RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
INTERMEDIATE PIECE FROM CONNECTION FITTING TO CAB REAR PANEL,K 085783
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE (TAIL PIPE),5 5644795 758825
999
REAR EXHAUST PIPE VERTICAL,K 085783
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),5 758826
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CONNECTOR
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET TAIL PIPE
999
INTERMEDIATE PIECE
999
CLAMP EXHAUST PIPE
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
BRACKET TAIL PIPE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP , Replaced By: A6554920340
