Поз.
Артикул
Описание

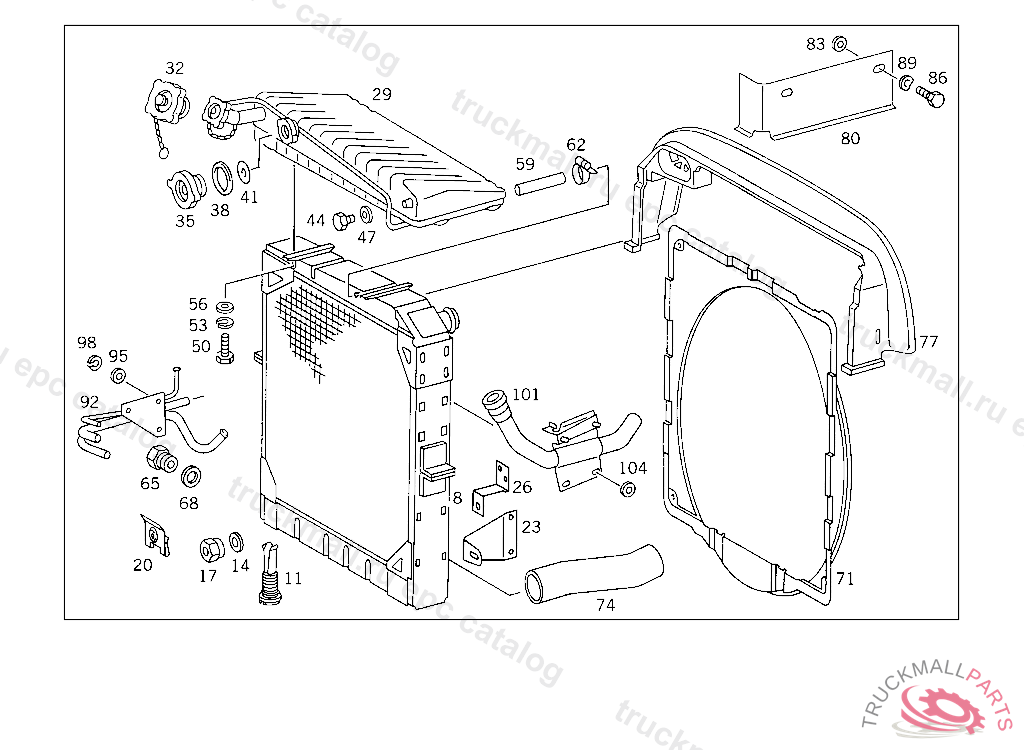

8
RADIATOR WATER
8
RADIATOR WATER
8
RADIATOR WATER
8
RADIATOR WATER,5 523343
8
RADIATOR WATER
8
RADIATOR , Replaced By: A6525014701
8
RADIATOR
8
RADIATOR
8
RADIATOR , Replaced By: A6525014801
8
RADIATOR WATER,K 020265
11
SCREW WATER DRAIN
14
SCREW PLUG WATER DRAIN
17
SEAL RING FUEL TANK
20
LOCK
23
BRACKET CHARGE AIR INTERCOOLER
26
BRACKET RIGHT
29
TANK EXPANSION TANK
29
TANK EXPANSION TANK
32
RADIATOR CAP FILLER NECK
32
RADIATOR CAP FILLER NECK
35
RADIATOR CAP CENTRAL
35
RADIATOR CAP CENTRAL
38
GASKET O.D., 52 MM
41
GASKET O.D., 37 MM
44
SCREW PLUG WATER DRAIN
44
SCREW PLUG , Replaced By: N007604014101
47
SEAL RING FUEL LINE TO FEED PUMP
50
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SCREW , Replaced By: N304017008016
53
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
WASHER EXHAUST MUFFLER TO STRAP
56
WASHER , Replaced By: N000125008443
59
HOSE OVERFLOW, EXPANSION TANK
62
CLAMP , Replaced By: N916017011000
62
CLAMP , Replaced By: N916017011001
62
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
SCREW PLUG , Replaced By: N007604014101
65
SCREW PLUG WATER DRAIN
68
SEAL RING FUEL LINE TO FEED PUMP
71
FAN SHROUD RADIATOR
71
FAN SHROUD RADIATOR
71
FAN SHROUD
74
HOSE FROM RADIATOR TO WATER PUMP,5 193594
74
HOSE FROM RADIATOR TO WATER PUMP,5 193595
74
HOSE FROM RADIATOR TO WATER PUMP,5 193594
74
HOSE FROM RADIATOR TO WATER PUMP,5 193595
74
HOSE FROM RADIATOR TO WATER PUMP
74
HOSE FROM RADIATOR OUTLET TO WATER PUMP
77
BOOT FAN SHROUD
77
BOOT RADIATOR
77
BOOT RADIATOR
80
BRACKET BOOT
83
WASHER , Replaced By: N000125006421
83
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
83
WASHER COMPRESSED AIR LINE TO BRACKET
86
SCREW , Replaced By: N304017006020
86
SCREW LICENSE PLATE TO BRACKET
89
WASHER , Replaced By: N009021006208
89
WASHER COMPRESSED AIR LINE TO BRACKET
92
LINE HEATING AND BREATHING
92
LINE (HEATING PIPE)
92
LINE (HEATING PIPE)
95
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
WASHER COMPRESSED AIR LINE TO BRACKET
98
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
101
PIPE ELBOW
101
PIPE ELBOW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 424343, Replaced By: A6555200406
101
PIPE ELBOW
101
PIPE ELBOW , Replaced By: A6455200106
104
WASHER COMPRESSED AIR LINE TO BRACKET
104
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
RADIATOR WATER
999
RADIATOR , Replaced By: A0005001103
