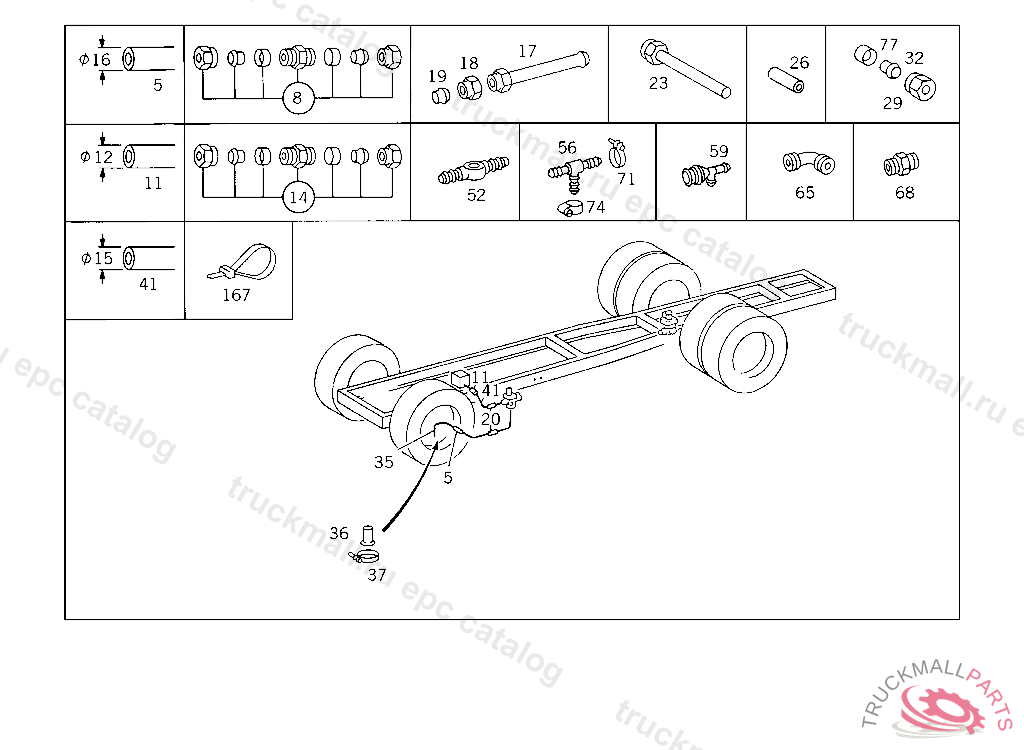

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872927
5
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
11
HOSE , Replaced By: A0009872827
14
FITTING TRAILER CONTROL VALVE
14
FITTING (PARTS KIT),LINE RUPTURE
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
17
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
17
LINE FROM PRESSURE REGULATOR TO SLIDE, LENGTH AVAILABLE 3000 MM
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
17
LINE , Replaced By: A3434293608
18
UNION NUT LINE CONNECTION
19
GLAND LINE CONNECTION
20
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
20
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
20
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
20
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
23
LINE PRESSURE REGULATOR,ANTI-FREEZE DEVICE
23
LINE PRESSURE REGULATOR,ANTI-FREEZE DEVICE,5 720506
26
SPACER TUBE PRESSURE REGULATOR,ANTI-FREEZE DEVICE
26
SPACER TUBE PRESSURE REGULATOR,ANTI-FREEZE DEVICE
29
UNION NUT LINE CONNECTION
32
SEAL CONE LINE CONNECTION
35
BREATHER PIPE PRESSURE REGULATOR,ANTI-FREEZE DEVICE,5 720506
35
BREATHER PIPE COMPRESSED AIR LINE TO EXHAUST MUFFLER
36
SLEEVE
37
CLAMP
37
CLAMP
41
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
41
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
41
HOSE , NOT USED
41
HOSE , Replaced By: A3859971682
52
BANJO UNION , Replaced By: A0019908288
52
BANJO UNION
56
T-FITTING BETWEEN THE LINES
56
T-FITTING BETWEEN THE LINES
59
T-FITTING BETWEEN THE LINES,5 939757
59
T-FITTING BETWEEN THE LINES
59
T-FITTING BETWEEN THE LINES
65
FITTING BETWEEN THE CONNECTIONS
65
FITTING BETWEEN THE CONNECTIONS
68
CONNECTION FITTING COMPRESSED AIR LINE TO BRACKET
71
CLAMP LINE CONNECTION
71
CLAMP LINE CONNECTION
71
CLAMP LINE CONNECTION
71
CLAMP LINE CONNECTION
71
CLAMP LINE CONNECTION
74
CLAMP , Replaced By: A0059970190
74
HOSE CLAMP LINE MOUNTING
74
CLAMP HOSE TO FITTING AND TO OIL TANK
74
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
77
SLEEVE LINE CONNECTION
77
SLEEVE
77
SLEEVE
77
SLEEVE
77
SLEEVE LINE CONNECTION
167
LOOM TIE LINE MOUNTING
167
LOOM TIE LINE MOUNTING 280 MM
999
MUFFLER BRAKE VALVE
999
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
999
LINE PRESSURE REGULATOR,ANTI-FREEZE DEVICE
999
LINE PRESSURE REGULATOR BREATHING 1950 MM
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW CLAMP TO BRACKET
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
CLAMP HOSE TO FLANGE AND TO VALVE
