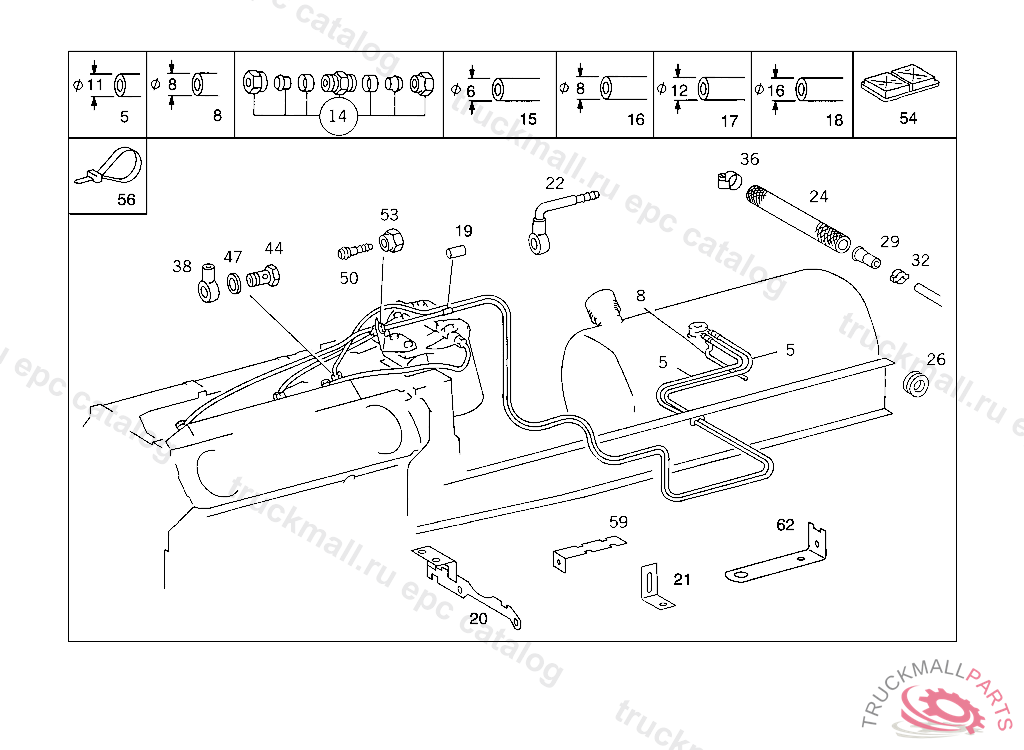

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
FITTING (PARTS KIT),LINE RUPTURE
15
PLASTIC PIPE RISING PIPE 4X6 MM
16
PLASTIC PIPE AERATION, ORDER BY THE METER
17
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
18
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
19
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
20
BRACKET FUEL LINE TO BELL HOUSING
21
BRACKET FUEL LINE TO BELL HOUSING
22
LINE FEED LINE AND RETURN LINE
24
HOSE LEAK LINE
26
GROMMET FOR PASSAGE OF LINE
29
SLEEVE FEED
32
CLIP LEAK LINE
36
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
36
CLAMP , Replaced By: N000000000665
38
BANJO UNION FEED
38
BANJO UNION , Replaced By: N000000000363
44
HOLLOW SCREW FUEL LINE TO FEED PUMP
44
HOLLOW SCREW FUEL LINE TO FEED PUMP
44
HOLLOW SCREW , Replaced By: N915036010108
47
SEAL RING FUEL LINE TO FEED PUMP
47
SEAL RING FUEL LINE TO FEED PUMP
50
FITTING RETURN
53
NUT. UNION NUT RETURN
54
PLATE CABLE HARNESS MOUNTING
56
LOOM TIE LINE MOUNTING
56
LOOM TIE LINE MOUNTING 280 MM
59
BRACKET AT ENGINE
62
BRACKET FUEL LINE TO FRAME
