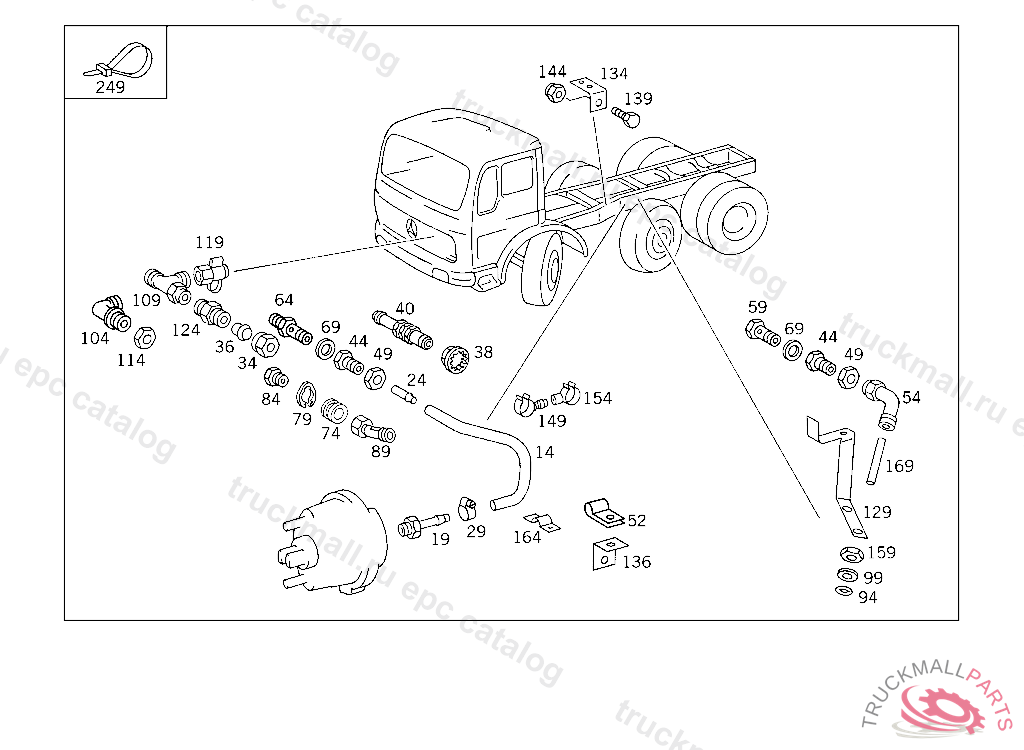

Поз.
Артикул
Описание
14
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
14
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
19
FITTING DIAPHRAGM CYLINDER,CONNECTION:
24
FITTING DIAPHRAGM CYLINDER,CONNECTION:
24
FITTING LEFT AND RIGHT BRAKE HOSES
29
CLAMP HOSE TO FITTING AND TO OIL TANK
34
UNION NUT LINE CONNECTION
34
UNION NUT LINE CONNECTION, Replaced By: N000000006239
36
GLAND , Replaced By: A0019901967
36
SEAL CONE LINE CONNECTION
38
LOCK REAR AXLE BRAKE HOSE,K 181360
40
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
40
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
44
ADAPTER FITTING LINE CONNECTION TO ENGINE
44
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
49
NUT BRACKET TO SIDE MEMBER
52
CLAMP BRAKE HOSE BRACKET
54
ELBOW FITTING DELIVERY LINE TO PUMP
59
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
64
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
69
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
74
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
79
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
84
SCREW. UNION SCREW LINE CONNECTION
89
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
94
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
94
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
99
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
99
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
FITTING , Replaced By: A0019903371
104
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
109
T-FITTING DIAPHRAGM CYLINDER
114
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
114
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
119
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
119
TEST CONNECTION
119
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
119
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
119
TEST CONNECTION BULKHEAD FITTING
124
FITTING DELIVERY LINE TO PUMP
129
BRACKET LEFT FRONT BRAKE HOSE, TO BE ADAPTED DURING ASSEMBLY
129
BRACKET RIGHT FRONT BRAKE HOSE, TO BE ADAPTED DURING ASSEMBLY
134
BRACKET COOLING WATER LINE TO TRANSMISSION
134
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
136
ANGLE LINE MOUNTING
139
SCREW BRACKET TO LEFT SIDE MEMBER
139
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
139
SCREW , Replaced By: N304017008027
144
NUT SUPPORT TO SIDE MEMBER
144
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
144
NUT , Replaced By: N913004008001
149
CLAMP BRAKE HOSE
154
CLAMP BRAKE HOSE
159
NUT BRACKET TO SIDE MEMBER
164
CLAMP 3/2-WAY SOLENOID VALVE
169
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
249
LOOM TIE LINE MOUNTING 280 MM
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
FITTING FRONT AND REAR AXLE BRAKE CYLINDERS, NOT USED
999
BRACKET LINE MOUNTING
999
BRACKET OIL LINE MOUNTING
999
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
BRACKET , Replaced By: A3464296040
999
BRACKET LINE MOUNTING
999
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
999
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
999
BRACKET FRONT AXLE,LEFT
999
BRACKET FRONT AXLE,RIGHT,5 727399
999
BRACKET AT BEARING BRACKET
999
BRACKET AT BEARING BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW CLAMP TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
