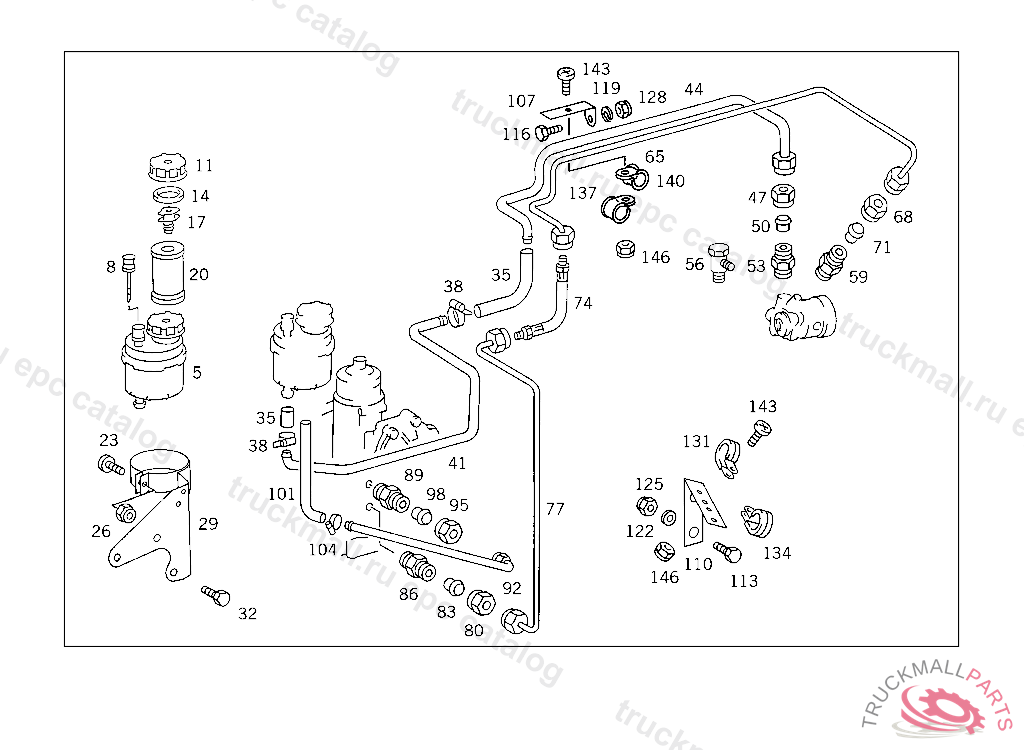

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004666202
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
11
FILLER CAP , Replaced By: A0004661268
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW BRACKET TO CROSS MEMBER M 6X35
26
NUT PUMP TO BRACKET
26
NUT , Replaced By: N913004006001
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
SCREW CENTRAL LOCK TO CAB M 10X16
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
35
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
38
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
38
CLAMP , Replaced By: N000000000667
41
LINE FROM OIL TANK TO HOSE
41
LINE FROM OIL TANK TO HOSE
41
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE , Replaced By: A0004291601
47
NUT LINE CONNECTION
47
UNION NUT LINE CONNECTION, Replaced By: N000000006243
50
SEAL CONE LINE CONNECTION
50
GLAND , Replaced By: A0019901267
53
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
56
ELBOW FITTING SUCTION LINE TO OIL PUMP
59
FITTING DELIVERY LINE TO PUMP
59
SCREW-IN FITTING DELIVERY LINE TO PUMP
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
68
UNION NUT LINE CONNECTION
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
71
SEAL CONE LINE CONNECTION
71
GLAND , Replaced By: A0019901967
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
83
SEAL CONE LINE CONNECTION
83
GLAND , Replaced By: A0019901967
86
FITTING DELIVERY LINE TO PUMP
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE RETURN, FROM STEERING TO OIL TANK
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
104
CLAMP HOSE TO FITTING AND TO OIL TANK
107
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
107
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
107
BRACKET , Replaced By: A6205244040
110
BRACKET DELIVERY AND SUCTION LINES TO FRAME
110
BRACKET DELIVERY AND SUCTION LINES TO FRAME
110
BRACKET , Replaced By: A6564660040
110
BRACKET , Replaced By: A6564660040
113
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
113
SCREW , Replaced By: N308676012026
113
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
119
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
122
WASHER
125
NUT SUPPORT TO SIDE MEMBER
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
134
CLAMP DELIVERY AND SUCTION LINES TO STEERING
134
CLAMP , Replaced By: A6739950001
134
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
137
CLAMP DELIVERY AND SUCTION LINES TO FRAME
137
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
140
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
143
SCREW CLAMP MOUNTING M 6X16
143
SCREW , Replaced By: N000000001146
143
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
143
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
143
SCREW , Replaced By: N000000001422
146
NUT PUMP TO BRACKET
146
NUT , Replaced By: N913004006001
999
PROTECTIVE CAP
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 016079
999
LINE FROM HIGH PRESSURE HOSE TO STEERING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING VALVE TO VALVE,K 025179
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
