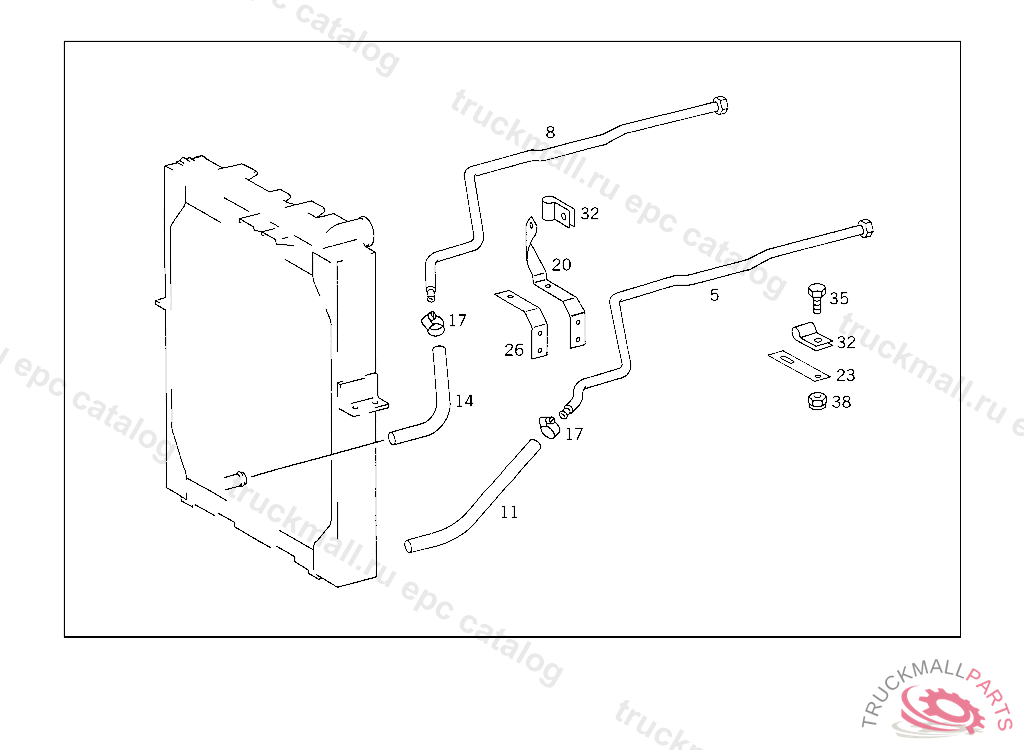

Поз.
Артикул
Описание
5
OIL PIPE FEED, OIL COOLER,K 093237K 131865
5
OIL PIPE FEED, OIL COOLER,5 564482K 093236
5
PIPE FEED, OIL COOLER
8
PIPE RETURN, OIL COOLER,K 131866
8
OIL PIPE RETURN, OIL COOLER,K 093237K 131865
8
OIL PIPE RETURN, OIL COOLER,K 093236
11
HOSE OIL COOLER CONNECTION,K 131865
11
HOSE FEED, OIL COOLER,K 131866
14
HOSE OIL COOLER CONNECTION,K 131865
14
HOSE RETURN, OIL COOLER,K 131866
17
CLAMP LINE MOUNTING
20
BRACKET BELL HOUSING
23
BRACKET AT CROSS MEMBER
26
BRACKET AT ENGINE
26
BRACKET AT ENGINE, FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHEK 131865
32
CLAMP FEED LINE TO THERMOSTAT
32
CLAMP , Replaced By: A3609950601
35
SCREW , Replaced By: N304017006020
35
SCREW , Replaced By: N304017008021
35
SCREW LICENSE PLATE TO BRACKET
35
SCREW PIPE CLAMP
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
NUT PUMP TO BRACKET
38
NUT , Replaced By: N913004006001
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
NUT , Replaced By: N913004008001
