Поз.
Артикул
Описание
5

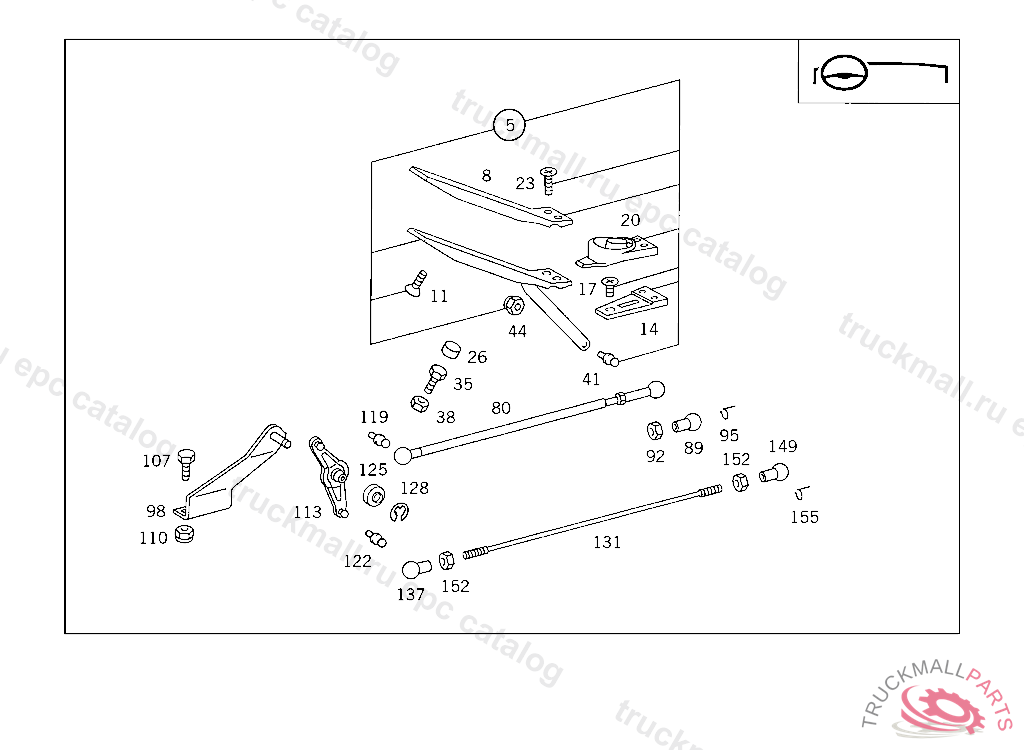

ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
35
SCREW VALVE TO BRACKET
38
NUT
41
BALL PIVOT LOAD SENSOR
44
NUT , Replaced By: N913004006001
44
NUT PUMP TO BRACKET
89
BALL SOCKET PULL ROD TO LEVER
92
NUT BALL PIVOT TO LEVER
95
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
107
SCREW END PIECE TO EXHAUST PIPE M 10X25
107
SCREW , Replaced By: N304017008034
107
SCREW BRACKET TO CROSS CONNECTION STRUT
110
NUT , Replaced By: N910113010000
110
NUT STRAP TO BRACKET
110
NUT , Replaced By: N913004008001
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
LEVER , Replaced By: A6153000628
113
LEVER INTERMEDIATE BEARING
119
BALL STUD. BALL PIVOT TOP B10X4,5 MM
122
BALL PIVOT BOTTOM B13X5 MM
125
COVERING INTERMEDIATE BEARING
128
LOCK PLATE INTERMEDIATE BEARING
131
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
137
BALL SOCKET ROD TO BALL PIVOT
149
BALL SOCKET ROD TO BALL PIVOT
152
NUT
155
SECURING CLIP. CIRCLIP
