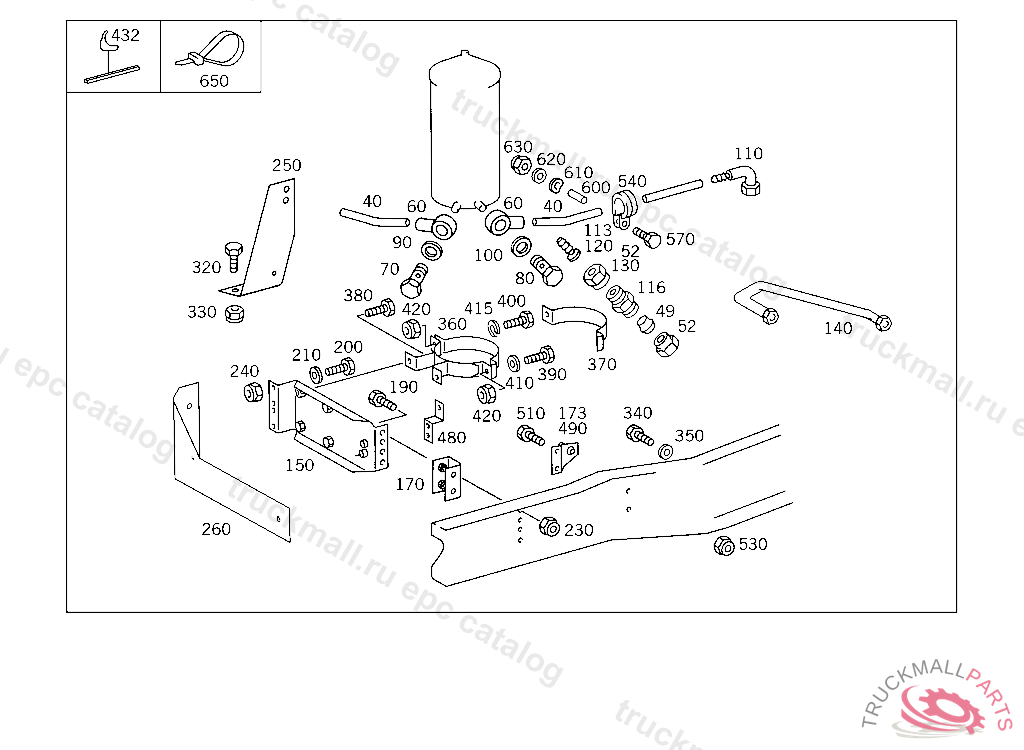

Поз.
Артикул
Описание
40
OIL LINE OIL LINE TO ENGINE
40
OIL LINE , Replaced By: A4221808820
40
OIL LINE FEED LINE
40
OIL LINE FEED LINE 12X2 MM, ORDER BY THE METER
40
OIL LINE FEED LINE 12X2 MM, ORDER BY THE METER
40
OIL LINE FEED LINE 12X2 MM, ORDER BY THE METER
40
OIL LINE , Replaced By: A0001870001, +001A0004760524, +001N915052008020
40
OIL LINE , Replaced By: A0001870001, +001A0004760524, +001N915052008020
40
OIL LINE , Replaced By: A0001870001, +001N915052008019, +001N915060008000
40
OIL LINE FEED LINE 12X2 MM, ORDER BY THE METER
40
OIL LINE , Replaced By: A0001870001, +001N915052008019, +001N915060008000
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915017010200, +001N915052008020
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915017010200, +001N915060008000
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915052008019, +001N915052010200
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915017010200, +001N915060008000
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915017010200, +001N915060008000
40
OIL LINE FEED LINE 12X2 MM, ORDER BY THE METER
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915052008019, +001N915052010200
40
OIL LINE , Replaced By: A0001870001, +001A0019974972, +001N915052008019, +001N915052010200
40
OIL LINE , Replaced By: A0001870001, +001N915052008019, +001N915052008020
40
OIL LINE , Replaced By: A0001870001, +001A0004760524, +001N915052008020
49
BALL-TYPE NIPPLE. SEAL CONE OIL LINES
52
NUT. UNION NUT RETURN
60
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
60
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
70
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
80
HOLLOW SCREW RESERVOIR TO SUPPORT
80
HOLLOW SCREW , Replaced By: N915036015201
90
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
100
SEAL RING VALVE TO VALVE,K 025179
110
ELBOW FITTING RETURN
110
ELBOW FITTING RETURN
113
FITTING SEPARATING POINT FEED LINE,K 108650
116
FITTING OIL LINES
116
FITTING , Replaced By: N915008008402
120
FITTING SEPARATING POINT FEED LINE,K 108650
120
FITTING RETURN
120
FITTING RETURN
120
CONNECTOR , Replaced By: A0019974972
130
NUT. UNION NUT RETURN
140
OIL LINE FROM DESCONNECTING POINT TO CONNECTION ENGINE RETURN LINE,K 240193
140
OIL LINE FROM DESCONNECTING POINT TO CONNECTION ENGINE RETURN LINE,5 534184
140
OIL LINE FROM DESCONNECTING POINT TO CONNECTION ENGINE RETURN LINE,5 534184
140
OIL LINE
140
OIL LINE FROM DESCONNECTING POINT TO CONNECTION ENGINE RETURN LINE,5 534184
140
OIL LINE FROM DESCONNECTING POINT TO CONNECTION ENGINE RETURN LINE,5 534184
140
OIL LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 093235, Replaced By: A4221807420, +001A4421871940, +001A4419905101
140
OIL LINE BETWEEN CRANKCASE AND SEPARATING POINT FEED LINE,K 108650
150
BRACKET OIL FILTER
150
BRACKET OIL FILTER
150
BRACKET OIL FILTER
150
BRACKET OIL FILTER,5 534184
150
BRACKET OIL FILTER,5 534184
150
BRACKET OIL FILTER,5 534184
150
BRACKET OIL FILTER,5 429123
150
BRACKET OIL FILTER,5 429123
150
BRACKET OIL FILTER,5 429123
150
BRACKET ,5 429122, Replaced By: A4221801040, +001A4221800840
170
BRACKET BRACKET TO SIDE MEMBER,5 429123
170
BRACKET BRACKET TO SIDE MEMBER,5 429123
173
BRACKET OIL LINE TO SUPPORT
190
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
190
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
190
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
190
SCREW , Replaced By: N910105014010
190
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
200
SCREW END PIECE TO EXHAUST PIPE M 10X25
210
WASHER RADIATOR TO RUBBER MOUNTING
210
WASHER , Replaced By: N000125010532
230
NUT STRAP TO BRACKET
230
NUT , Replaced By: N910113010000
230
NUT PUMP TO BRACKET
230
NUT , Replaced By: N913004006001
230
NUT SUPPORT TO SIDE MEMBER
230
NUT BRACKET TO SIDE MEMBER
230
NUT , Replaced By: N910113014001
240
NUT STRAP TO BRACKET
240
NUT , Replaced By: N910113010000
250
BRACKET BRACKET TO FRAME SIDE MEMBER
250
BRACKET BRACKET TO FRAME SIDE MEMBER,5 538196
250
BRACKET ,5 538195, Replaced By: A4221841840, +002N000961012097, +002N913004012008
250
BRACKET ,5 218088, Replaced By: A4221840640, +001A4221800271
250
BRACKET ,5 218088, Replaced By: A4221840740, +001A4221800271
250
BRACKET BRACKET TO FRAME SIDE MEMBER,5 538196
250
BRACKET ,5 2180895 538195, Replaced By: A4221841640, +002N000961012097, +002N913004012003
250
BRACKET ,5 218088, Replaced By: A4221840740, +001A4221800271
250
BRACKET BRACKET TO FRAME SIDE MEMBER,5 538196
250
BRACKET BRACKET TO FRAME SIDE MEMBER,5 538196
250
BRACKET ,5 2180895 538195, Replaced By: A4221841540, +002N000961012097, +002N913004012003
250
BRACKET ,5 218088, Replaced By: A4221840640, +001A4221800271
260
BRACKET BRACKET TO FRAME SIDE MEMBER
260
BRACKET BRACKET TO FRAME SIDE MEMBER,5 538196
260
BRACKET ,5 538195
320
SCREW EXHAUST PIPE TO SIDE MEMBER
320
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
320
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
320
SCREW , Replaced By: N308676012026
320
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
320
SCREW , Replaced By: N308676014020
330
NUT EXHAUST PIPE TO SIDE MEMBER
330
NUT SUPPORT TO SIDE MEMBER
330
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
330
NUT , Replaced By: N913023010002
330
NUT BRACKET TO SIDE MEMBER
330
NUT BRACKET TO SIDE MEMBER
330
NUT , Replaced By: N910113014001
340
SCREW SHACKLE TO TORSION BAR,5 904661
340
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 22X1.5X55
340
SCREW , Replaced By: N000961022028
340
SCREW BEARING BRACKET TO FRAME
350
WASHER SUPPORTING ARM TO CYLINDER CRANKCASE
360
CLAMPING BRACKET OIL FILTER TO BRACKET,5 218089
360
CLAMPING BRACKET OIL FILTER TO BRACKET,5 218089
360
CLAMPING BRACKET ,5 218088, Replaced By: A4221800271, +001A4221841540
360
CLAMPING BRACKET ,5 218088, Replaced By: A4221800271, +001A4221841540
360
CLAMPING BRACKET OIL FILTER TO BRACKET
370
STRAP OIL FILTER TO BRACKET
370
STRAP OIL FILTER TO BRACKET
370
STRAP OIL FILTER TO BRACKET
380
SCREW MOUNTING TO CONSOLE
380
SCREW BRACKET TO CAB CONSOLE,K 035197
390
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
390
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
400
SCREW BRACKET TO SIDE MEMBER
400
SCREW BRACKET TO CROSS MEMBER M 8X45
400
SCREW , Replaced By: N304017008040
400
SCREW BRACKET TO TRANSMISSION
400
SCREW STRUT TO CONSOLE
400
SCREW , Replaced By: N308676012038
400
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
400
SCREW , Replaced By: N308676012012
400
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
400
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
400
SCREW , Replaced By: N308676012026
410
WASHER BRACKET TO SIDE MEMBER
410
WASHER BRACKET TO SIDE MEMBER
410
WASHER LEAF SPRING TO STRUT
410
WASHER LEAF SPRING TO STRUT
415
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
415
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
420
NUT SUPPORT TO SIDE MEMBER
420
NUT STRAP TO BRACKET
420
NUT , Replaced By: N910113010000
420
NUT SUPPORT TO SIDE MEMBER
432
EDGE GUARD SECTION HIGH PRESSURE HOSE
432
EDGE GUARD SECTION , Replaced By: A9416950589
432
EDGE GUARD SECTION , Replaced By: A9416950289
480
BRACKET OIL LINES
480
BRACKET OIL LINES
490
BRACKET OIL LINE TO SUPPORT
510
SCREW BRACKET TO SIDE MEMBER
510
SCREW , Replaced By: N304017010002
530
NUT STRAP TO BRACKET
530
NUT STRAP TO BRACKET
530
NUT , Replaced By: N910113010000
540
BRACKET OIL LINES
540
CLAMP. EXTENDABLE SPACER BREATHER LINE
540
CLAMP , Replaced By: A0009956665
540
CLAMP LINE MOUNTING
540
CLAMP CABLE HARNESS MOUNTING
540
CLAMP OIL LINE TO BRACKET
540
CLAMP , Replaced By: N000000001045
540
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
540
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
570
SCREW COVER PLATE TO COVER PLATE M 6 X 10
570
SCREW , Replaced By: N304017006034
570
SCREW END PIECE TO EXHAUST PIPE M 10X25
570
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
570
SCREW CONNECTOR
570
SCREW HOSE TO CAB M 6X25
570
SCREW HOSE TO CAB M 6X25
570
SCREW PUMP TO BRACKET
570
SCREW , Replaced By: N304017006016
570
SCREW AT FILTER BRACKET
570
SCREW COVER PLATE TO BRACKET
570
SCREW COVER PLATE TO BRACKET
600
SPACER TUBE OIL LINE TO BRACKET,K 093236
600
SPACER TUBE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1109910640
610
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
620
WASHER A 6,4 DIN 9021. WASHER OIL LINE TO BRACKET,K 093236
630
NUT STRAP TO BRACKET
630
NUT , Replaced By: N910113010000
630
NUT AT FILTER BRACKET
630
NUT AT FILTER BRACKET
630
NUT PUMP TO BRACKET
630
NUT , Replaced By: N913004006001
650
LOOM TIE LINE MOUNTING 280 MM
650
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET BRACKET TO FRAME SIDE MEMBER
999
BRACKET BRACKET TO FRAME SIDE MEMBER
999
SCREW BRACKET TO BRACKET, NOT USED
999
SCREW , Replaced By: A4419905201
