Главная
›
Mercedes
›
TRUCK
›
2031 A,2531/L,2038 A, 2044 LA,2553,2538
›
656.205
›

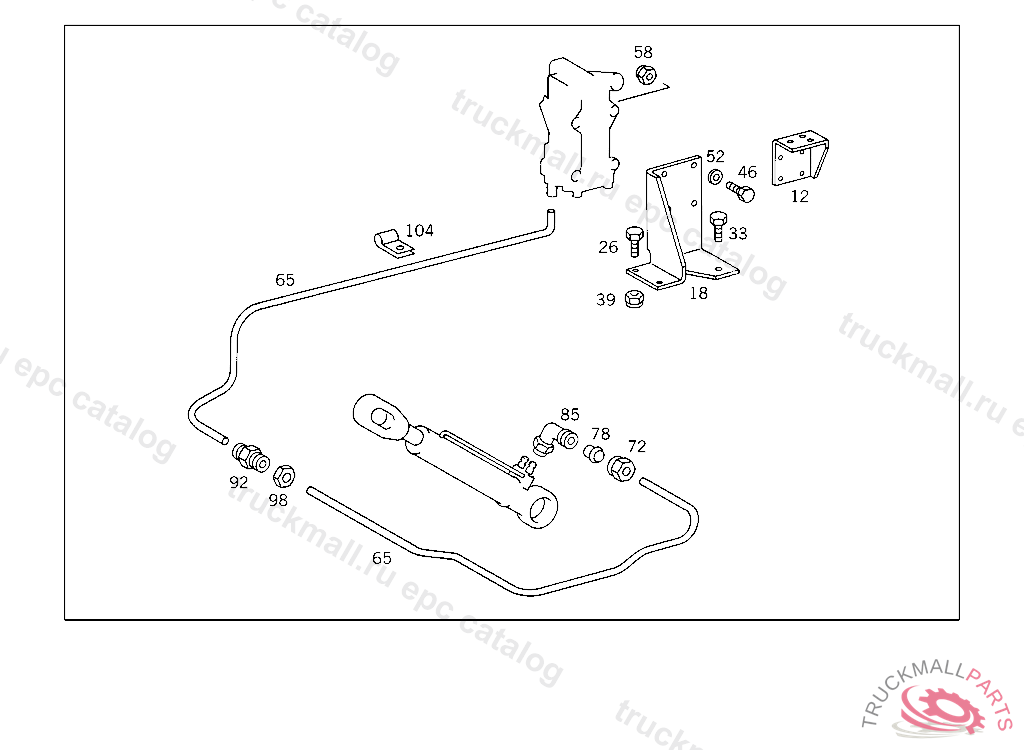

55 HYDRAULIC SYSTEM
›
001 CAB HYDR. TILTING SYSTEM
Mercedes N304035012002 - Гайка
2031 A,2531/L,2038 A, 2044 LA,2553,2538 656.205
55 HYDRAULIC SYSTEM - 001 CAB HYDR. TILTING SYSTEM
Поз.
Артикул
Описание
12
A6995532640
BRACKET HAND PUMP
18
A6255530640
BRACKET HAND PUMP
26
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
33
N304017010002
SCREW BRACKET TO SIDE MEMBER
33
N000933010129
SCREW , Replaced By: N304017010002
39
N910113010000
NUT STRAP TO BRACKET
39
N913004010008
NUT , Replaced By: N910113010000
46
N000933010260
SCREW HAND PUMP TO BRACKET
52
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
58
N910113010000
NUT STRAP TO BRACKET
58
N913004010008
NUT , Replaced By: N910113010000
65
A0004290001
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
72
N915017006100
UNION NUT
78
A0019901667
SEAL CONE
85
N000000006197
FITTING FROM PUMP TO CYLINDER
85
A0019909871
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
92
N003911006100
FITTING OIL LINE CONNECTION
98
N304035012002
NUT
98
N000936012011
NUT , Replaced By: N304035012002
98
N080705012003
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
104
A3609950101
CLAMP LINE MOUNTING
999
A6155530040
BRACKET HAND PUMP,5 942826
999
A6995501640
BRACKET HAND PUMP
