2031 A,2531/L,2038 A, 2044 LA,2553,2538
656.205
49 EXHAUST SYSTEM
001 AIR INTAKE FROM BEHIND CAB IL.3

Mercedes N000000005892 - Хомут 130 / 150 X 13

2031 A,2531/L,2038 A, 2044 LA,2553,2538 656.205

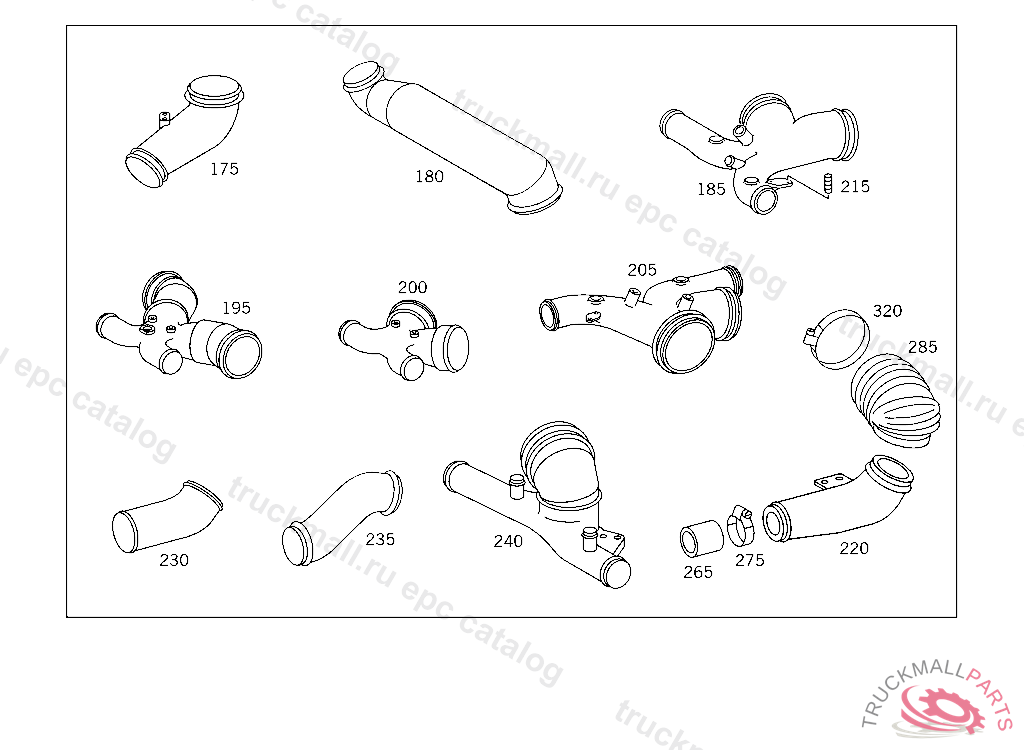

49 EXHAUST SYSTEM - 001 AIR INTAKE FROM BEHIND CAB IL.3

Поз.
Артикул
Описание
175
A6575200201
AIR INTAKE PIPE
180
A6995202901
AIR INTAKE PIPE
185
A6990903229
AIR INTAKE PIPE
185
A6990902329
AIR INTAKE PIPE
185
A6990901329
AIR INTAKE PIPE
185
A6990901429
AIR INTAKE PIPE
195
A6990901529
AIR INTAKE PIPE
200
A6990901729
AIR INTAKE PIPE
205
A4420900129
AIR INTAKE PIPE
215
N900421010000
THREADED INSERT
220
A6575200101
AIR INTAKE PIPE
220
A6575200001
AIR INTAKE PIPE
230
A6995201401
AIR INTAKE PIPE
235
A6995201801
AIR INTAKE PIPE
240
A6990903029
AIR INTAKE PIPE
265
N900271132005
HOSE INTAKE PIPE TO AIR CLEANER
265
N900271132005
HOSE INTAKE PIPE TO AIR CLEANER
265
A3669970283
SLEEVE AIR INTAKE PIPE TO ENGINE
265
A6995281382
HOSE AIR INTAKE PIPE TO ENGINE
265
A4229970183
SLEEVE , Replaced By: A3669970283
265
A6995280782
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6995281382
275
A0069972790
LOOM TIE LINE MOUNTING
275
N916026060000
CLAMP , Replaced By: A0069972790
285
A6455280182
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
285
A0010948482
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
285
A6455280182
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
285
A6455280082
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
320
N916018160000
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
320
N916017130000
CLAMP , Replaced By: N000000000678
320
N916017160000
CLAMP AIR INTAKE
320
N916017150000
CLAMP HOSE
320
N000000005892
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
320
N000000000678
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
999
A0805288740
BRACKET INTAKE PIPE TO SIDE MEMBER
