Главная
›
Mercedes
›
TRUCK
›
2544 L
›
658.470 DATACARD: CHASSIS-SA 5...../..
›
52 SHEET METAL,AIR INTAKE
›
001 SIDE REFLECTORES MOUNTING
Mercedes N009021005203 - Диск

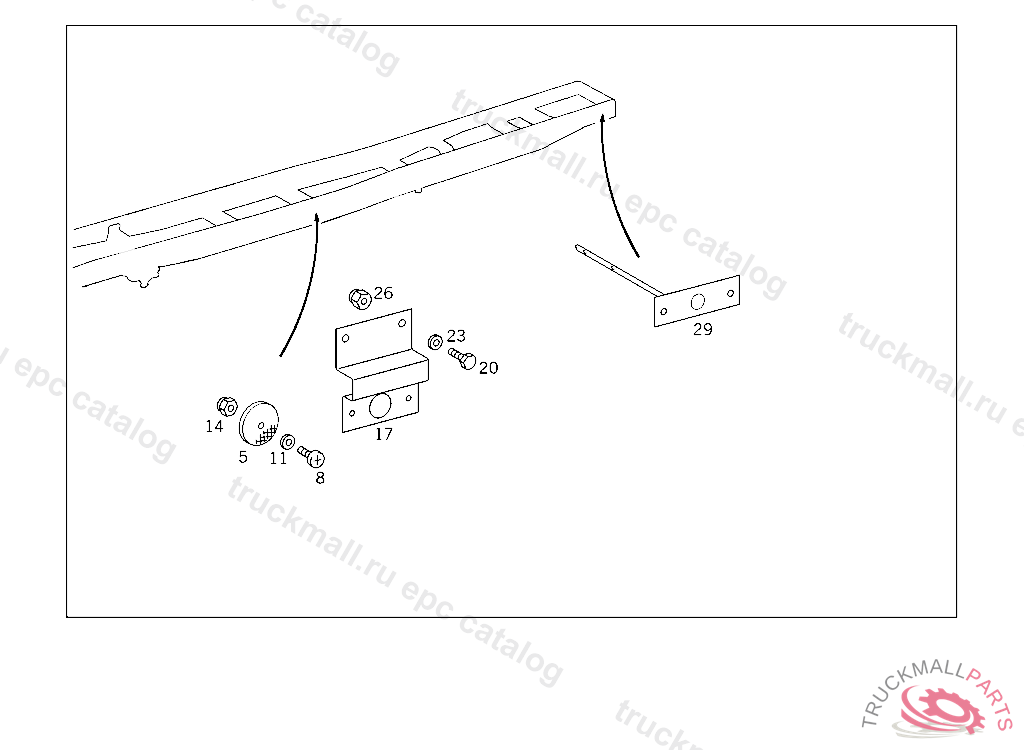

2544 L 658.470 DATACARD: CHASSIS-SA 5...../..
52 SHEET METAL,AIR INTAKE - 001 SIDE REFLECTORES MOUNTING
Поз.
Артикул
Описание
5
A0005443905
REFLECTOR FENDER
5
A0005443505
REFLECTOR AMBER
8
N007985005175
SCREW HOOK TO BRACKET
11
N009021005203
WASHER HYDRAULIC LINE TO CAB
14
N913004005001
NUT TWO-WAY VALVE TO BRACKET
17
A6585270540
BRACKET BRACKET TO UNDERRUN PROTECTION
20
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
N000933008212
SCREW , Replaced By: N304017008016
20
N304017008021
SCREW PIPE CLAMP
20
N000933008147
SCREW , Replaced By: N304017008021
23
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
23
N000125008418
WASHER , Replaced By: N000125008443
26
N913004008004
NUT , Replaced By: N913004008001
29
A6585202341
BRACKET BRACKET TO REAR FENDER
29
A6585201741
BRACKET BRACKET TO REAR FENDER
