Mercedes N046234012006 - Кабель

2544 L 658.470 DATACARD: CHASSIS-SA 5...../..

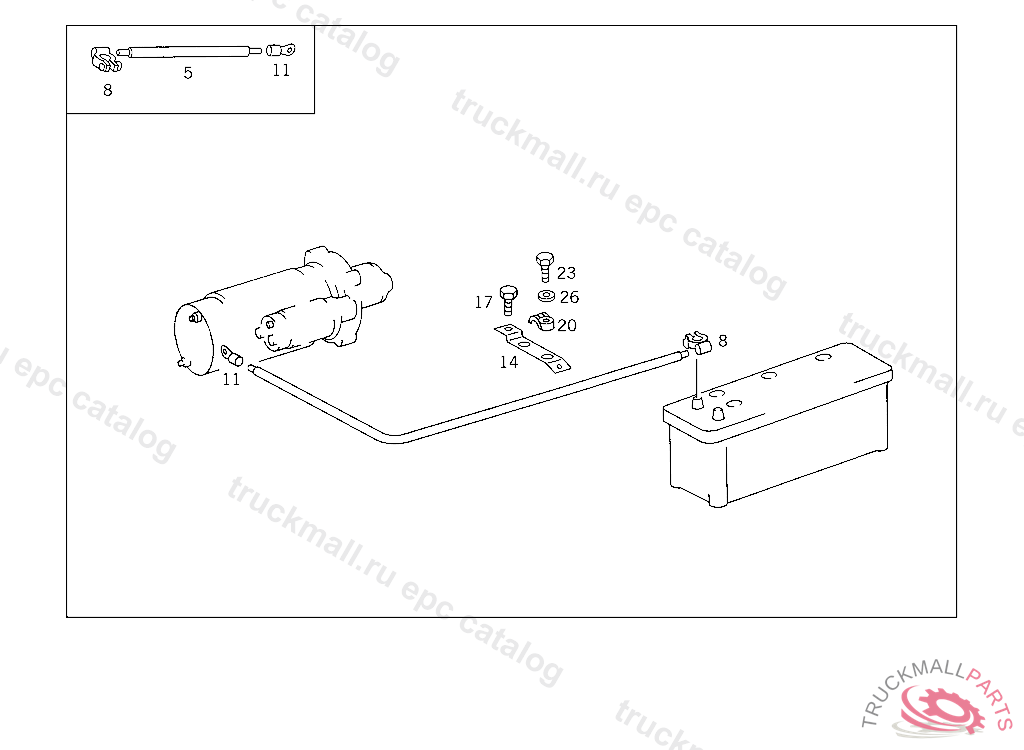

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 BATTERY CABLE-STARTER,MOUNTING

Поз.
Артикул
Описание
5
A6735460013
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
8
N072332013100
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
11
N046234012006
CABLE SHOE BATTERY CABLE 12-70 MM
14
A6565402073
BRACKET BATTERY CABLE TO ENGINE
17
N000933016077
SCREW BRACKET TO SUPPORT M 16X20
20
A6735460075
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
23
N304017006026
SCREW , Replaced By: N304017006026
23
N304017006026
SCREW , Replaced By: N304017006026
26
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
26
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
