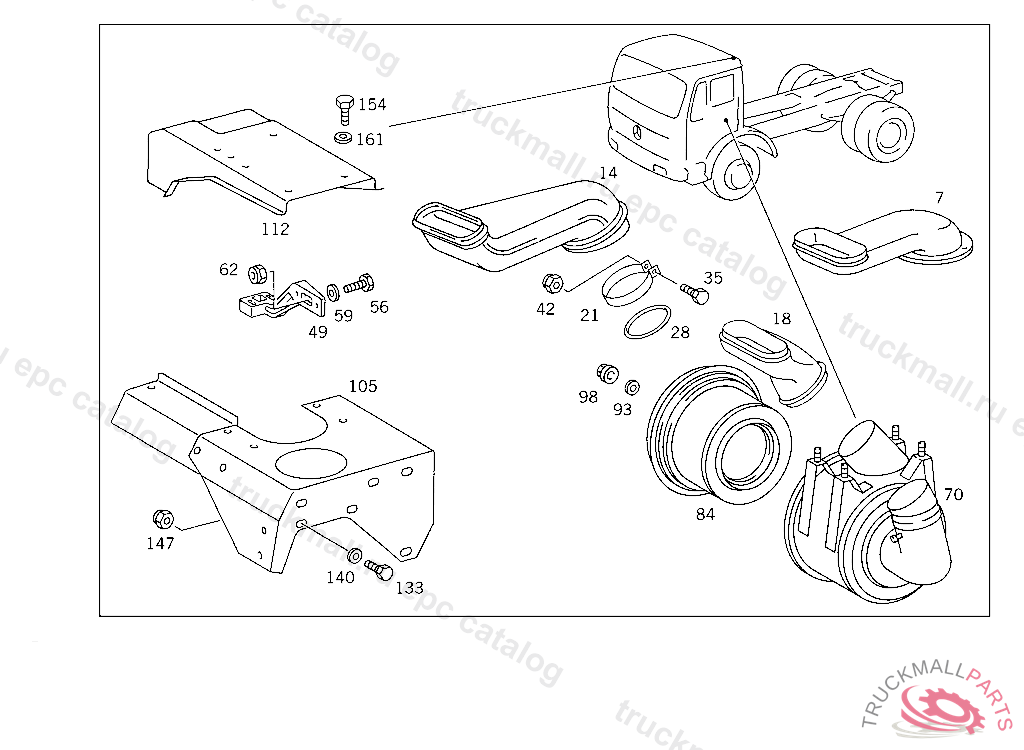

Поз.
Артикул
Описание
7
PIPE ELBOW AIR INTAKE,4 938204
14
PIPE ELBOW (INTAKE PIPE)
18
PIPE ELBOW (INTAKE PIPE)
21
CLAMP INTAKE PIPE TO AIR CLEANER
28
SEAL RING INTAKE PIPE TO AIR CLEANER
35
SCREW SUPPORT TO FENDER
35
SCREW , Replaced By: N304017008018
42
NUT , Replaced By: N913004008001
42
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
49
SUPPORT BOOT
49
SUPPORT BOOT
49
SUPPORT BOOT
49
SUPPORT AIR INTAKE PIPE
56
SCREW PIPE ELBOW TO BRACKET M 10X50
56
SCREW EXHAUST PIPE TO BRACKET
56
SCREW STRAP TO BRACKET
56
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
56
SCREW BRACKET TO SUPPORT
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW , Replaced By: N304017010030
56
SCREW , Replaced By: N304017010002
56
SCREW , Replaced By: N304017010053
59
WASHER , Replaced By: N000125010532
59
WASHER , Replaced By: N007349010007
59
WASHER HOLLOW RUBBER SPRING TO CAB,5 956657
59
WASHER STRUT TO CROSS MEMBER
59
WASHER RADIATOR TO RUBBER MOUNTING
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
70
AIR CLEANERMANN & HUMMEL
84
FILTER ELEMENT
93
WASHER FELT
98
NUT
98
NUT
105
SUPPORT ADDITIONAL WORK ON FRAME
112
SUPPORT AIR CLEANER,REAR
133
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
133
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
133
SCREW SUPPORT TO SIDE MEMBER M14X40
133
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
133
SCREW BRACKET TO CAB CONSOLE,K 035197
133
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
133
SCREW BRACKET TO SIDE MEMBER
133
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
133
SCREW CROSS MEMBER ON BEARING BRACKET
133
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
133
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
133
SCREW , Replaced By: N910105014010
133
SCREW , Replaced By: N308676014014
133
SCREW , Replaced By: N000961014158
133
SCREW , Replaced By: N308676012012
133
SCREW , Replaced By: N308676014020
133
SCREW , Replaced By: N308676014014
133
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
133
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
133
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
140
WASHER , Replaced By: A3859900440
140
WASHER , Replaced By: A3379900440
140
WASHER , Replaced By: N000125015019
140
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
140
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
140
SCREW BRACKET TO SIDE MEMBER
147
NUT STEERING SUPPORT TO FRAME
147
NUT , Replaced By: N910113014001
147
NUT , Replaced By: N910113014000
147
NUT BRACKET TO SIDE MEMBER
154
SCREW , Replaced By: N304017010002
154
SCREW , Replaced By: N308676012012
154
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
154
SCREW BRACKET TO SIDE MEMBER
161
WASHER STRUT TO CROSS MEMBER
161
WASHER , Replaced By: N007349010007
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
999
AIR CLEANER CYCLONE
999
EDGE GUARD SECTION , Replaced By: A0029873572
999
WASHER , Replaced By: A3859900440
999
SPACER TUBE , Replaced By: A6559910140
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
AIR INTAKE PIPE FROM AIR INTAKE PIPE TO CYCLONE
999
STAY AIR INTAKE PIPE
999
STRAP AIR INTAKE PIPE TO BRACKET
999
STAY AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
CLAMP BRACKET TO AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE
999
SUPPORT AIR INTAKE PIPE
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
CONSOLE CAB SUSPENSION,5 742148
999
CONSOLE CAB SUSPENSION
999
CONSOLE AIR INTAKE CASE
999
LOCKING MECHANISM CAB, RIGHT
999
SUPPORT , Replaced By: A6555202133
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
BRACKET AIR CLEANER,FRONT
999
BUFFER ,5 350513
999
LOCKING MECHANISM CAB, RIGHT, FOR USE WITH SHORT MERCEDES-BENZ CAB
999
LEVER COVER
999
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 431572, Replaced By: A6555200067
999
MOUNTING BOW , Replaced By: A6555280344
