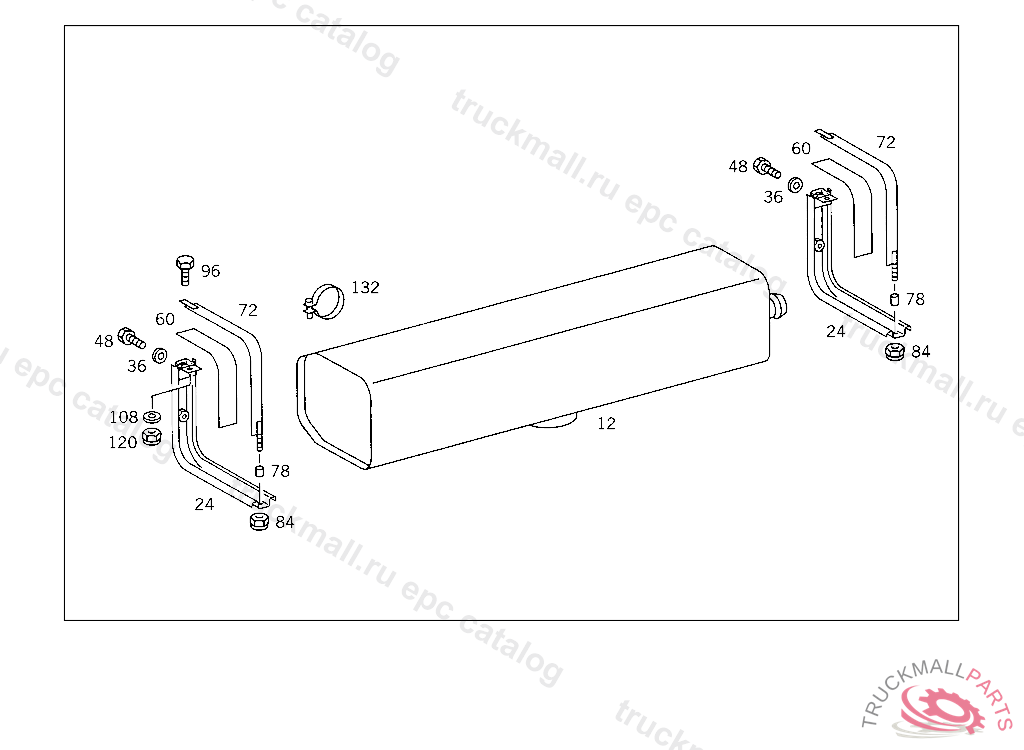

Поз.
Артикул
Описание
12
FUEL TANK55 L
12
FUEL TANK55 L
12
FUEL TANK , Replaced By: A6674703701
12
FUEL TANK , Replaced By: A6674703601
12
FUEL TANK55 L
12
FUEL TANK55 L
24
SUPPORT , Replaced By: A6674700642, +001A6674700240
24
SUPPORT FUEL TANK, 832014 N 000001 P 000001
36
WASHER RADIATOR TO RUBBER MOUNTING
48
SCREW STRUT TO CROSS MEMBER M 10X25
60
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
72
STRAP FUEL TANK TO SUPPORT, 832014 N 000001 P 000001
72
STRAP , Replaced By: A6674700240, +001A6674700642
78
SPACER TUBE , Replaced By: A4214210053
78
SPACER TUBE
84
NUT CROSS MEMBER TO SIDE MEMBERS
96
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
108
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
120
NUT STRAP TO BRACKET
132
CLAMP FROM VENT PIPE TO FILLER NECK
