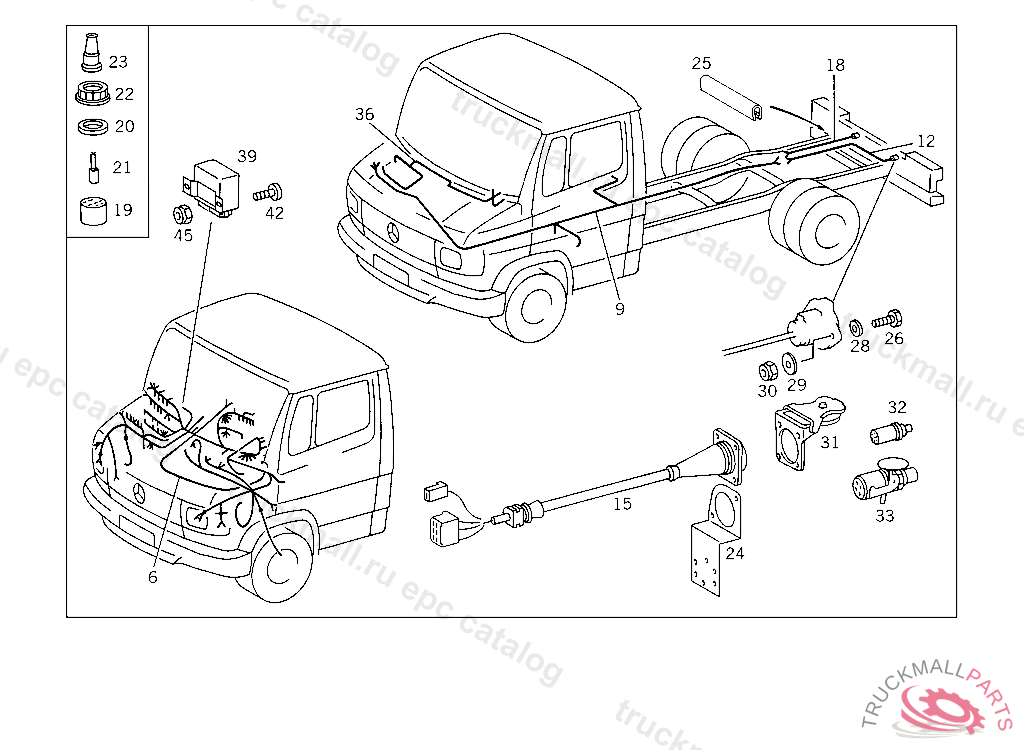

Поз.
Артикул
Описание
6
CABLE HARNESS CAB MAIN CABLE HARNESS, N 000000 P 052767
6
CABLE HARNESS CAB MAIN CABLE HARNESS, N 000001 P 052768
6
CABLE HARNESS CAB MAIN CABLE HARNESS, N 000001 P 052768
6
CABLE HARNESS CAB MAIN CABLE HARNESS, N 000000 P 055312
9
CABLE HARNESS FRAME MOUNTED CABLE HARNESS
9
CABLE HARNESS FRAME MOUNTED CABLE HARNESS
12
PLUG SOCKET FROM REAR JUNCTION BOX TO TRAILER PLUG SOCKET
15
ELECTRIC CABLE FROM REAR JUNCTION BOX TO TRAILER PLUG SOCKET
18
PLUG SOCKET FROM REAR JUNCTION BOX TO TRAILER PLUG SOCKET
18
PLUG SOCKET FROM JUNCTION BOX TO BACK-UP LAMP
19
PLUG SOCKET 12-POLE
20
INSERT
21
CONTACT PIN TO PLUG THE BORES
22
NUT
23
GROMMET
24
BRACKET , Replaced By: A6705440338
24
BRACKET TRAILER PLUG SOCKET TO SUPPORT
25
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
26
SCREW CABLE HARNESS MOUNTING
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW LICENSE PLATE TO BRACKET
28
WASHER EXHAUST MUFFLER TO STRAP
28
WASHER SWITCH TO FIRE WALL
29
WASHER HIGH PRESSURE HOSE TO BRACKET
29
WASHER , Replaced By: N009021008213
29
WASHER BRACKET TO LEFT SIDE MEMBER
30
NUT STRAP TO BRACKET
30
NUT HEATING PIPE TO BRACKET
31
CAP PLUG SOCKET
31
CAP PLUG SOCKET
32
PLUG TRAILER,7-POLE 24 V
33
PLUG TRAILER,12-POLE
36
ELECTRIC CABLE FROM SWITCH TO PLUG CONNECTION ON CAB
39
SENDER UNIT HAZARD WARNING LIGHT
39
SENDER UNIT HAZARD WARNING LIGHT
39
SENDER UNIT HAZARD WARNING LIGHT
42
SCREW , Replaced By: N000000001145
42
SCREW BRACKET TO COVERING
45
NUT HEATING PIPE TO BRACKET
