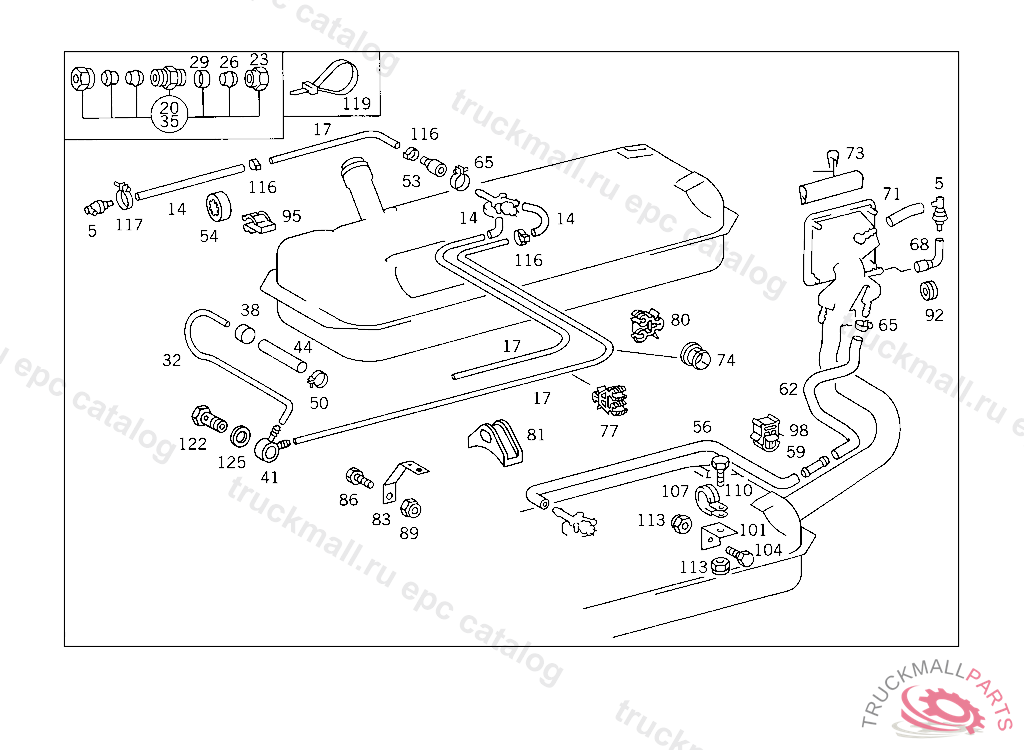

Поз.
Артикул
Описание
14
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
17
PLASTIC PIPE AERATION, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE
23
UNION NUT LINE CONNECTION
26
GLAND LINE CONNECTION
29
SLEEVE LINE CONNECTION
32
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
35
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
38
SLEEVE LEAK LINE
41
BANJO UNION FROM TANK TO PUMP,303383
41
BANJO UNION , Replaced By: A0009909288
44
HOSE LEAK LINE, ORDER BY THE METER
50
CLAMP LEAK LINE TO CONNECTOR AT ENGINE
54
RUBBER RING
65
CLAMP FROM VENT PIPE TO FILLER NECK
74
BUSHING , Replaced By: A0009973481
74
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
77
BRACKET FEED LINE AND RETURN LINE TO SIDE MEMBER
80
BRACKET PUMP TO FRAME SIDE MEMBER
116
LOOM TIE VENT VALVE TO FUEL TANK
122
HOLLOW SCREW FUEL LINE TO FEED PUMP
122
HOLLOW SCREW , Replaced By: N915036010108
125
SEAL RING FUEL TANK
999
INTERMEDIATE PIECE FEED LINE AND RETURN LINE,K 169122
999
CLIP LEAK LINE
999
FITTING , Replaced By: A0029905971
999
HOSE LEAK LINE
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
CLAMP , Replaced By: N000000000665
