Mercedes A3056000014 - ZB HALTER

O 345,EURO 2 671.000

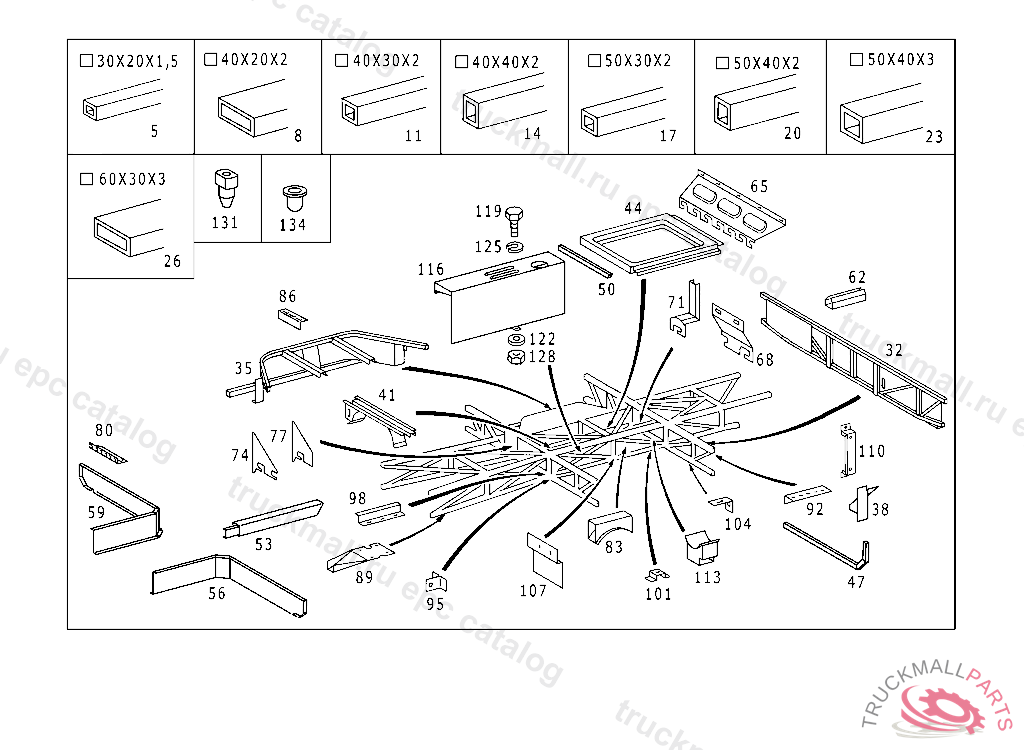

61 SUBSTRUCTURE - 155 SUBSTRUCTURE FRAMEWORK,CENTER,SOLO BUS IL. 1

Поз.
Артикул
Описание
5
HXB3739210129
8
HXB3736328215
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 632 82 15 RECTANGULAR TUBE 40 X 20 X 2,0 X 1715 MM
11
A6716930510
SUPPORT. RECTANGULAR TUBE40X30X2X2382MM, TO BE ADAPTED DURING ASSEMBLY
14
HXB3736126118
TUBE BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY XB373 612 61 18 RECTANGULAR TUBE 40 X 40 X 2,0 X 2386 MM
17
HXB3736122215
TUBE , TO BE ADAPTED DURING ASSEMBLY XB373 612 22 15 RECTANGULAR TUBE 50 X 30 X 2,0 X 2300 MM
20
HXB3736110734
23
A6716110021
26
A6716115921
32
A6716102116
35
A6716100106
41
A6716100523
44
A6716001141
62
A3276144634
65
A6716022114
65
A6716022014
68
A6716122024
71
A6716100000
74
A6716122824
77
A6716122924
83
HXB3736109030
86
A3056120824
BRACKET
89
A3276154114
92
A3276152714
95
A3056100936
BRACKET BEHIND REAR AXLE
98
A6716151214
101
A3056000014
BRACKET
104
A3016145014
BRACKET , Replaced By: A3014780040
107
A6716102700
110
A6716101500
110
A6716101600
116
A6718800205
119
N304017006000
SCREW FROM THERMOSTAT TO RADIATOR
122
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
125
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
128
N304032006000
NUT
