Mercedes A6718250695 - VORSCHALTGERAET

O 345,EURO 2 671.000

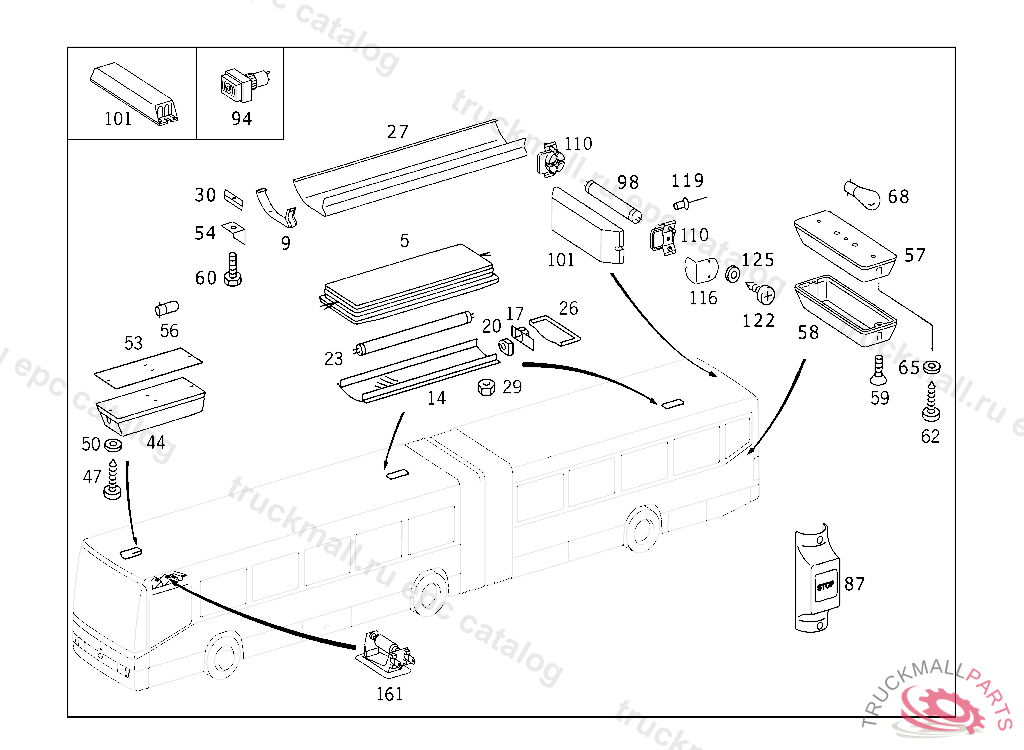

82 ELECTRICAL SYSTEM - 480 INTERIOR LAMP,PASSENGER COMMUNICATOR SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6718200501
5
A6718200601
5
A6718200001
5
A6718200301
14
A6718250010
14
A6718250110
17
A6718250395
17
A6718250095
20
A6718250082
20
A6718250182
23
A6718250295
23
A6718250195
26
A6718250057
29
A0039900251
NUT COVERING TO CAB FIRE WALL
44
A6718200101
47
N007981004254
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
50
N000125004311
WASHER , Replaced By: N000125004319
53
A6718210514
56
N072601024702
BULB , Replaced By: N072601024704
57
A6138200901
INTERIOR LAMP
57
HXB3738201601
58
HXB3738250010
59
N007988004106
SCREW
62
N000000000449
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
62
N007981003239
SHEET METAL SCREW , UP TO CHASSIS: 114.010 016428 114.015 013598 115.010 014491 115.015 011507 115.110 031296 115.115 013974
65
N000125003703
WASHER TAKE-UP DEVICE
68
N072601024702
BULB , Replaced By: N072601024704
87
A6718250006
98
HXB3738250495
98
HXB3738250595
101
A6718250695
101
HXB3738250895
101
HXB3738250995
110
A0008203065
110
A6718250282
116
HXB3738170932
119
N910002004131
122
N007981003243
SHEET METAL SCREW ELECTRIC CABLE MOUNTING
122
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
125
N000125004313
WASHER VALVE TO BRACKET,5 602406
125
N000125004319
WASHER BRACKET TO SUPPORT
125
N000000003718
WASHER ATTACHMENT OF ELECTRIC LEAD AND GROUND STRAP ON ALTERNATOR
999
A6718250382
999
N910105006002
HEXAGON HEAD BOLT
