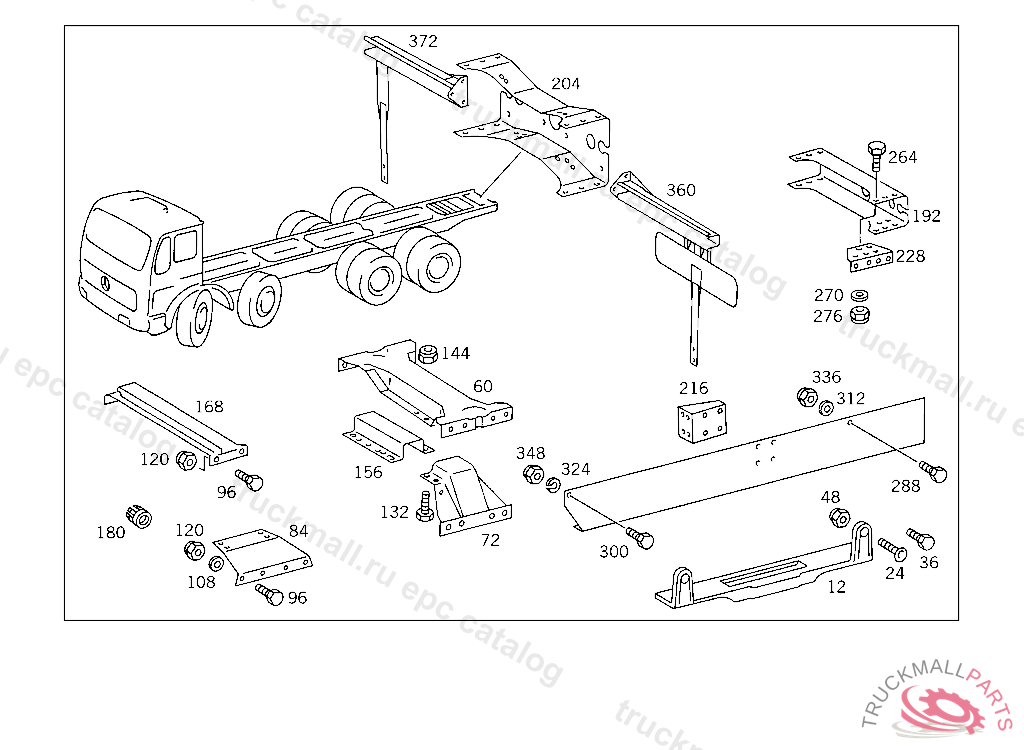

Поз.
Артикул
Описание
12
PLATE REAR AXLE
24
SCREW STOP TO SIDE MEMBER
24
SCREW STOP TO SIDE MEMBER M 12X60
36
SCREW FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER M 12X55
48
NUT END PIECE TO EXHAUST PIPE
60
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
60
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY FROM 08.95
60
CROSS MEMBERNO.5A
60
CROSS MEMBERNO.5A
60
CROSS MEMBERNO.5A
60
CROSS MEMBERNO.3A
60
CROSS MEMBERNO.4A
60
CROSS MEMBERNO.4A
60
CROSS MEMBERNO.5A
60
CROSS MEMBERNO.3B
72
STRUT LEFT AND RIGHT
72
STRUT LEFT AND RIGHT
72
STRUT LEFT AND RIGHT
72
STRUT LEFT AND RIGHT
84
REINFORCEMENT LEFT AND RIGHT
84
REINFORCEMENT LEFT AND RIGHT
84
STRUT LEFT AND RIGHT
96
SCREW , Replaced By: N308676014012
96
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
96
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
96
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
96
SCREW SUPPORT TO SIDE MEMBER M 14X45
96
SCREW SUPPORT TO SIDE MEMBER M 14X45
96
SCREW , Replaced By: A9429901304
96
SCREW APPARATUS SUPPORT TO FRAME
96
SCREW APPARATUS SUPPORT TO FRAME
96
SCREW APPARATUS SUPPORT TO FRAME
96
SCREW APPARATUS SUPPORT TO FRAME
108
WASHER , Replaced By: N000125015019
108
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
108
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
108
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
108
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
120
NUT , Replaced By: N910113014000
120
NUT STEERING SUPPORT TO FRAME
120
NUT STEERING SUPPORT TO FRAME
120
NUT STEERING SUPPORT TO FRAME
120
NUT STEERING SUPPORT TO FRAME
120
NUT STEERING SUPPORT TO FRAME
120
NUT STEERING SUPPORT TO FRAME
132
SCREW , Replaced By: A0029908201
132
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
132
SCREW , Replaced By: N308676012013
132
HEXAGON HEAD BOLT , Replaced By: A0029902704
144
NUT , Replaced By: N910113012003
144
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
156
REINFORCEMENT CROSS MEMBER
168
SUPPORT SPARE WHEEL HOIST,4 179002
180
BUSHING SPARE WHEEL HOIST,4 179002
192
CROSS MEMBER (REAR CROSS MEMBER)
192
CROSS MEMBER (REAR CROSS MEMBER)
192
CROSS MEMBER (REAR CROSS MEMBER)
204
CROSS MEMBER , Replaced By: A6233100146
204
CROSS MEMBER (REAR CROSS MEMBER), TO BE ADAPTED DURING ASSEMBLY
204
CROSS MEMBER (REAR CROSS MEMBER), TO BE ADAPTED DURING ASSEMBLY
216
STIFFENING (REAR CROSS MEMBER)
228
ANGLE REAR CROSS MEMBER,RIGHT
228
ANGLE REAR CROSS MEMBER,RIGHT
228
ANGLE REAR CROSS MEMBER,LEFT
228
ANGLE REAR CROSS MEMBER,LEFT
264
SCREW , Replaced By: N308676014012
264
SCREW , Replaced By: A9429901304
264
SCREW APPARATUS SUPPORT TO FRAME
264
SCREW APPARATUS SUPPORT TO FRAME
264
SCREW APPARATUS SUPPORT TO FRAME
264
SCREW SUPPORT TO SIDE MEMBER M 14X45
270
WASHER , Replaced By: N000125015019
270
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
276
NUT , Replaced By: N910113014000
276
NUT STEERING SUPPORT TO FRAME
276
NUT STEERING SUPPORT TO FRAME
276
NUT STEERING SUPPORT TO FRAME
288
SCREW , Replaced By: N308676014012
288
SCREW , Replaced By: A9429901304
288
SCREW SUPPORT TO SIDE MEMBER M 14X45
288
SCREW APPARATUS SUPPORT TO FRAME
300
SCREW , Replaced By: N308676016007
300
SCREW REINFORCEMENT ANGLE TO SIDE MEMBER M 16X95
300
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
300
SCREW , Replaced By: N308676016014
300
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
312
WASHER , Replaced By: N000125015019
312
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
324
LOCK WASHERROCKINGER TYP 59 G140,59 G150
336
NUT STEERING SUPPORT TO FRAME
336
NUT , Replaced By: N910113014000
348
NUT , Replaced By: N910113016001
348
NUT CONSOLE TO SUPPORT
360
BRACKET LEFT TAIL LAMP
372
BRACKET RIGHT TAIL LAMP
