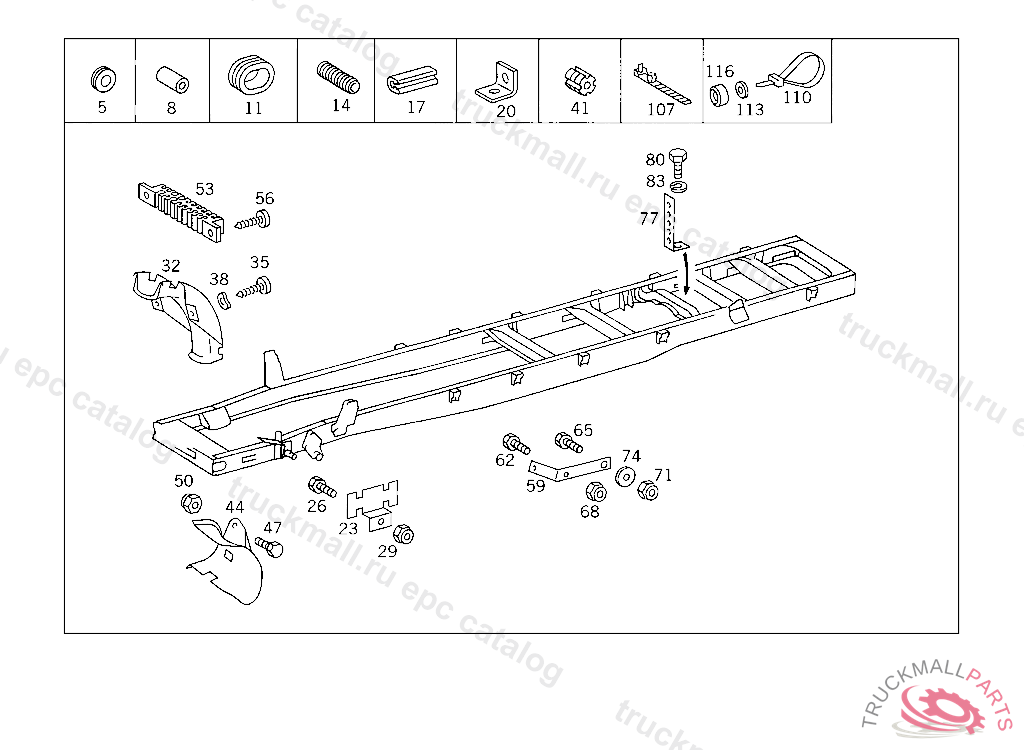

Поз.
Артикул
Описание
5
GROMMET CABLE HARNESS THRU SIDE MEMBER
8
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
11
GROMMET FOR PASSAGE OF LINE
11
GROMMET BATTERY CABLE THRU SIDE MEMBER
14
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
17
EDGE GUARD SECTION , Replaced By: A0029873572
17
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
17
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
23
BRACKET BREATHER LINE TO SIDE MEMBER
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW , Replaced By: N304017008034
29
NUT , Replaced By: N913004008001
32
BRACKET COMPRESSED AIR LINE TO CAB
35
SHEET METAL SCREW BRACKET TO CAB
38
SPRING WASHER LICENSE PLATE TO BRACKET
44
BRACKET CABLE HARNESS
44
BRACKET LEFT
44
BRACKET , Replaced By: A6735402673
47
SCREW END PIECE TO EXHAUST PIPE M 10X25
50
NUT , Replaced By: N910113010000
50
NUT STRAP TO BRACKET
50
NUT STRAP TO BRACKET
53
CLAMPING RAIL COMPRESSED AIR LINES,5 181196 TO BE ADAPTED DURING ASSEMBLY
56
SHEET METAL SCREW BRACKET TO FLOOR PLATE
56
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
59
BRACKET LINE MOUNTING
59
BRACKET ,5 177249, Replaced By: A6734291840, +002A6739901040, +002N000961012097, +002N913004012008
62
SCREW , Replaced By: N304017008021
62
SCREW PIPE CLAMP
62
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
62
SCREW , Replaced By: N304017008027
65
SCREW , Replaced By: N308676012026
65
SCREW BRACKET TO FRAME SIDE MEMBER
68
NUT , Replaced By: N913004008001
71
NUT END PIECE TO EXHAUST PIPE
71
NUT SUPPORT TO SIDE MEMBER
74
WASHER BRACKET TO FRAME
77
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
80
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
80
SCREW , Replaced By: N304017008039
83
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
107
LOOM TIE , Replaced By: A1149970590
107
LOOM TIE
110
LOOM TIE LINE MOUNTING
110
LOOM TIE LINE MOUNTING 280 MM
113
WASHER EXHAUST MUFFLER TO STRAP
113
WASHER , Replaced By: N000125008443
116
WASHER , Replaced By: A3609902340
116
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
