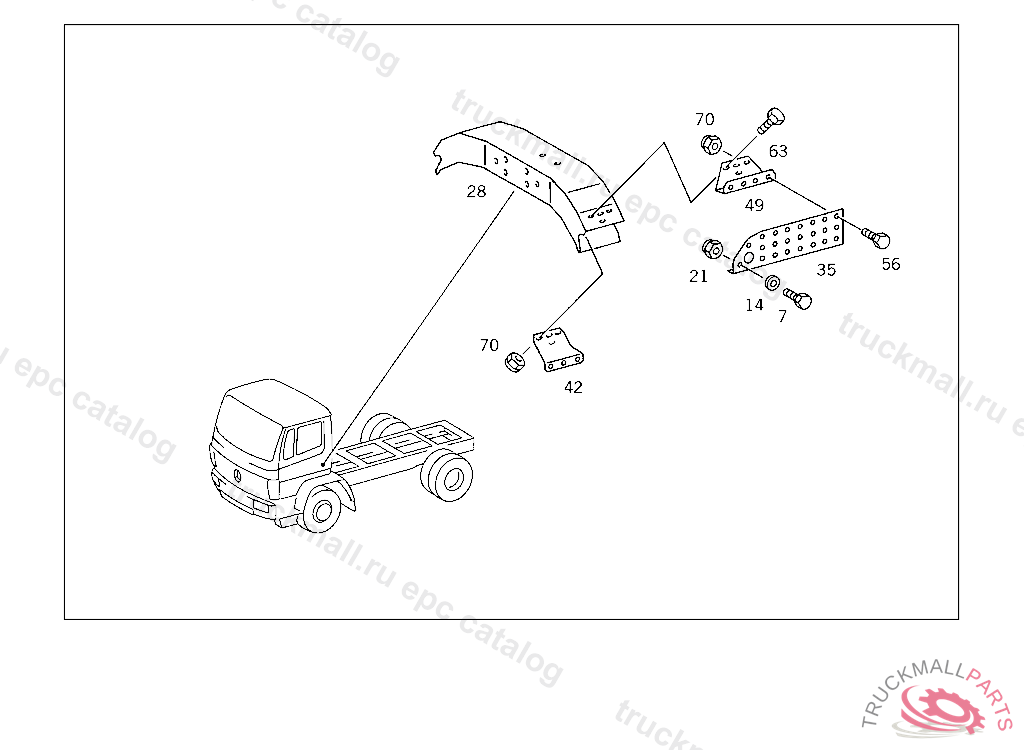

Поз.
Артикул
Описание
7
SCREW BRACKET TO FRAME M 12X35
14
WASHER BRACKET TO FRAME
21
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
21
NUT , Replaced By: N910113012003
28
CROSS MEMBER ,5 519078, Replaced By: A6753120011, +001A6753112260, +001A6753112360, +001A6753112383, +001A6733121152, +001A6733121252, +008N000961012052, +006N000961012151, +014N913004012008
28
CROSS MEMBER TRANSMISSION,5 519079
28
CROSS MEMBER TRANSMISSION,5 519079
28
CROSS MEMBER TRANSMISSION,5 519079
35
REINFORCEMENT LEFT
35
REINFORCEMENT RIGHT
35
REINFORCEMENT RIGHT
35
REINFORCEMENT RIGHT
35
REINFORCEMENT LEFT
35
REINFORCEMENT LEFT
42
REINFORCEMENT LEFT
42
REINFORCEMENT RIGHT
42
REINFORCEMENT LEFT
42
REINFORCEMENT RIGHT,5 519079
49
ANGLE LEFT
49
ANGLE LEFT
49
ANGLE LEFT,5 519078
49
ANGLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6733121052
49
ANGLE , Replaced By: A6733121052
49
ANGLE LEFT
56
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
56
SCREW , Replaced By: N308676012012
56
SCREW , Replaced By: N304017010040
56
SCREW STRUT TO CROSS MEMBER M 10X25
63
SCREW CONNECTOR TO REAR SHIFTING ROD
63
SCREW CONSOLE TO SIDE MEMBER
63
SCREW , Replaced By: N304017010047
70
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
70
NUT SUPPORT TO SIDE MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
BRACKET PROPELLER SHAFT,5 474771
999
CROSS MEMBER , Replaced By: A6753120011
